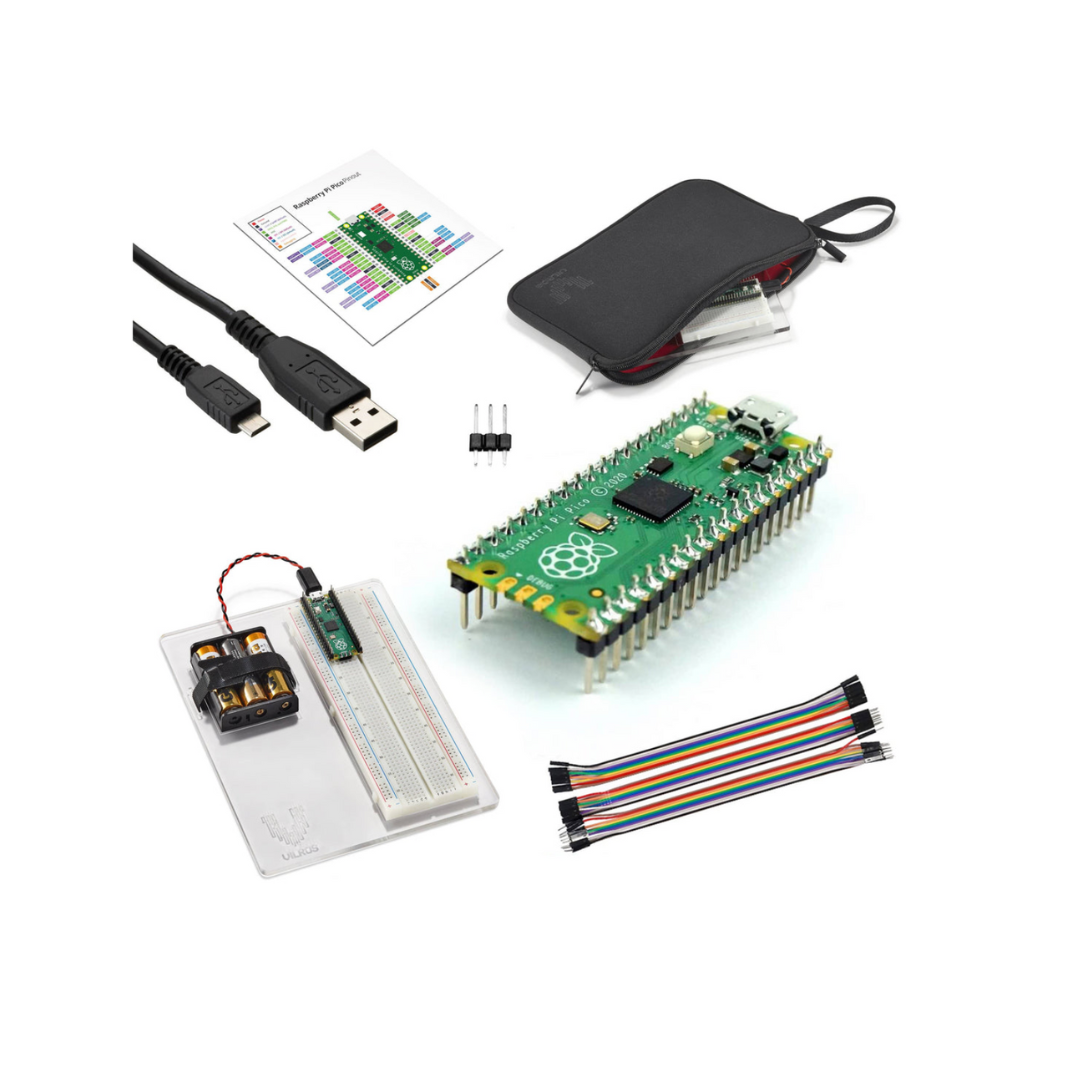

Vilros Raspberry Pi Pico With Header Project Starter Kit

A Vilros Raspberry Pi Pico kit inspired by the Get Started with the Raspberry Pi Pico.

You can get started With PICO using the Get Started with Micro Python on Raspberry Pi Pico book.

The Book is a book sold separately or can be downloaded for free.

Parts & Components

• 1 × Presoldered Raspberry Pi Pico with Presoldered Headers
• 1 × Full Size Solderless breadboard
• 800 Hole
• Sticky Back
• 1x Holder and Breadboard Panel
• Holds the Breadboard and Battery Holder in place for an easy and neat wiring experience.
• 30 × Jumper wires
• 10pcs male-to-female (M2F),
• 10pcs male-to-male (M2M)
• 10pcs female-to-female (F2F).
• 3 AA Battery Holder with Micro USB Connector
• Power the Pico on the GO
• 1x Neoprene Parts Storage Case with Pocket
• Internal Dimensions: 10x7 inches
• Double Zipper
• Black Neoprene
• Pocket for accessories storage
• Loop Handle
• 1 × USB Type-A to Micro Type-B 2.0 Cable
• 5-Pin
• 28/28AWG
• 1 × 3 Pin header.
• Can be used on the SWD Pads if desired. (The SWD pads are NOT used in Get Started with Micro Python on Raspberry Pi Pico book and not used in most projects)
• Raspberry Pi Pico Pinout Guide Card

----------------------------------------------------------------------------------------------

Raspberry Pi Pico Specs:

• 21 mm × 51 mm form factor
• RP2040 microcontroller chip designed by Raspberry Pi in the UK
• Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133 MHz
• 264KB on-chip SRAM
• 2MB on-board QSPI Flash
• 26 multifunction GPIO pins, including 3 analog inputs
• 2 × UART, 2 × SPI controllers, 2 × I2C controllers, 16 × PWM channels
• 1 × USB 1.1 controller and PHY, with host and device support
• 8 × Programmable I/O (PIO) state machines for custom peripheral support
• Supported input power 1.8–5.5V DC
• Operating temperature -20°C to +85°C
• The castellated module allows soldering directly to carrier boards
• Drag-and-drop programming using mass storage over USB
• Low-power sleep and dormant modes
• Accurate on-chip clock
• Temperature sensor
• Accelerated integer and floating-point libraries on-chip

Download the PDF version here.

Manual, Datasheet, and SDK Resources

• Getting Started with MicroPython on Rpi Pico
• C/C++ Development w/ Pico and RP2040-based Boards
• Raspberry Pi Pico Datasheet
• RP2040 Datasheet
• RPi Pico C/C++ SDK
• RPi Pico Python SDK
• API references
