Getting Started with Raspberry Pi

Contents

1. About Raspberry Pi

2. Choosing a Raspberry Pi Model

3. Installing the Operating System

4. Initial Setup

5. Using the GPIO Pins

6. Troubleshooting & Resources

About Raspberry Pi

Raspberry Pi is a compact computer used in custom software and hardware projects. Like a traditional PC, it connects with a monitor, keyboard, and mouse, and can run a variety of software programs.

But unlike traditional computers, the Raspberry Pi has GPIO (General Purpose Input/Output) pins that allow you to connect it to electronic components like LEDs, sensors, and motors. This makes it possible to build robots, smart home systems, retro gaming emulators, and other custom projects.

Step 1: Choosing a Raspberry Pi Model

Each Raspberry Pi model is unique, with its own set of features tailored to different types of projects.

Board Type Key Capabilities

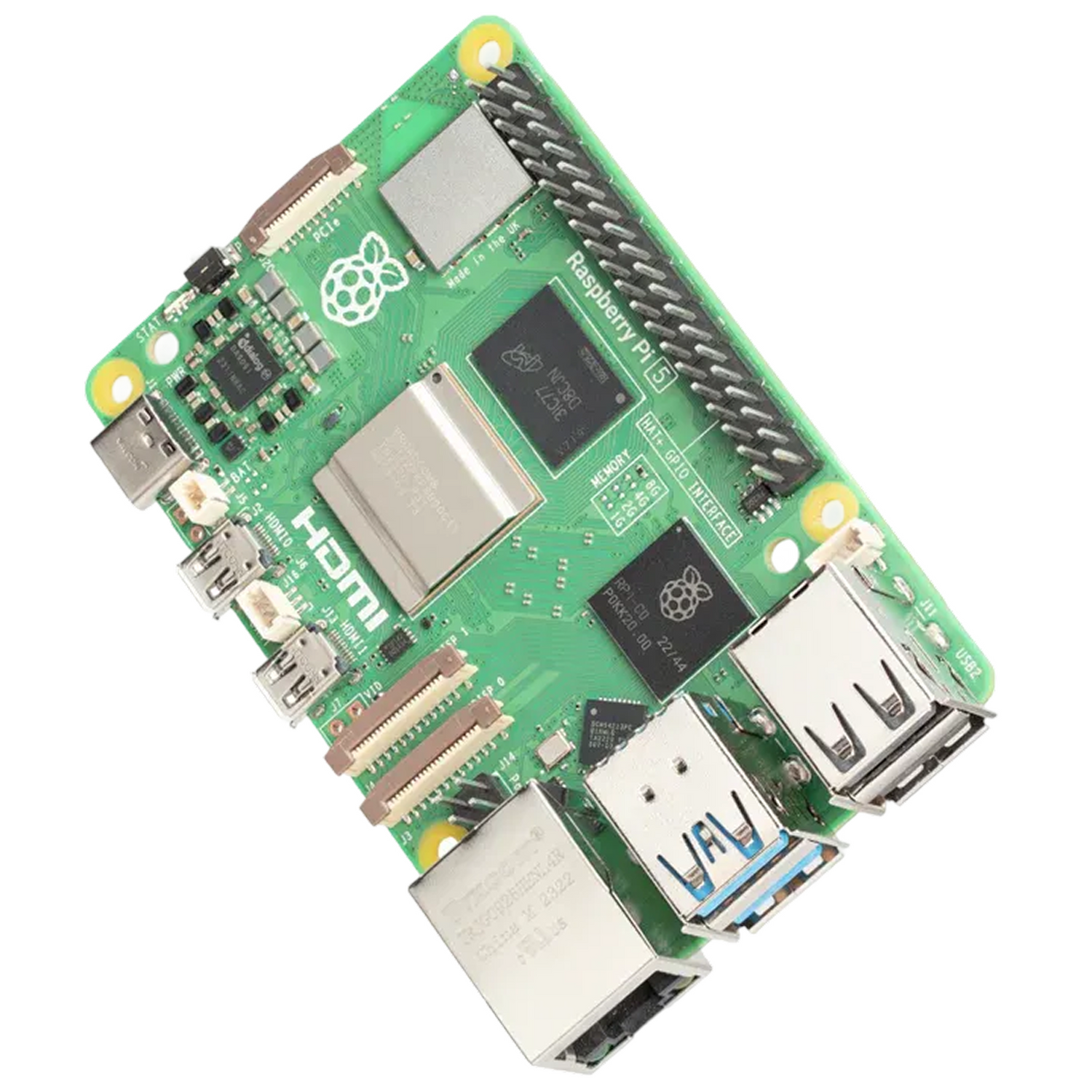

Raspberry Pi 5 Fastest Pi yet, supports dual 4K displays, USB 3.0, and advanced projects like AI
Raspberry Pi 4 Great performance for most tasks, supports full desktop use, USB 3.0, and 4K video
Raspberry Pi 3 Solid for coding, light automation, and media playback with built-in Wi-Fi & Bluetooth
Raspberry Pi Zero Ultra-small and low-power; ideal for portable or embedded IoT projects
Raspberry Pi Pico A tiny microcontroller board for simple electronics, sensors, and real-time control

Step 2: Getting Your Components

To get started with a Raspberry Pi project, these are the things you'll need:

  • Raspberry Pi Board: This is your main computing board.
  • Micro SD Card: This works as the hard drive for your Raspberry Pi.
  • Power Supply: All Raspberry Pi boards are powered with a microUSB power supply.
  • USB Keyboard and Mouse: These allow you to interact with your Raspberry Pi.
  • Monitor and HDMI Cable: Raspberry Pi boards have HDMI outputs for video.
  • Internet connection (Wi-Fi or Ethernet): For internet connectivity and downloads.

You may also want to get a case for your Raspberry Pi, as well as a heat sink or fan to extend its lifetime. Many people also use a breadboard to manage connections with other components like sensors, LEDs, and motors. Vilros sells kits with all of these components so you can get everything you need in one place.

Step 3: Installing the Operating System

Before you can start using your Raspberry Pi, you need to install an operating system (OS). If your microSD card doesn't come pre-installed with a Raspberry Pi OS, you'll need to format it yourself - here's how.

  1. Download Raspberry Pi OS: Visit the official Raspberry Pi website and download the latest version. You'll find several versions there, but for beginners, the version with the desktop interface is recommended.
  2. Prepare Your Micro SD Card: Make sure your SD card is formatted. You can use a free tool like SD Formatter to do this.
  3. Write the OS Image to the SD Card: To install Raspberry Pi OS onto your SD card, you'll need to use an image writing tool. One such tool is BalenaEtcher. Once installed, select the Raspberry Pi OS image file you downloaded, select your SD card, and click "Flash".
  4. Safely Eject Your SD Card: After the flashing process is complete, safely eject your SD card from your computer.

Step 4: Initial Setup

Now that you have all your components, let's get started with setting up the Raspberry Pi. For the safety of both you
and your Raspberry Pi, keep the board in its antistatic bag until it's time to use it. Always handle the board by the edges to avoid any possible damage to the sensitive parts.

Here are the steps to setting up your Raspberry Pi:

  1. Prepare the Raspberry Pi: Unpack your Raspberry Pi board from its box. The board should ideally be placed in a case to protect it from dust and accidental damage.
  2. Insert the Micro SD card: Insert the preloaded micro SD card into the slot on the edge of the board.
  3. Connect Your Peripherals: Connect a mouse and keyboard to the USB ports. Then, connect your monitor using the HDMI cable.
  4. Power Up: Finally, plug in the power supply. Make sure everything else is plugged in before you power up your Raspberry Pi. Once powered up, it should boot to the desktop automatically.
  5. Explore the Desktop: You'll notice that the Raspberry Pi desktop environment is quite similar to popular desktop environments like Windows and macOS. The menu button at the top left corner will open a list of installed applications and system settings.
  6. Shutdown Correctly: When you're done using your Raspberry Pi for the day, make sure to shut it down properly to avoid corrupting the SD card. Click the Raspberry icon at the top left, hover over "Shutdown" and select "Shutdown" or "Reboot" as needed.

Using the GPIO Pins

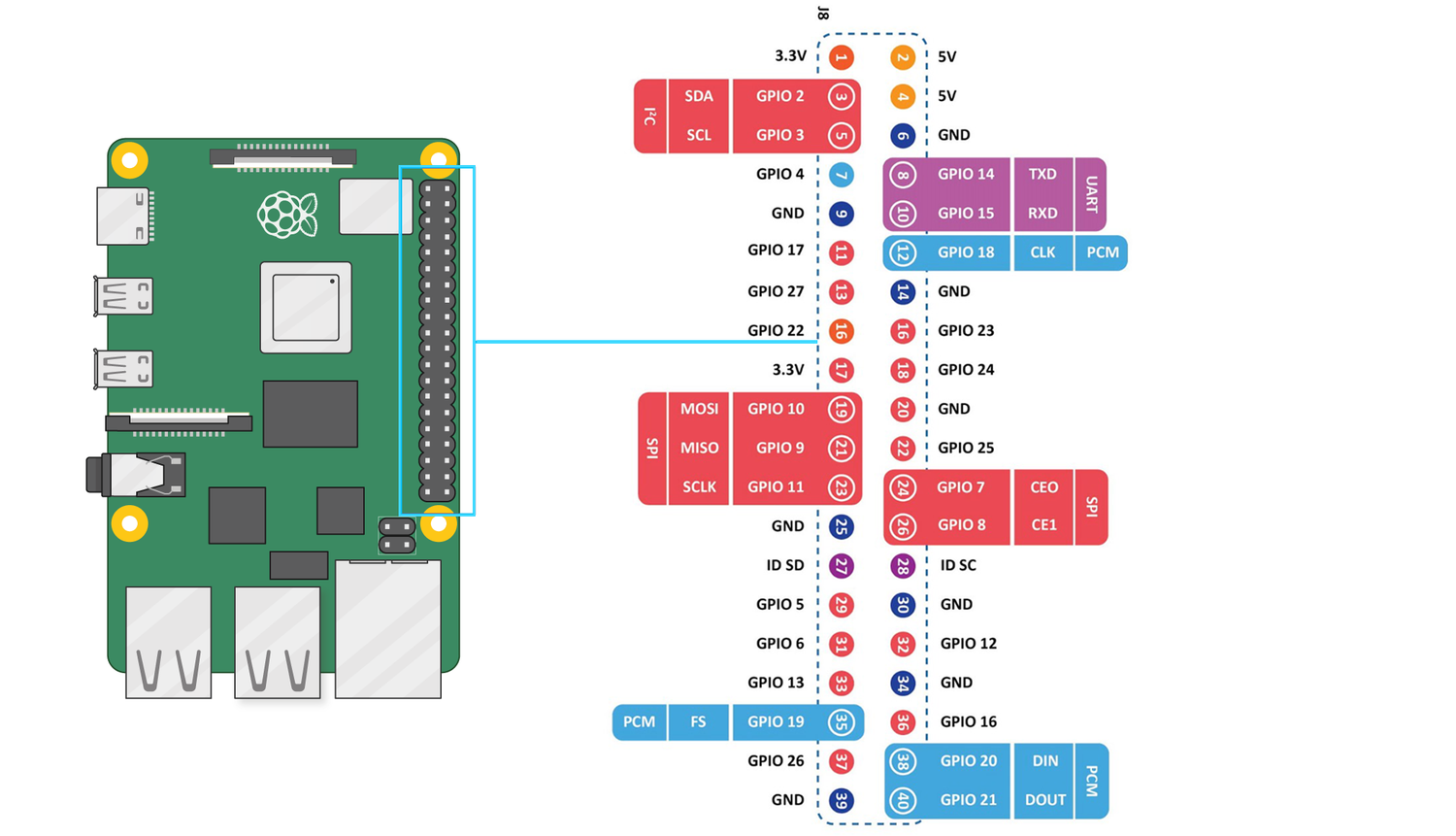

One of the best features of the Raspberry Pi is the GPIO pins that allow you to connect it to other hardware. If you're wondering what each pin does, we've got a handy guide for you on our website.

>> Raspberry Pi 5 Pinout Diagram
>> Raspberry Pi 4 Pinout Diagram (coming soon)
>> Raspberry Pi 3 Pinout Diagram (coming soon)
>> Raspberry Pi Zero Pinout Diagram (coming soon)
>> Raspberry Pi Pico Pinout Diagram (coming soon)

Troubleshooting & Resources

Don’t let a few roadblocks hinder your progress. Some common Raspberry Pi challenges you might face are power
problems, memory card issues, display problems, and network difficulties. For all of these problems, there are troubleshooting methods in place: check your power supply or settings, keep your system updated, use quality cables, and ensure proper connectivity.

Raspberry Pi Resources and Community Support

Here are some avenues to help you navigate your Raspberry Pi adventure:

  • Raspberry Pi Official Website: The official website has product specifications, blogs, free resources, and tutorials.
  • Raspberry Pi Forums: Mingle with other enthusiasts and experts who can provide troubleshooting help or advice.
  • Raspberry Pi Subreddit: Ask questions, gain inspiration, and share your work on this community forum.
  • GitHub Repositories: Many Raspberry Pi users share their code on GitHub.
  • YouTube Tutorials: YouTube has many step-by-step guides, project demos, and user-developed tutorials.

Remember, the Raspberry Pi experience is about sharing and collaborations. No matter what issue you're having, the community is ready to help!
