Types of kits made for Raspberry pi zero 2 W sold by Vilros.com

Who doesn’t like a little genius? Well, the world is moving toward small computers, and the day is almost here when we will have the most complex codes written in the smallest chips. One of the famous examples of these microcomputers is Raspberry Pi.



They have launched various series of Raspberry Pi since the first original launch.

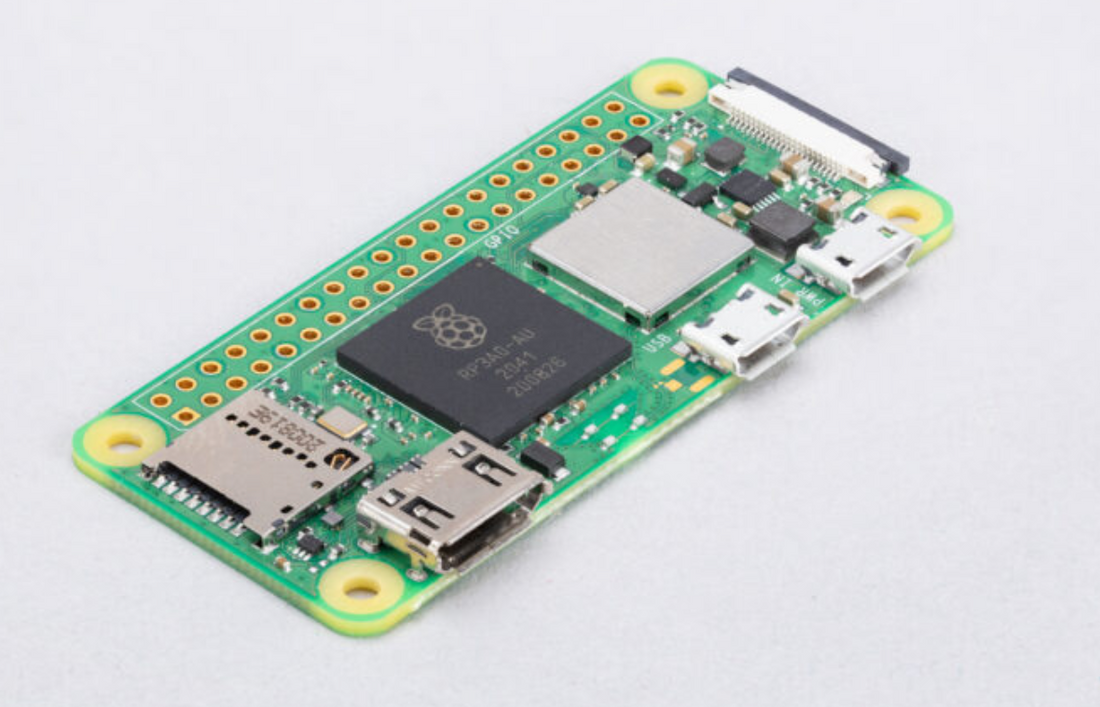

Raspberry Pi Zero 2 W

Right at the end of October 2021, Raspberry Pi launched the Raspberry Pi 2 W almost after 6 years of $5 Raspberry Pi Zero.



The Raspberry Pi Zero 2 W uses the same Broadcom BCM2710A1 SoC die as the Raspberry Pi 3 launch model, with arm cores slightly tuned down to 1GHz and packed together with 512MB of LPDDR2 SDRAM in a single space-saving packaging.



Depending on the workload, the precise performance improvement over Zero varies. However, for multi-threaded Sysbench, it is almost exactly five times quicker.



Raspberry Pi Zero 2 W specifications

To learn the Raspberry Pi Zero 2 W in-depth, you must first learn about the specifications.

  • Broadcom BCM2710A1, quad-core 64-bit SoC (Arm Cortex-A53 @ 1GHz)
  • 512MB LPDDR2 SDRAM
  • 2.4GHz IEEE 802.11b/g/n wireless LAN, Bluetooth 4.2, BLE
  • 1 × USB 2.0 interface with OTG
  • Composite video and reset pin solder points
  • CSI-2 camera connector
  • H.264, MPEG-4 decode (1080p30); H.264 encode (1080p30)
  • OpenGL ES 1.1, 2.0 graphics
  • HAT-compatible 40 pin I/O header footprint
  • MicroSD card slot
  • Mini HDMI port



What is different & new in Raspberry Pi Zero W from previous versions?

The newest and fastest feature is the CPU. The Pi Zero 2 W performs at roughly 80% of the level of the Raspberry Pi 3B. When all cores are active, it is approximately five times faster than the Pi Zero W. Performance on a single core is approximately 40% higher. The CPU performance, for example, is comparable to an early Pentium 4 or another x86-based machine from 2005 to 2010.



The Raspberry Pi Zero 2W, on the other hand, is roughly half as fast as the Raspberry Pi 4, which will remain the Raspberry Pi of choice for desktop applications.



RP3A0-AU - understanding the new chip

This custom-designed chip package for the Raspberry Pi incorporates the SoC BCM2710A1 and RAM. On top of the RP3A0-AU is the Raspberry Pi logo. As a result, it is the second product to feature the Raspberry Pi branding after the Raspberry Pi Pico (and the RP2040).



This is a pretty unconventional answer to a problem, and it's the route Raspberry Pi took to develop the follow-up to its well-liked Pi Zero range.



However, the primary issue that must be addressed is one of space. RAM and the SoC (CPU + GPU) are separate chips on the board of the "larger" Raspberry Pis, beginning with the Raspberry Pi 2 and including the current Raspberry Pi 4 and Pi 400 series. In Pi 4, the RAM is on top of the PCB, whereas it is on the back side in Pi 3B+, Pi 3B, and Pi 2.



What do the markings on RP3A0 mean?

The name RP3 knows the package. The part is the initial iteration, as indicated by the A0. AU designates that the package has gold bond wires rather than copper ones.



The production date is represented by a year and a week number in the 4-digit code. Funny enough, a lot of units were produced in week 41 of 2020, giving the code "2041" its misleading name.



The six-digit code represents an order date in the YYMMDD format.



Upgrading Raspberry Pi OS for the Zero 2 W

The Zero 2 W cannot run older Raspberry Pi OS releases.



Use your previous Pi Zero W, Pi 4, or other Raspberry Pi on which the operating system will boot in order to complete this upgrade instruction.



It will probably be best to overwrite it using the Raspberry Pi OS Imager if you don't have another Pi on hand and don't care about the information on the SD card.



Advantages Raspberry Pi Zero 2W

  • It can be utilized as a USB device with USB OTG (as a USB device, not just a host).
  • Increased performance.
  • Light weight and size (compared to bigger Pis like Pi 4).



Example applications

It is uncommon to utilize the Raspberry Pi Zero 2W as a desktop computer. A Raspberry Pi 4 or Pi 400 might be a better option.



Applications that use the Pi Zero display:

  • IoT wall devices.
  • Robots
  • Embedded Applications
  • Desktop indicators (e.g., Bitcoin stock tickers with ePaper displays).
  • Digital signage in shops and museums.



Raspberry Pi Zero 2 W long-term availability

At least until January 2028, the Raspberry Pi Zero 2 W will be offered for purchase. With the exception of the original Raspberry Pi 1 Model B, which was replaced by the more contemporary Raspberry Pi 1 Model B+, no Raspberry Pi board has been discontinued. Instead, Raspberry Pi intends to keep all products in production for as long as feasible.



Kits made for raspberry pi zero 2 W by Vilros

If you are trying to build new projects, you probably need a full kit along with the Raspberry Pi Zero 2 W. Virlos has some of the greatest variety in the line, offering to help you with all kinds of products.



While you get the Raspberry Pi 2 W board, this kit also includes the case for every Raspberry Pi. You can choose any style and color as it suits you. This basic starter kit will also find the Raspberry Pi Zero Compatible Power Supply with Micro USB, 5v 2.5A, Inline on/off Switch, 5 Ft Cable, Ferrite Bead-Noise Filter, and is also UL Listed.



The kit surprises you further with a Micro USB male to USB female adapter, which you can use to connect to the keyboard, etc.



Additionally, you get to have the HDMI to Mini HDMI Adapter. It enables you to connect with a standard HDMI cable.



The kit adds to the bag to keep all these accessories safe. More accessories in the bag are Camera Module Adapter Cable. It enables Connection from the Pi Zero to a camera Module. Lastly, the basic kit also has the 40 Pin Pin header, with an Overall Length of 50.60mm and Overall Width of 5.0mm.



  1. Vilros Raspberry Pi Zero 2 W Complete Starter Kit

This is another starter kit with a lot of similar things in the bag. This kit holds the Case For Raspberry Pi, and your choices are Muti Use ABS V1, Muti, Use ABS V2, and Aluminum Alloy with Passive Cooling.



Moving further, it also has the 32GB Micro SD card of class 10 and is Preloaded with NOOBS/RASPBIAN V3.7.0 or newer. Alongside, the starter kits offer Raspberry Pi Zero Compatible Power Supply and Micro USB to USB 4 Port OTG Hub.



The Micro USB to USB 4 Port OTG hub expands the Pi Zero to 4 USB Ports, draws power from the OTG port, and is compatible with most OTG Devices.



Besides, with the HDMI to MINI HDMI Cable, you can get the Connection for the Pi Zero to a standard HDMI Monitor.



Other things you will find are the same as in the basic kit by Vilros.



  1. Vilros Raspberry Pi Zero 2 W MAX Kit

This is the most valuable kit available in the stores of Voilros. If you purchase this kit worth $69.99, you will get the Case For Raspberry Pi Zero.



Along with the case, it also offers a 32GB Sandisk Extreme Micro SD card of class 10 and Preloaded with NOOBS/RASPBIAN V3.7.0 or newer. In case you need to reflash, it as includes Adapter too.



Then the obvious accessory is Raspberry Pi Zero Compatible Power Supply. The value of the kit increases with the Micro USB to USB and Ethernet Port HUB as it comes with 3 USB Ports, 1 Ethernet Port, Draws power from the OTG port, and is Compatible with most OTG Devices.

To help you establish a connection for the Pi Zero to a standard HDMI Monitor, it has HDMI to MINI HDMI Cable. It is 5Ft long.



Rest is HDMI to Mini HDMI Adapter, Storage bag, camera module cable, 40 Pin Pin Header. All in all, it gets you a perfect deal for the complete kit.



Wrap up

Life is too unpredictable to wait for the right version that may or may not launch. So, if you have any idea to develop or create something and it is possible with the Raspberry Pi Zero 2 W, then get your ready-made kit now.



Start creating, and if you need more different types of Raspberry Pi kits, Vilros is here to serve the purpose most affordably. So, get in touch now.
