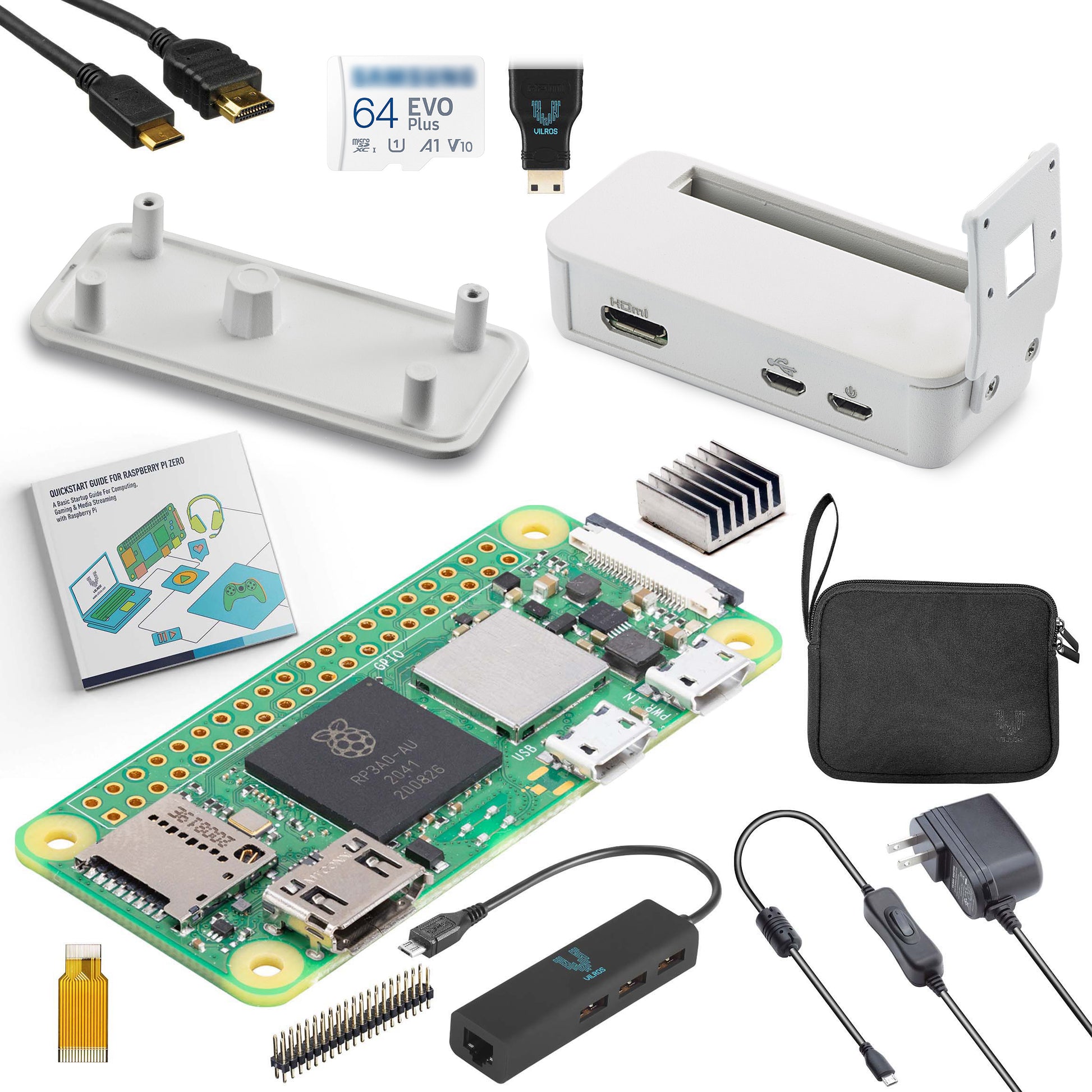

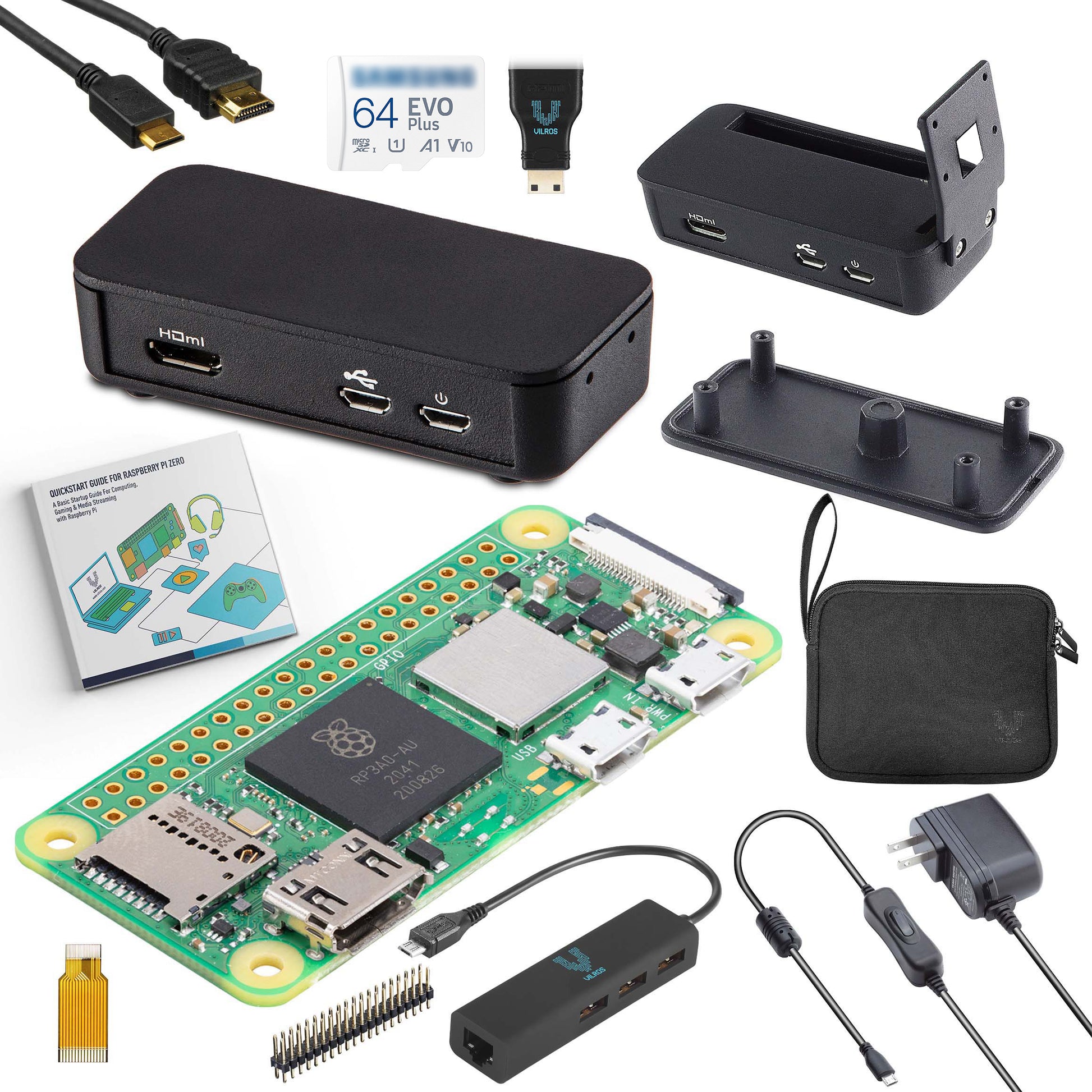

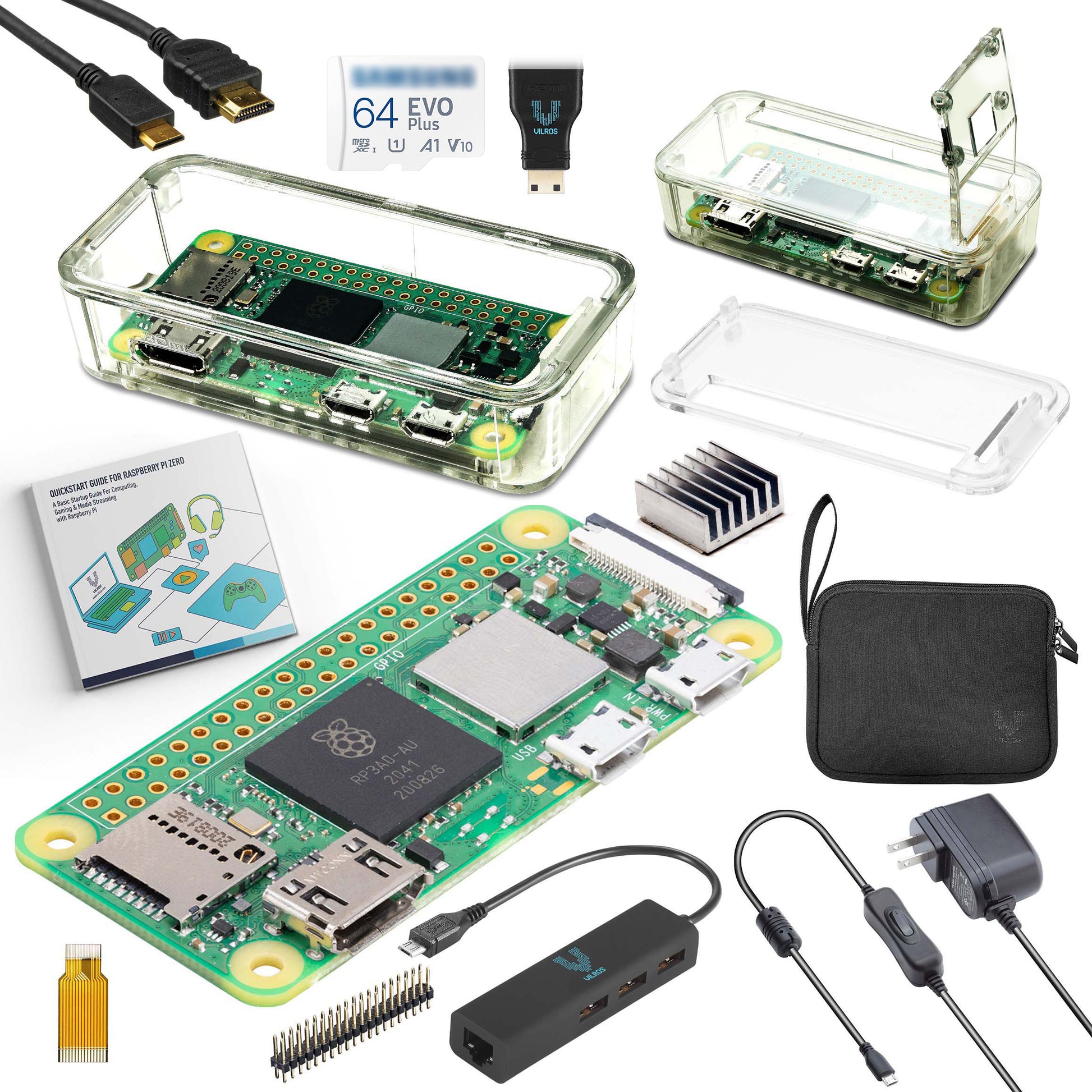

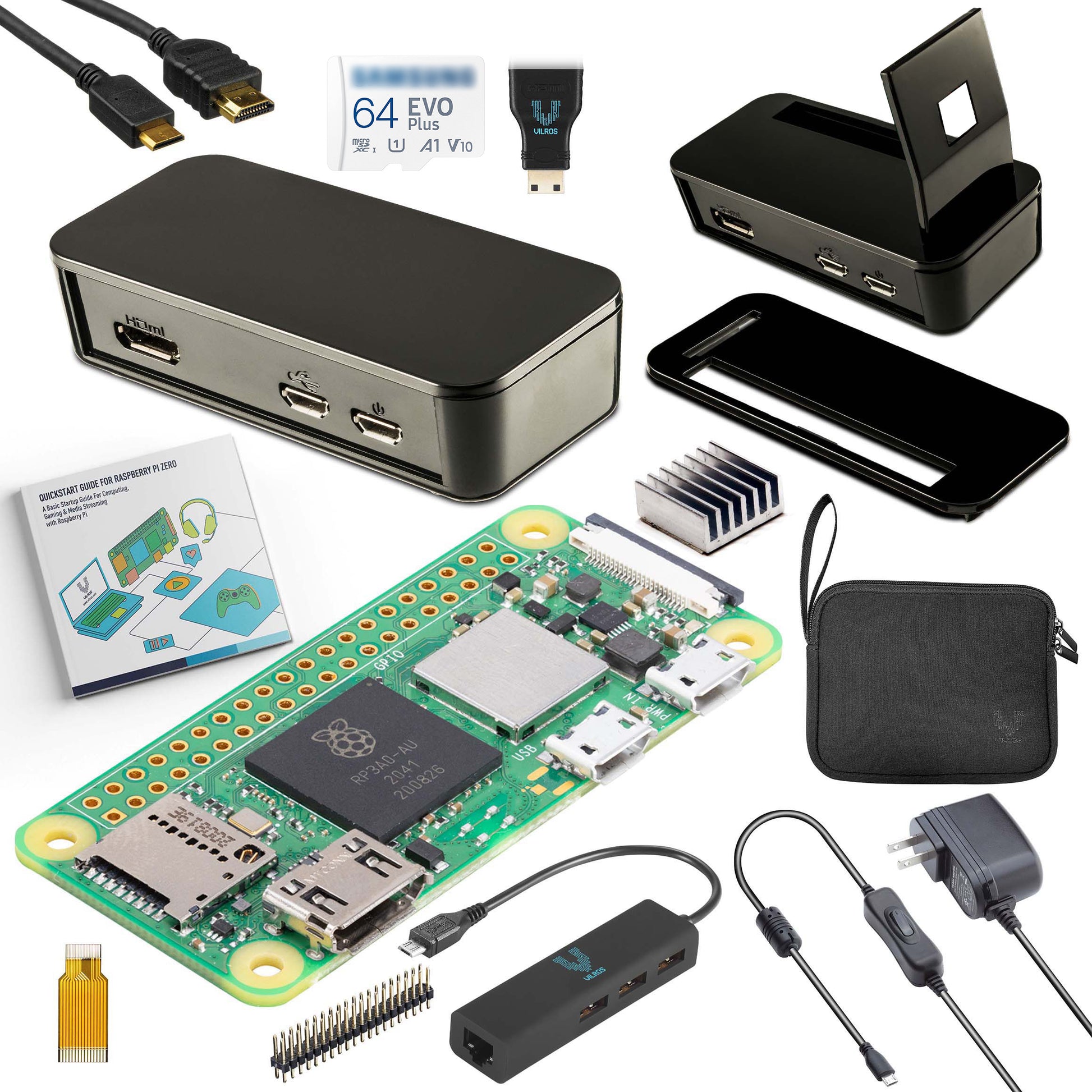

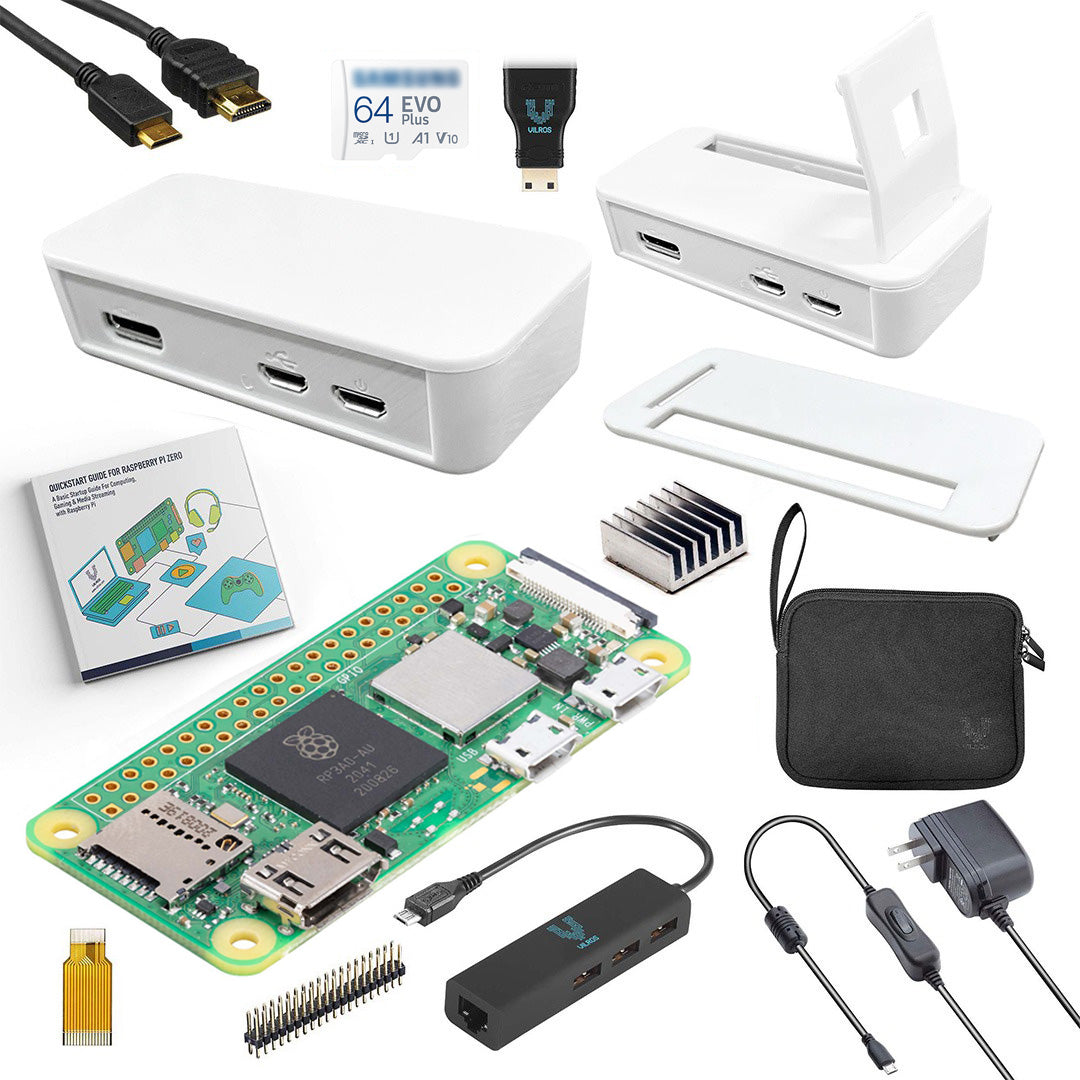

Vilros Raspberry Pi Zero 2 W MAX Kit

This MAX Kit from Vilros includes the Following Items:

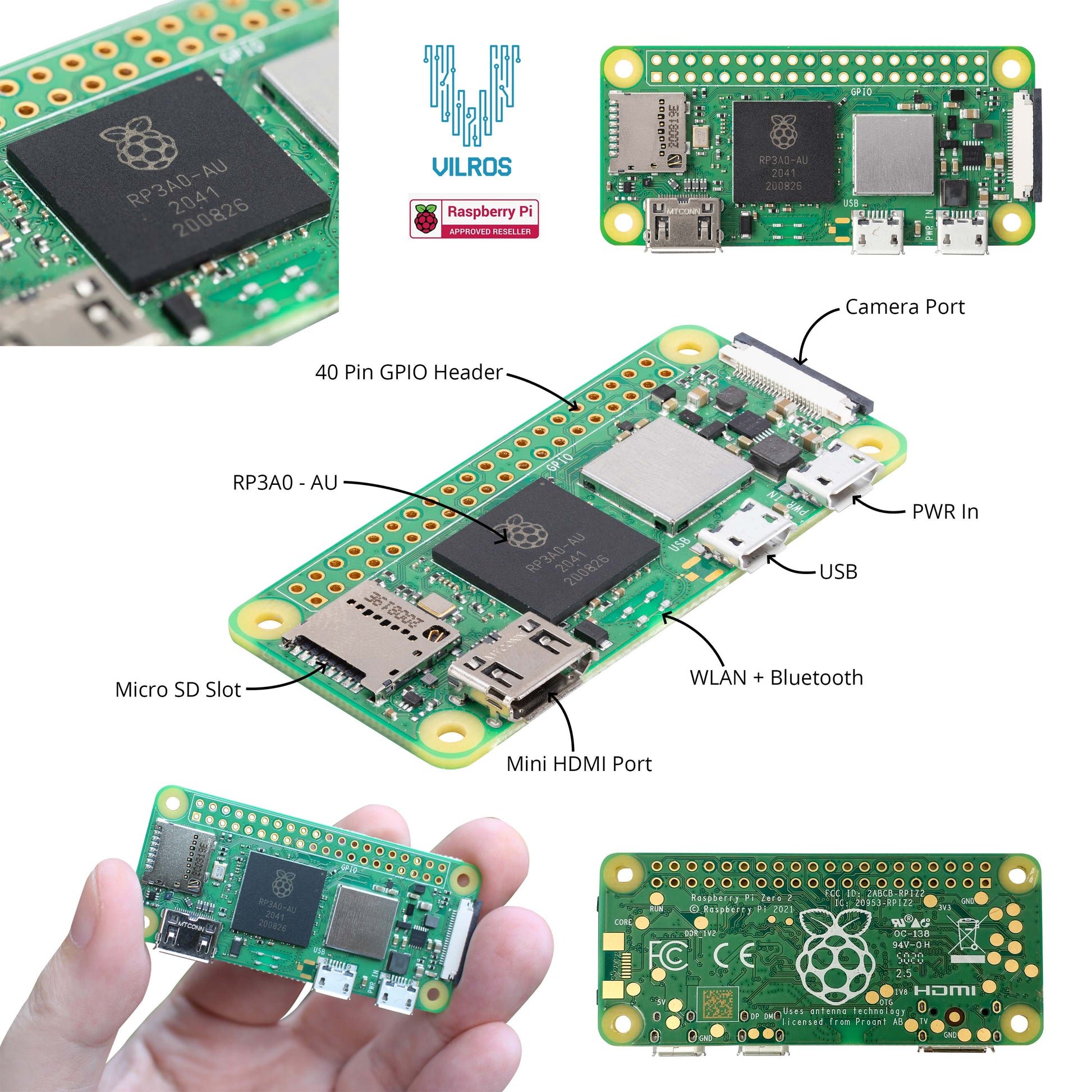

• Raspberry Pi Zero 2 W (Released 10/28/2021)
• 1GHz quad-core
• 64-bit ARM Cortex-A53 CPU
• VideoCore IV GPU
• 512MB LPDDR2 DRAM
• 02.11b/g/n wireless LAN
• Bluetooth 4.2 / Bluetooth Low Energy (BLE)
• MicroSD card slot
• Mini HDMI Port
• USB 2.0 OTG port
• Micro USB power
• HAT-compatible 40-pin header
• Composite video and reset pins via solder test points
• CSI camera connector
• Case For Raspberry Pi Zero (Various Styles and colors available)
• Choices Include:
• Muti Use ABS V1
• Muti Use ABS V2
• Aluminum Alloy with Passive Cooling
• 64GB Micro SD Card Preloaded with Raspberry Pi OS
• Class10
• Preloaded with Raspberry Pi OS
• Raspberry Pi Zero Compatible Power Supply
• Micro USB
• 5v 2.5A
• Inline on/off Switch
• 5 Ft Cable
• Ferrite Bead-Noise Filter
• UL Listed
• Micro USB to USB and Ethernet Port HUB
• 3 USB Ports
• 1 Ethernet Port
• Draws power from OTG port
• Compatible with most OTG Devices
• HDMI to MINI HDMI Cable
• Enables Connection for the Pi Zero to a standard HDMI Monitor
• 5FT
• HDMI to Mini HDMI Adapter
• Enables Connection for the Pi Zero to a standard HDMI Cable
• Storage bag
• Neatly Holds all the Pi Zero Kit Parts and More!
• Camera Module Adapter Cable
• Enables Connection from the Pi Zero to a camera Module
• Length:1.5"--38mm
• 15 Pin 1.0mm Pitch interface to 22 Pin 0.5mm interface.
• 40 Pin Pin Header
• 2x 20 Pins
• Overall Length: 50.60mm
• Overall Width - 5.0mm
• Vilros Quickstart Guide for Raspberry Pi Zero
• Basic Instructions for Raspberry Pi Zero

Kits with ABS cases will also include a Heatsink

Passive cooling Cases will NOT include a heatsink as the case contacts the chip and will not fit with an additional heatsink.
