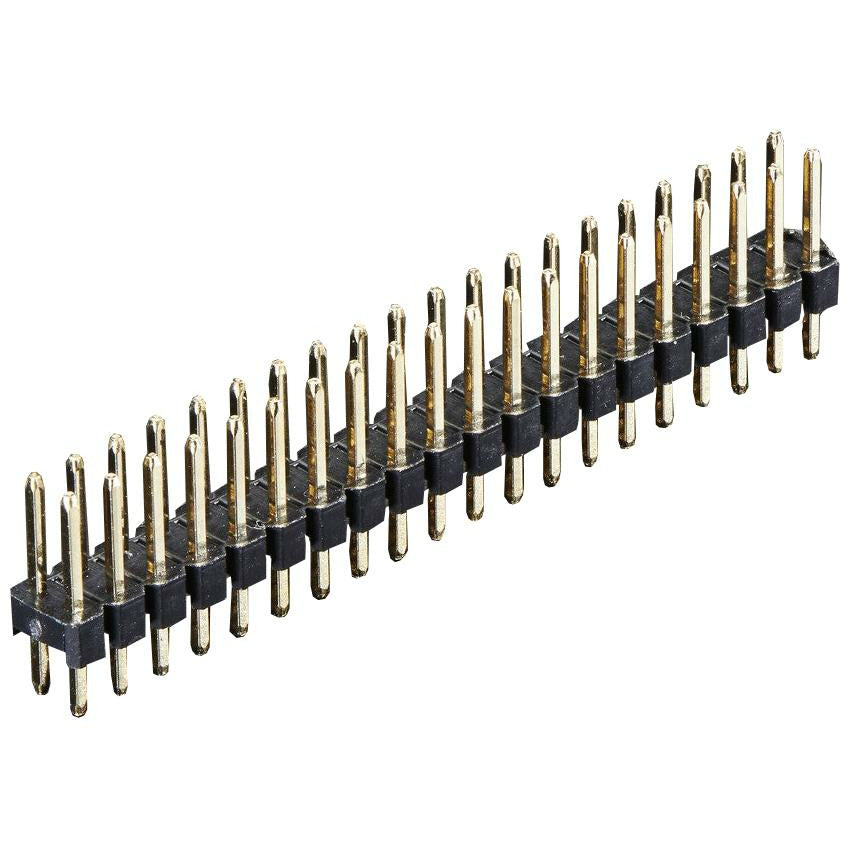

40 Pin (2x20) Male Pin Header For Pi Zero

In Stock

SKU: VILP097

This is a 40-pin (2 x 20 row) header with a 0.1" (2.54mm) pitch! You can solder this onto a Raspberry Pi Zero/W. They're super special gold-plated ones for excellent conductivity and they won't oxidize!

Breakaway headers are the duct tape of electronics. They're great for connecting things together, soldering to perf-boards, and fit into any breakout or breadboard!

These 40-pin long headers, 0.1" pitch, can be stacked next to each other on a 0.1" grid and broken apart easily with pliers or diagonal cutters.

Features:

  • Number of pins - 2 x 20
  • Male/Male (standard)
  • Contact material - Gold plated
  • Contact resistance - Max 20 mΩ
  • Nominal current - 3 A
  • Spacing - 2.54mm (0.1")
  • Overall Pin Height Top Pin to Bottom Pin: 11.64mm
  • Black Shroud Height: 2.50mm
  • Bottom Pin Height (from shroud to top of pin): 3.01mm
  • Top Pin Height (from shroud to top of pin): 6.13mm
  • Overall Length: 50.60mm
  • Overall Width - 5.0mm
by Vilros

40 Pin (2x20) Male Pin Header For Pi Zero

$3.99
Free Shipping

This is a 40-pin (2 x 20 row) header with a 0.1" (2.54mm) pitch! You can solder this onto a Raspberry Pi Zero/W. They're super special gold-plated ones for excellent conductivity and they won't oxidize!

Breakaway headers are the duct tape of electronics. They're great for connecting things together, soldering to perf-boards, and fit into any breakout or breadboard!

These 40-pin long headers, 0.1" pitch, can be stacked next to each other on a 0.1" grid and broken apart easily with pliers or diagonal cutters.

Features:

  • Number of pins - 2 x 20
  • Male/Male (standard)
  • Contact material - Gold plated
  • Contact resistance - Max 20 mΩ
  • Nominal current - 3 A
  • Spacing - 2.54mm (0.1")
  • Overall Pin Height Top Pin to Bottom Pin: 11.64mm
  • Black Shroud Height: 2.50mm
  • Bottom Pin Height (from shroud to top of pin): 3.01mm
  • Top Pin Height (from shroud to top of pin): 6.13mm
  • Overall Length: 50.60mm
  • Overall Width - 5.0mm
