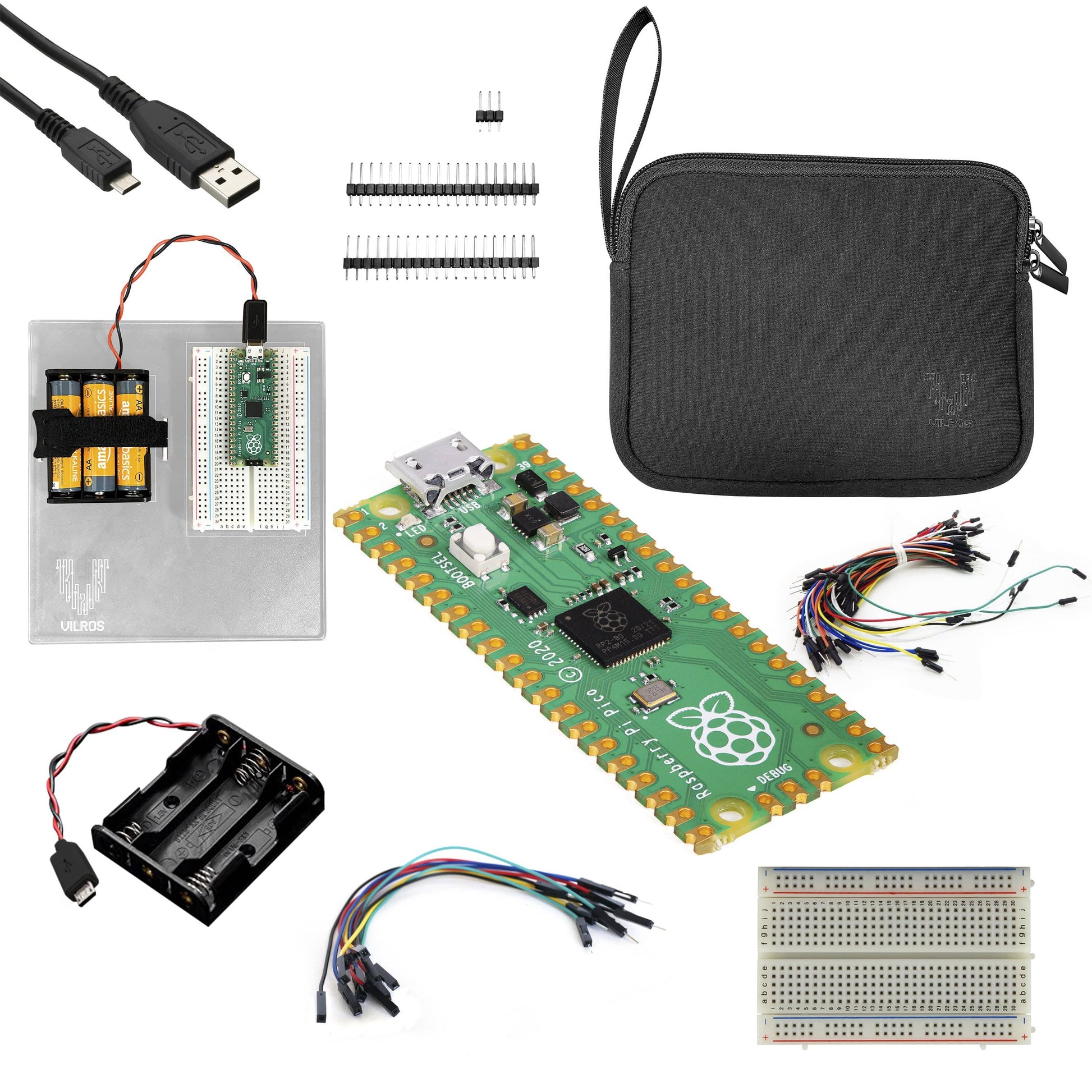

INCLUDES:
Raspberry Pi Pico Board
RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
264KB of SRAM, and 2MB of on-board Flash memory
Castellated module allows soldering direct to carrier boards
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
26 × multi-function GPIO pins
2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
Accurate clock and timer on-chip
Temperature sensor
Accelerated floating-point libraries on-chip
8 × Programmable I/O (PIO) state machines for custom peripheral support
Pin header Set For RP Pico
2x 0.1" 20 Male Pin Header
1x 0.1" 3 Pin Male Header
USB Type-A to Micro Type-B 2.0 Cable
5-Pin
28/28AWG
Great for Raspberry Pi Pico
3 AA Battery Holder With Micro USB Connector
Power the Pico on the GO
Neoprene Parts Storage Case With Pocket
Internal Dimensions: 6 x 4.75 inches
Double Zipper
Black Neoprene
Pocket for accessories storage
Loop Handle
400 Hole Breadboard
Sticky back
Male-Male Jumper Cables
65 Count
Assorted colors
Assorted sizes
Male-Female Jumper Cables
10 Count
Assorted colors
Battery Holder and Breadboard Panel
Holds Breadboard and Battery Holder for easy setup
Important:
The Included Pins are NOT soldered to the board and Soldering is required.
