A Vilros Raspberry Pi Pico kit to get you started with MicroPyton

This kit includes everything you need to immerse yourself in the world of Raspberry Pi Pico.

This kit Includes the Vilros Get started with MicroPython on Raspberry Pi Pico Booklet and provides the all parts you need to build the projects ( the booklet provides guidance on how to find the projects in the in the official Get Started with MicroPython on Raspberry Pi Pico book )

You can also use the parts create your own using projects with the dozens of components that are included (see below part list below).

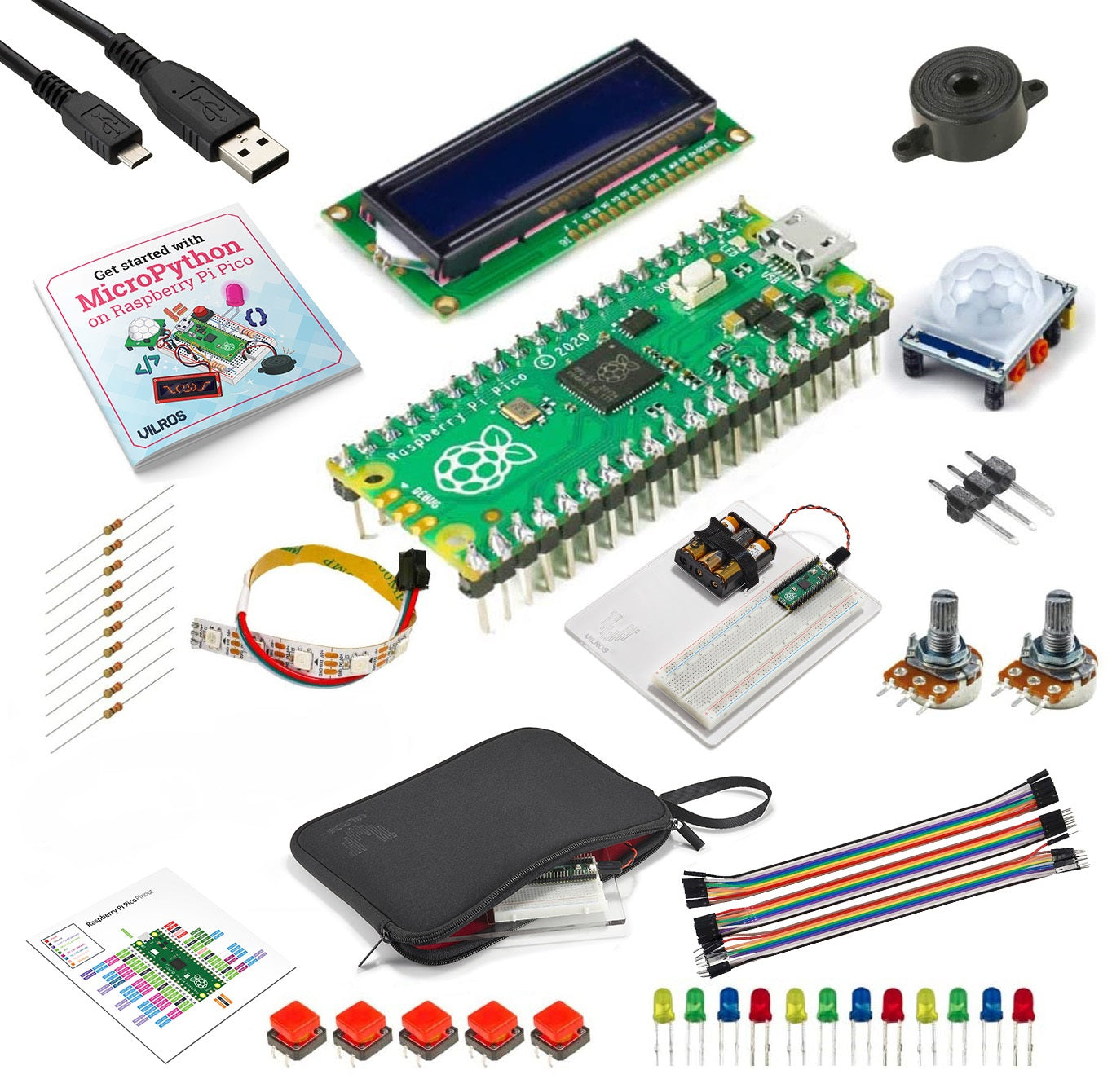

Parts & Components

• 1 × Presoldered Raspberry Pi Pico with male headers attached

• 1x Vilros Get started with MicroPython on Raspberry Pi Pico Booklet



• 1 × Full Size Solderless breadboard
  800 Hole
  Sticky Back

• 1 x Battery Holder and Breadboard Panel
  Holds the Breadboard and Battery Holder in place for an easy and neat wiring experience.

• 30 × Jumper wires
  10pcs male-to-female (M2F),
  10pcs male-to-male (M2M)
  10pcs female-to-female (F2F).

• 12 × Colorful LEDs:
  3x red, 3x blue,3x yellow and 3x green.

• 3 AA Battery Holder with Micro USB Connector
  Power the Pico on the GO

• 1x Neoprene Parts Storage Case with Pocket
  Internal Dimensions: 10x7 inches
  Double Zipper
  Black Neoprene
  Pocket for accessories storage
  Loop Handle

• 1 × USB Type-A to Micro Type-B 2.0 Cable
  5-Pin
  28/28AWG

• 1 × 3 Pin header.
  Can be used on the SWD Pads if desired. (The SWD pads are NOT used Get Started with Micro Python on Raspberry Pi Pico book and not used in most projects)

• 5 × Push-button switches.


• 10 × 330 Ω resistors.


• 1 × Active piezoelectric buzzer.


• 2 × 10 kΩ potentiometer.


• 1 × HC-SR501 PIR sensor.


• 1 × I2C 1602 LCD module.


• 1 × WS2812B LED strip.


• 1 × Clear hard plastic box for small part storage


• Raspberry Pi Pico Pinout Guide

----------------------------------------------------------------------------------------------

Raspberry Pi  Pico Specs:

• 21 mm × 51 mm form factor
• RP2040 microcontroller chip designed by Raspberry Pi in the UK
• Dual-core Arm Cortex-M0+ processor, flexible clock running up to 133 MHz
• 264KB on-chip SRAM
• 2MB on-board QSPI Flash
• 26 multifunction GPIO pins, including 3 analogue inputs
• 2 × UART, 2 × SPI controllers, 2 × I2C controllers, 16 × PWM channels
• 1 × USB 1.1 controller and PHY, with host and device support
• 8 × Programmable I/O (PIO) state machines for custom peripheral support
• Supported input power 1.8–5.5V DC
• Operating temperature -20°C to +85°C
• Castellated module allows soldering direct to carrier boards
• Drag-and-drop programming using mass storage over USB
• Low-power sleep and dormant modes
• Accurate on-chip clock
• Temperature sensor
• Accelerated integer and floating-point libraries on-chip

Download the PDF version here.

Manual, Datasheet, and SDK Resources

• Getting Started with MicroPython on Rpi Pico
• C/C++ Development w/ Pico and RP2040-based Boards
• Raspberry Pi Pico Datasheet
• RP2040 Datasheet
• RPi Pico C/C++ SDK
• RPi Pico Python SDK
• API references
