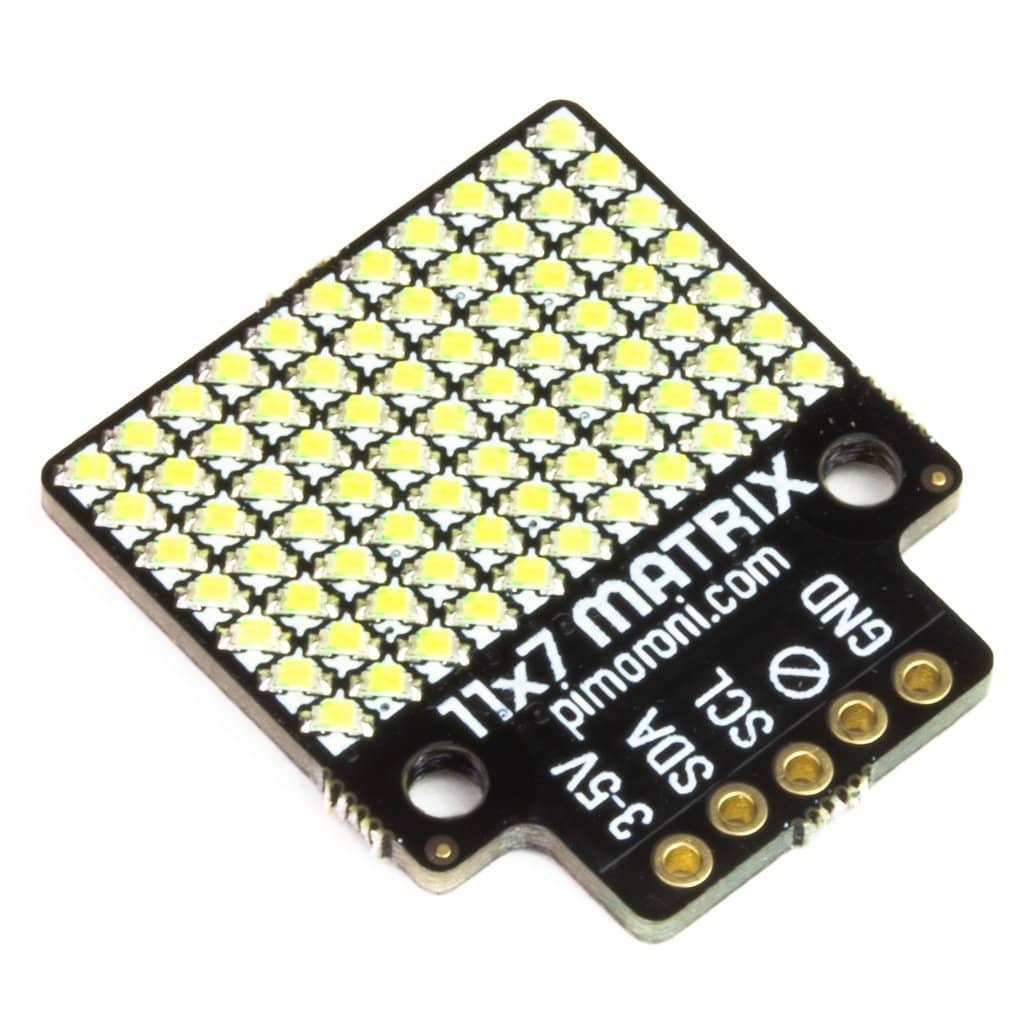

Pimoroni 11x7 LED Matrix Breakout

Pimoroni 11x7 LED Matrix Breakout
$13.99
Free shipping
30-day returns
·Authorized Raspberry Pi reseller
-
-
-
Tap once to add to cart, then pick your wallet.
In Stock • Free Shipping
Order now to receive it in 4 business days
SKU: PIM442
A tiny, tightly-packed matrix of 77 individually controllable bright white LEDs. Ideal for scrolling text, animations, bar graphs, or just general illumination, and it's Raspberry Pi and Arduino-compatible.
This tiny, white LED matrix has 77 pixels packed onto a board that's the same size as a postage stamp! Each LED's brightness can be controlled individually, meaning that you can display all sorts of cool text, animations, and more on it. Why not use it as a controllable light source for your Raspberry Pi Camera?
Like Pimoroni's other breakouts, this one just pops straight onto your Pi's pins once you've soldered on the included right-angle female header, and we included a trace that can be cut to change the I2C address from 0x75 to 0x77 if you want to use two matrices at once!
Features
- 11x7 (77 total) bright white LEDs
- Uses the IS31FL3731 driver chip
- 22x14mm active area
- 2mm LED pitch
- I2C interface (address 0x75/0x77 (cut trace))
- 3.3V or 5V compatible
- Reverse polarity protection
- Compatible with all models of Raspberry Pi, and Arduino
- Python library
Kit includes
- 11x7 LED Matrix Breakout
- 1x5 male header
- 1x5 female right-angle header
We've designed this breakout board so that you can solder on the piece of right-angle female header and pop it straight onto the bottom left 5 pins on your Raspberry Pi's GPIO header (pins 1, 3, 5, 7, 9).
Software
We've put together a Python library to make it easy to drive the 11x7 LED Matrix Breakout, along with a handful of examples to show what it can do.
Our software does not support Raspbian Wheezy.
Notes
- Dimensions: 23x25x3mm.
SKU:
PIM442
Barcode:
Description
A tiny, tightly-packed matrix of 77 individually controllable bright white LEDs. Ideal for scrolling text, animations, bar graphs, or just general illumination, and it's Raspberry Pi and Arduino-compatible.
This tiny, white LED matrix has 77 pixels packed onto a board that's the same size as a postage stamp! Each LED's brightness can be controlled individually, meaning that you can display all sorts of cool text, animations, and more on it. Why not use it as a controllable light source for your Raspberry Pi Camera?
Like Pimoroni's other breakouts, this one just pops straight onto your Pi's pins once you've soldered on the included right-angle female header, and we included a trace that can be cut to change the I2C address from 0x75 to 0x77 if you want to use two matrices at once!
Features
- 11x7 (77 total) bright white LEDs
- Uses the IS31FL3731 driver chip
- 22x14mm active area
- 2mm LED pitch
- I2C interface (address 0x75/0x77 (cut trace))
- 3.3V or 5V compatible
- Reverse polarity protection
- Compatible with all models of Raspberry Pi, and Arduino
- Python library
Kit includes
- 11x7 LED Matrix Breakout
- 1x5 male header
- 1x5 female right-angle header
We've designed this breakout board so that you can solder on the piece of right-angle female header and pop it straight onto the bottom left 5 pins on your Raspberry Pi's GPIO header (pins 1, 3, 5, 7, 9).
Software
We've put together a Python library to make it easy to drive the 11x7 LED Matrix Breakout, along with a handful of examples to show what it can do.
Our software does not support Raspbian Wheezy.
Notes
- Dimensions: 23x25x3mm.
SKU:
PIM442
Barcode:
