Official Raspberry Pi 7" Touchscreen with Pi 4 Compatible Case

In Stock

SKU: RP_TOUCHSCREEN_PI4_COMBO

Official Raspberry Pi 7" Touchscreen with Pi 4 Compatible Case



This Bundle consists of Raspberry Pi LCD Touch Screen (7 Inch) and Raspberry Pi LCD Touch Screen Black Case for the Raspberry Pi 4 Model B

Raspberry Pi LCD Touch Screen — 7-inch
The Raspberry Pi has its own official LCD touchscreen. A few years in the making, the Raspberry Pi Foundation wanted you to have the perfect display screen for your Pi without compromise.

Features & Benefits of the Pi LCD Touch Screen
• Multi-touch capacitive touch screen — supports up to 10 finger touches
• 7-inch display
• 800 x 480-pixel resolution at 60 frames per second (fps)
• 24-bit RGB colour
• 70° viewing angle
• Only two connections required
• Flexible power supply
• No electronic interference
• Full Raspbian OS functionality without a keyboard and mouse

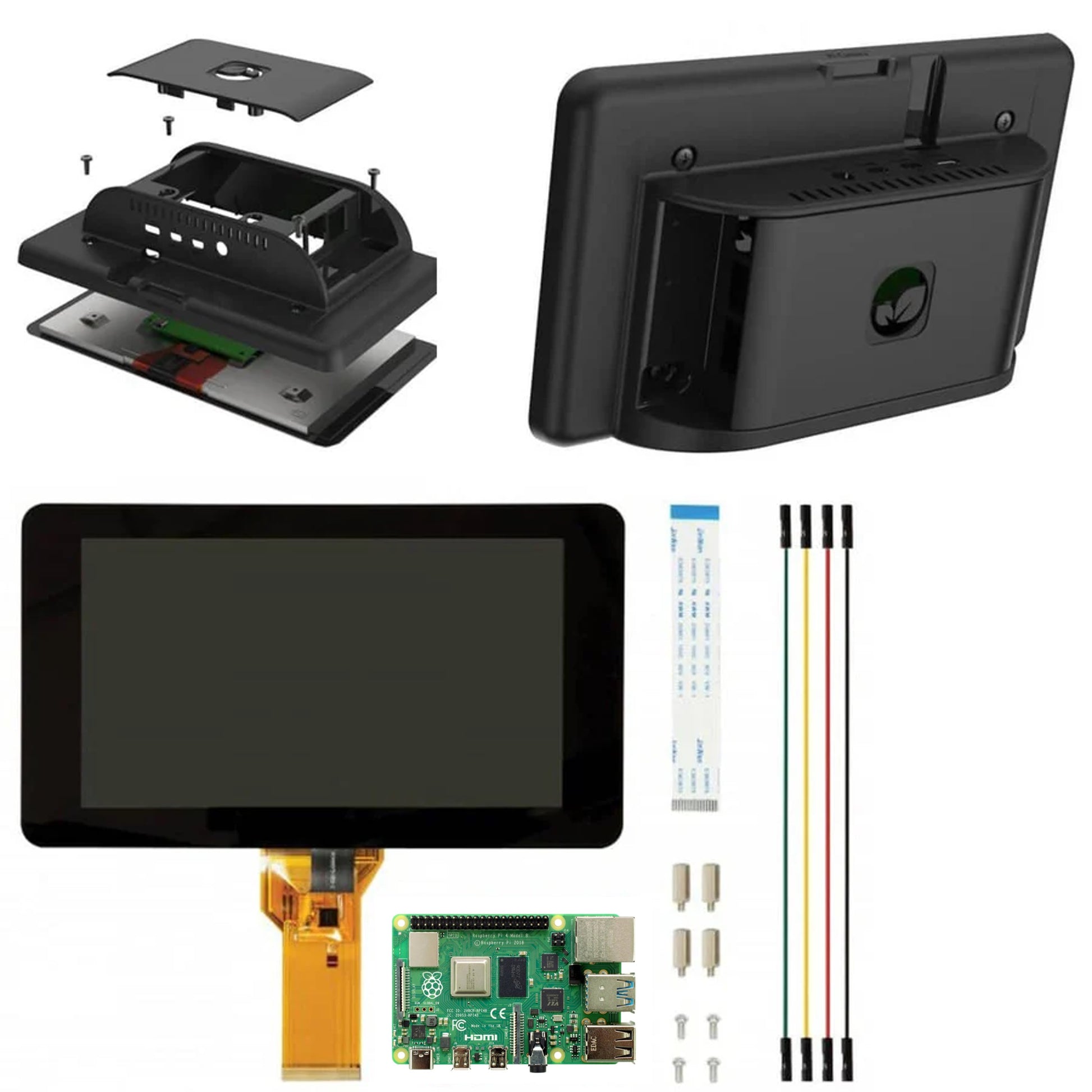

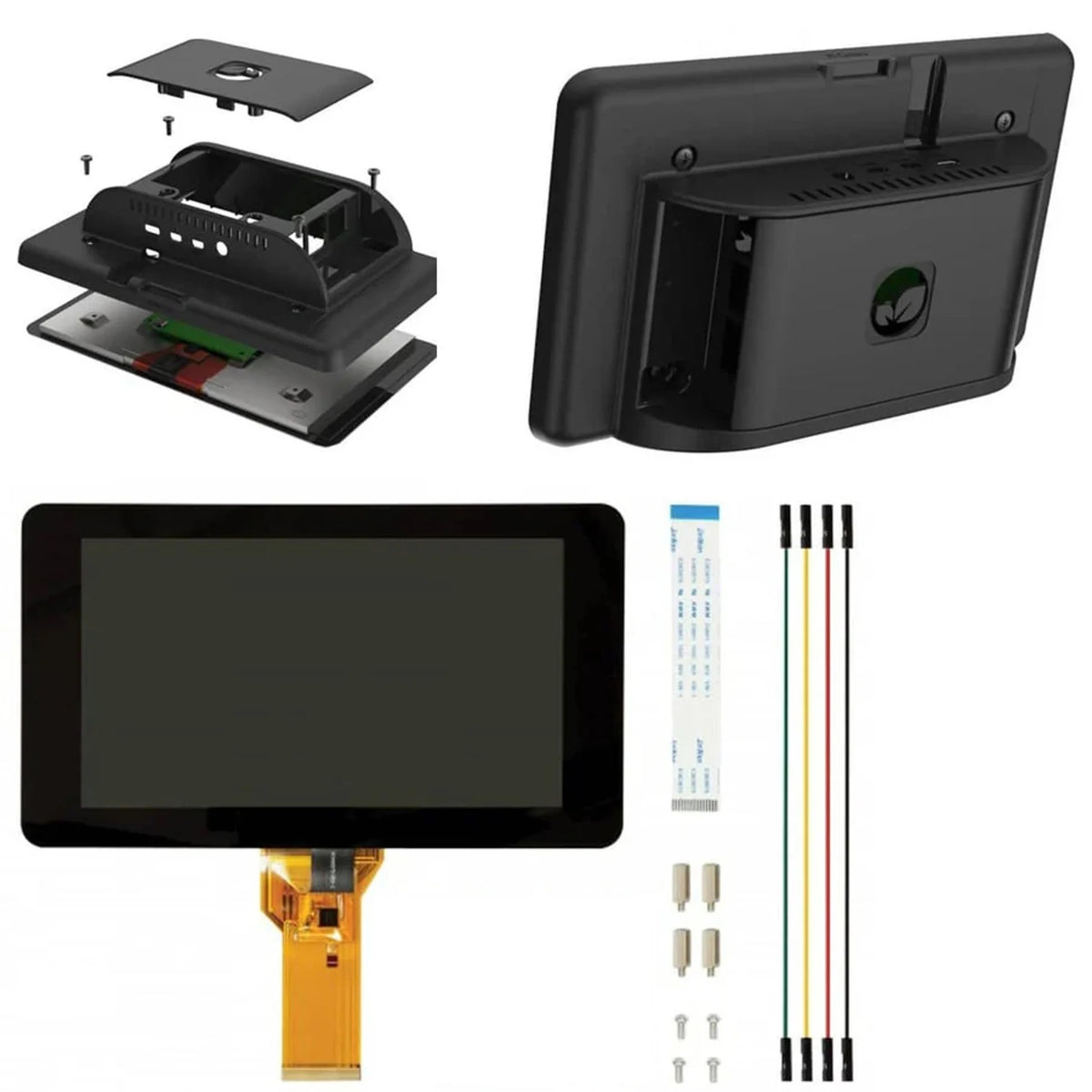

LCD Touch Screen Contents
• LCD touch screen
• Adapter board
• DSI ribbon cable
• 4 jumper wires
• Mounting hardware

Setting up your LCD Touch Screen
Set up is quick and easy. The adapter board and your Pi are mounted to the rear of the LCD using the basic fixings supplied. The DSI ribbon cable provides the display interface between the Pi and the LCD assembly.

Raspberry Pi LCD Touch Screen Case
The Touch Screen case are designed to house your Raspberry Pi board and the Raspberry Pi 7” LCD Touch Screen.
Available in black, the case provides protection to the board and the display. The case also acts as a bezel to the display, improving its appearance while housing the board neatly behind it.

Features and Benefits
• Renders the touch screen and Pi board portable
• Cut-outs for all connections
• Camera board connector slot
• Wall mount features
• Four screw fixings supplied for attachment to the touchscreen
• Easy clip rear cover to protect/access all internal connectors

Raspberry Pi board is sold separately.

Official Raspberry Pi 7" Touchscreen with Pi 4 Compatible Case

$74.99

Official Raspberry Pi 7" Touchscreen with Pi 4 Compatible Case



This Bundle consists of Raspberry Pi LCD Touch Screen (7 Inch) and Raspberry Pi LCD Touch Screen Black Case for the Raspberry Pi 4 Model B

Raspberry Pi LCD Touch Screen — 7-inch
The Raspberry Pi has its own official LCD touchscreen. A few years in the making, the Raspberry Pi Foundation wanted you to have the perfect display screen for your Pi without compromise.

Features & Benefits of the Pi LCD Touch Screen
• Multi-touch capacitive touch screen — supports up to 10 finger touches
• 7-inch display
• 800 x 480-pixel resolution at 60 frames per second (fps)
• 24-bit RGB colour
• 70° viewing angle
• Only two connections required
• Flexible power supply
• No electronic interference
• Full Raspbian OS functionality without a keyboard and mouse

LCD Touch Screen Contents
• LCD touch screen
• Adapter board
• DSI ribbon cable
• 4 jumper wires
• Mounting hardware

Setting up your LCD Touch Screen
Set up is quick and easy. The adapter board and your Pi are mounted to the rear of the LCD using the basic fixings supplied. The DSI ribbon cable provides the display interface between the Pi and the LCD assembly.

Raspberry Pi LCD Touch Screen Case
The Touch Screen case are designed to house your Raspberry Pi board and the Raspberry Pi 7” LCD Touch Screen.
Available in black, the case provides protection to the board and the display. The case also acts as a bezel to the display, improving its appearance while housing the board neatly behind it.

Features and Benefits
• Renders the touch screen and Pi board portable
• Cut-outs for all connections
• Camera board connector slot
• Wall mount features
• Four screw fixings supplied for attachment to the touchscreen
• Easy clip rear cover to protect/access all internal connectors

Raspberry Pi board is sold separately.

Customer Reviews

Based on 6 reviews
67%
(4)
17%
(1)
17%
(1)
0%
(0)
0%
(0)
J
John C.
Great little setup!

I purchased this and a Raspberry Pi 4B to build a tiny AIO system. It’s a pretty good setup, easy to put together and compact.

The screen itself is pretty good, though the viewing angles are a bit narrower than many modern devices. Works well for the simple games that are my primary use case for the machine, though.

There’s a reasonable amount of space around the edges of the pi, which makes it compatible with most fans that can be mounted via screws running through from the top, of which there are quite a few. You may need to file the locating protrusions down a bit to clear a heat sink, though.

Clearance on the top is quite tight. The wires to power the screen are bent over pretty hard. An extra mm of space here probably would have been desirable. It would also be nice if the back cover were vented to flow more air to a fan, but that can be addressed with a dremel.

My only real issue with the screen itself is that I can’t find a way to get it completely shut the screen off. It can blank to black but it’s obviously still driving the screen and backlight. That makes this setup not work for an always on device, which is a shame. I planned to have it on my nightstand and just leave it on all the time and use it as a little media player in addition to game machine.

A little more wire clearance, venting, and the ability for the pi to completely cut signal and the screen to shut off would make this a perfect little setup.

D
D.
Works fine

Fast order and shipping process.

A
Alejandra P.

i bought 4 screens and 4 raspberry work fine and it`s too easy to install.
good job, five stars

D
Dennis

My biggest issue was that I found no facilities for mounting a fan. Next was that for some reason it didn't want to flip the screen.

T
Tim L.
Was fairly easy to set up and wor...

Was fairly easy to set up and works great. I also mounted it in the case made for it and the Pi 4. It makes a nice, compact package that the addition of a Bluetooth keyboard yields a complete computer.
