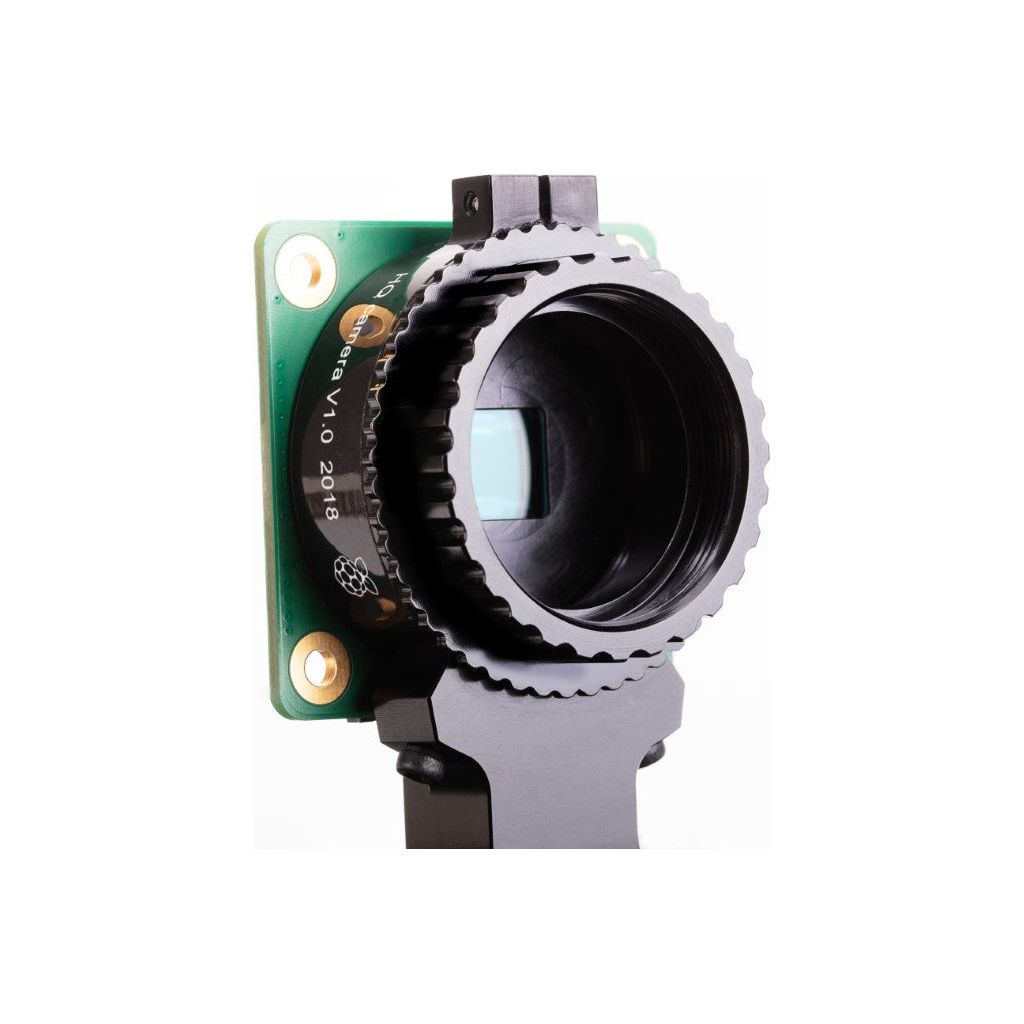

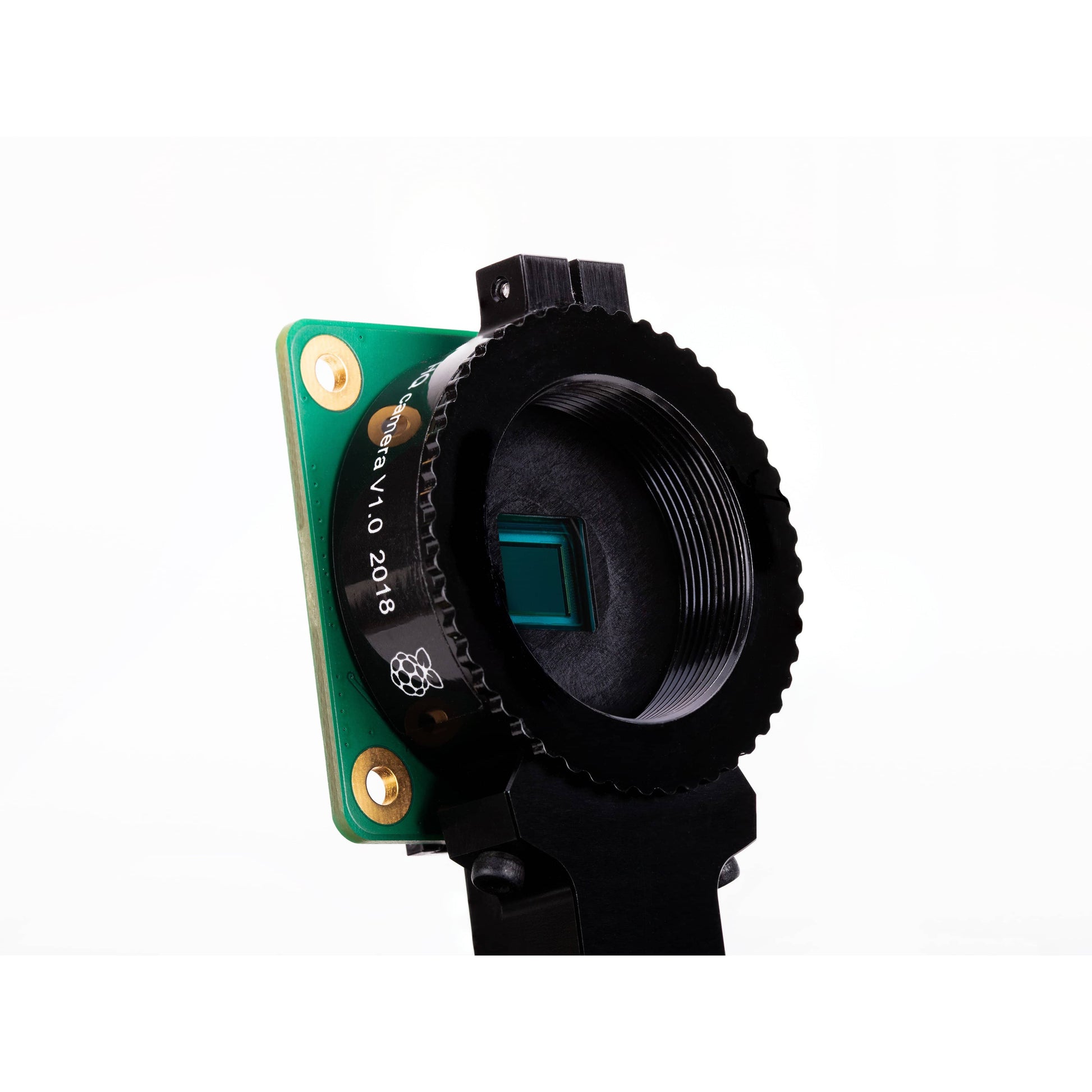

The Raspberry Pi High-Quality Camera is a Higher End Camera offered directly from Raspberry Pi.

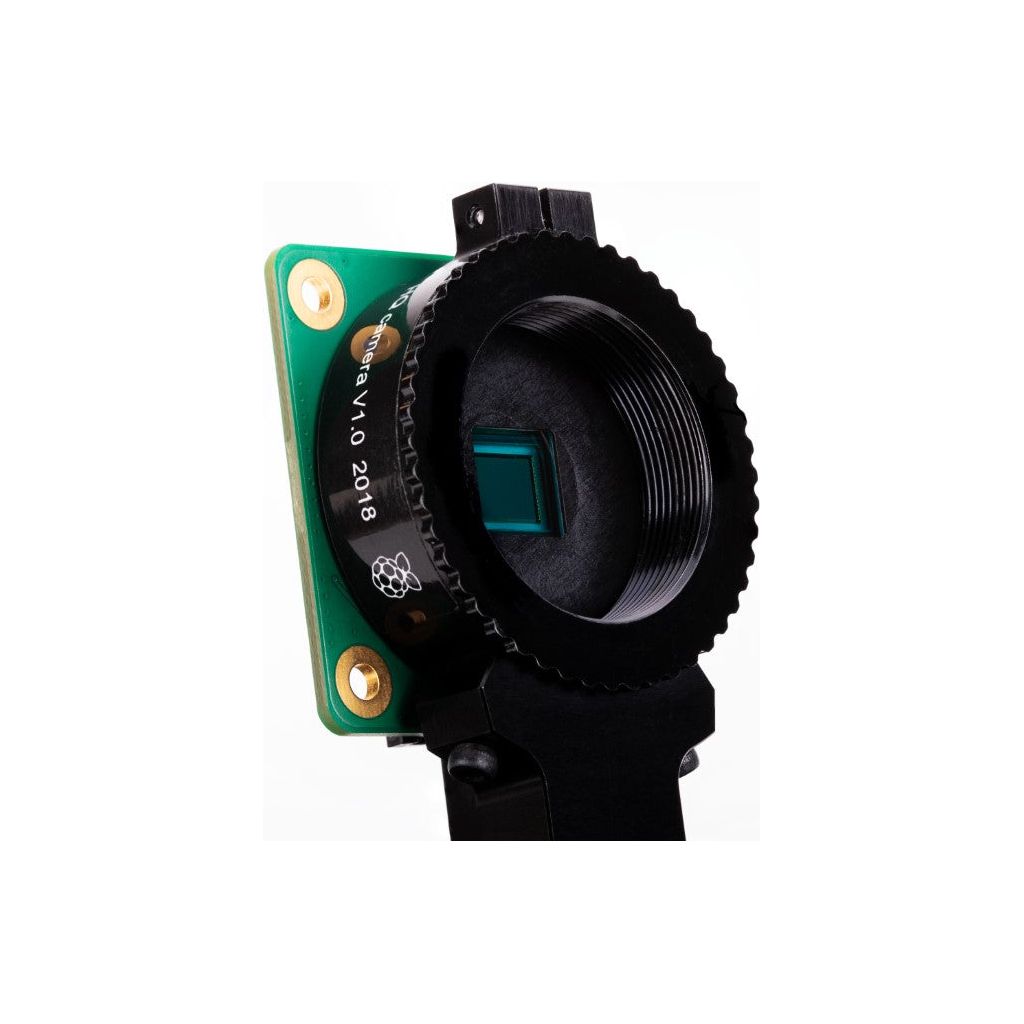

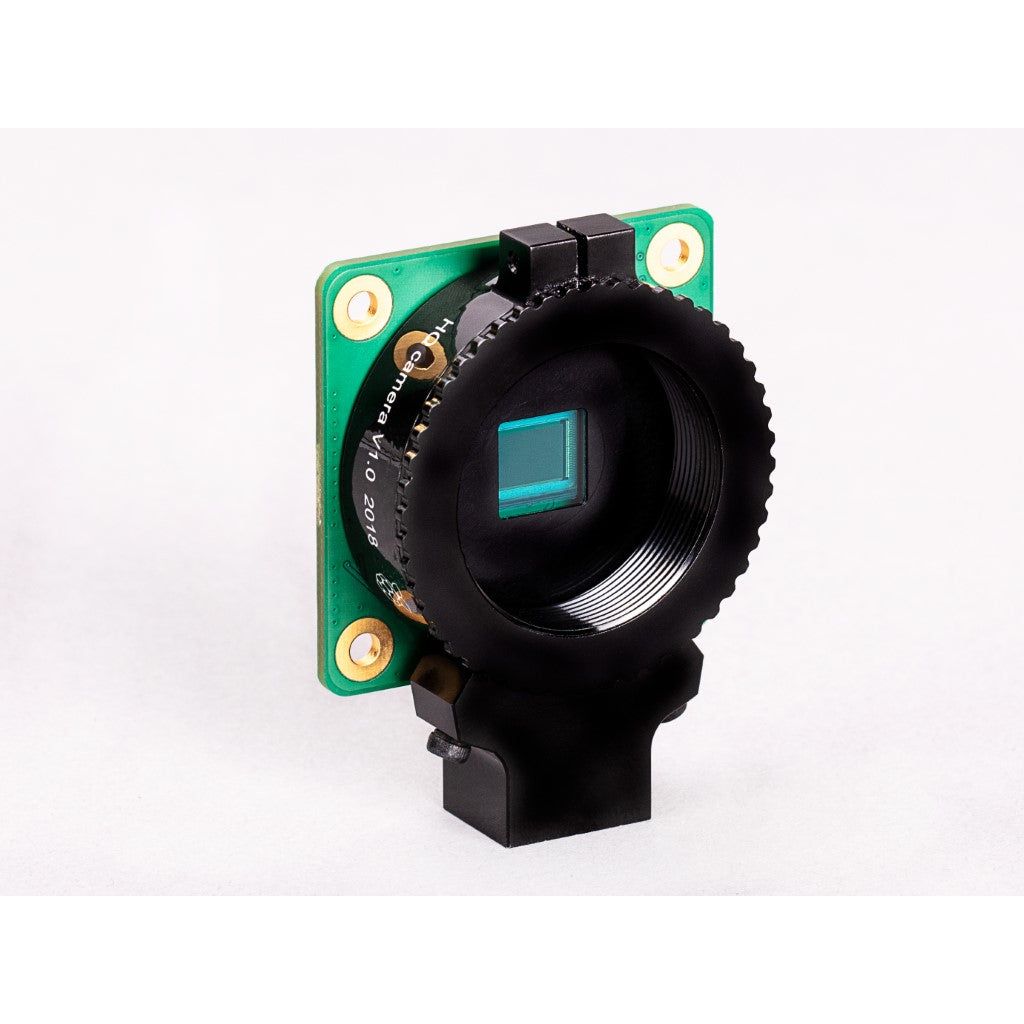

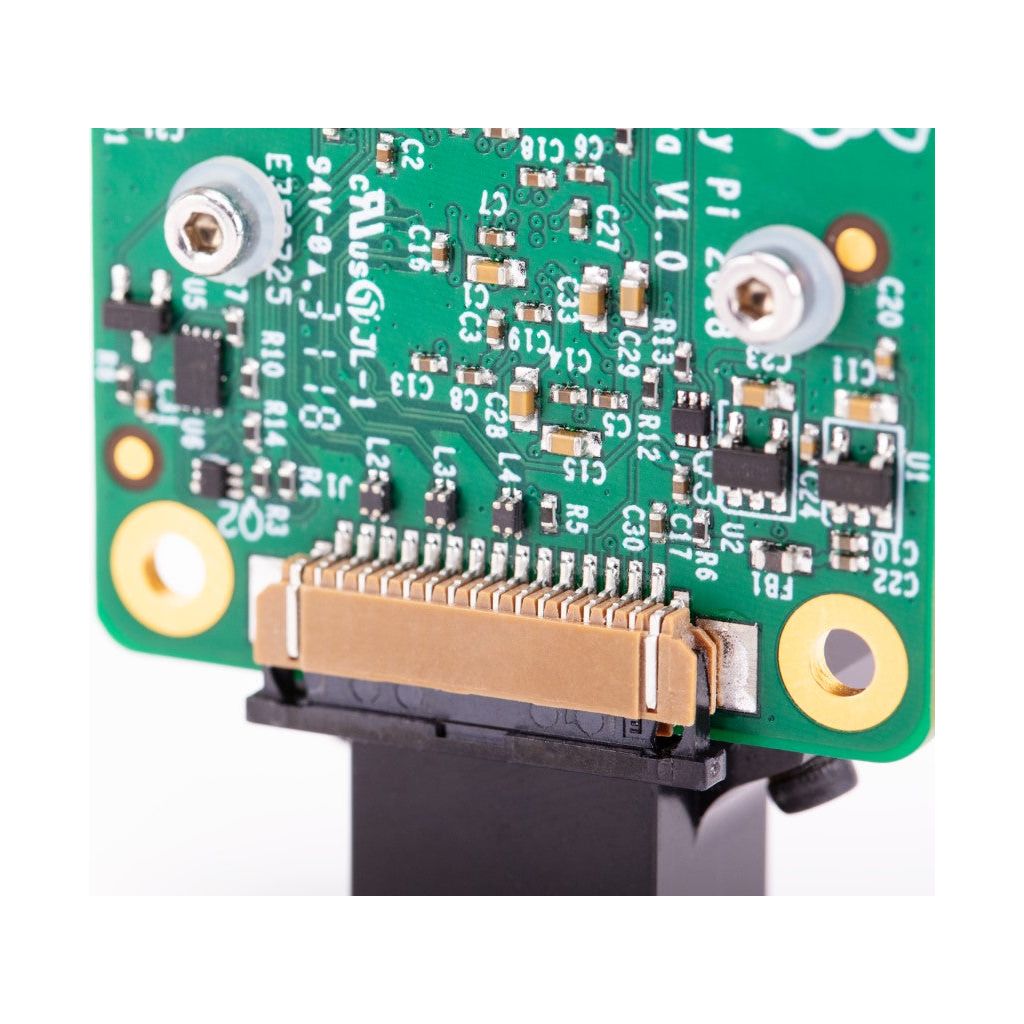

The package comprises a circuit board carrying a Sony IMX477 sensor,

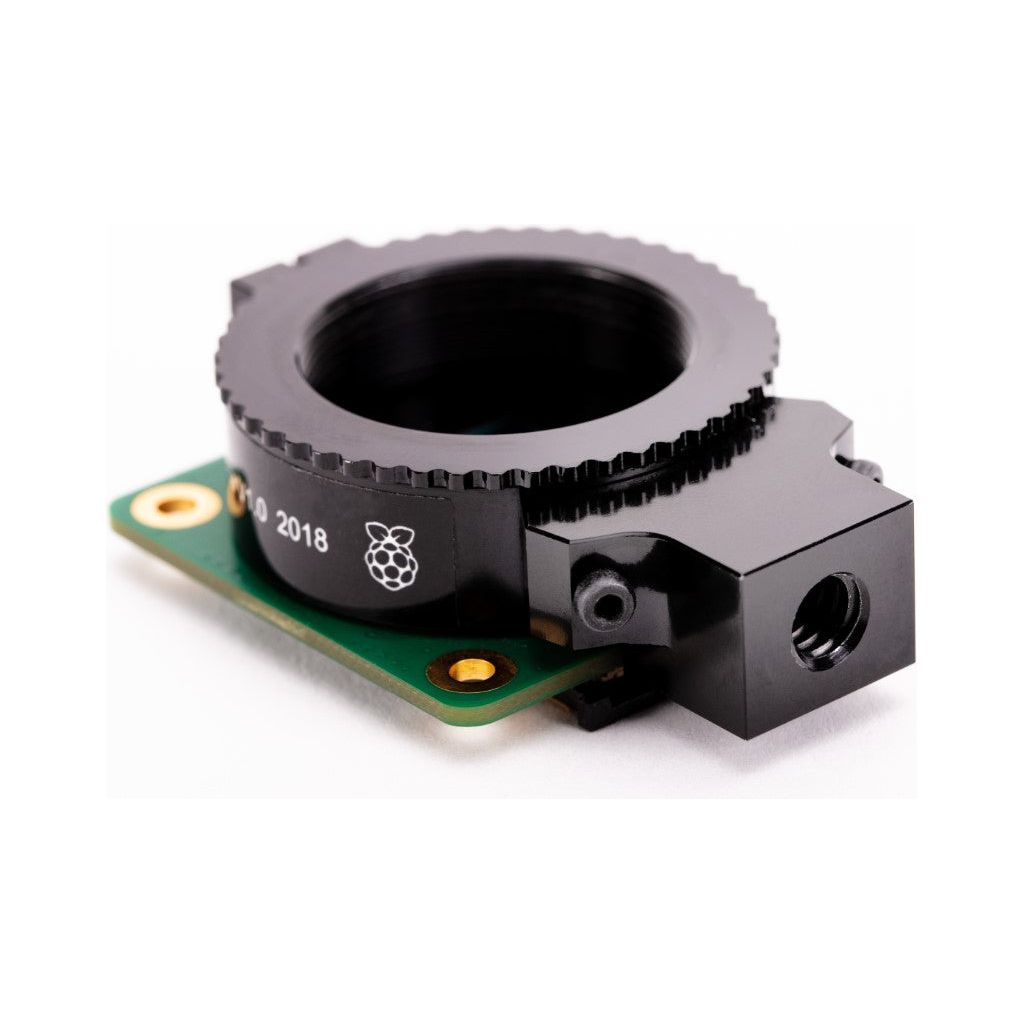

an FPC cable for connection to a Raspberry Pi computer, a milled aluminium

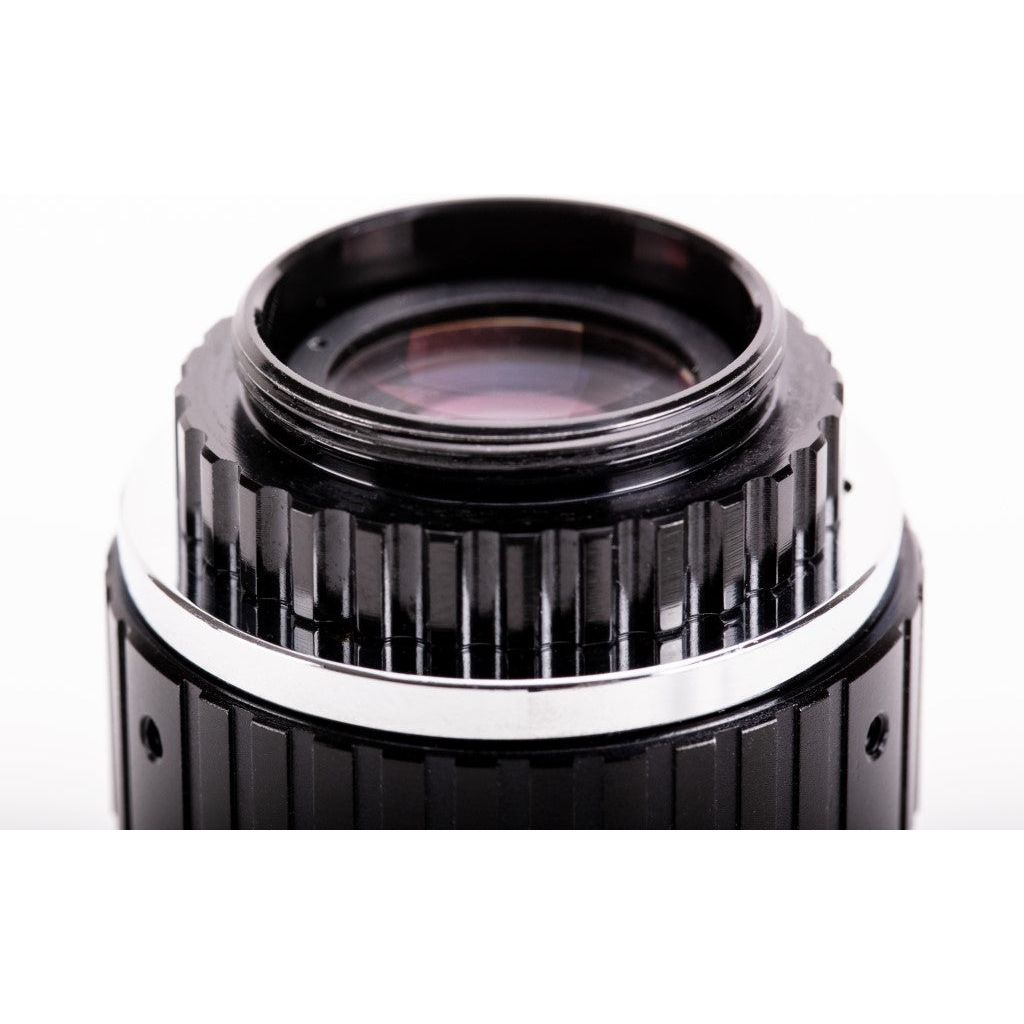

lens mount with integrated tripod mount and focus adjustment ring, and a C- to
CS-mount adapter.

Raspberry Pi High Quality Camera Specification

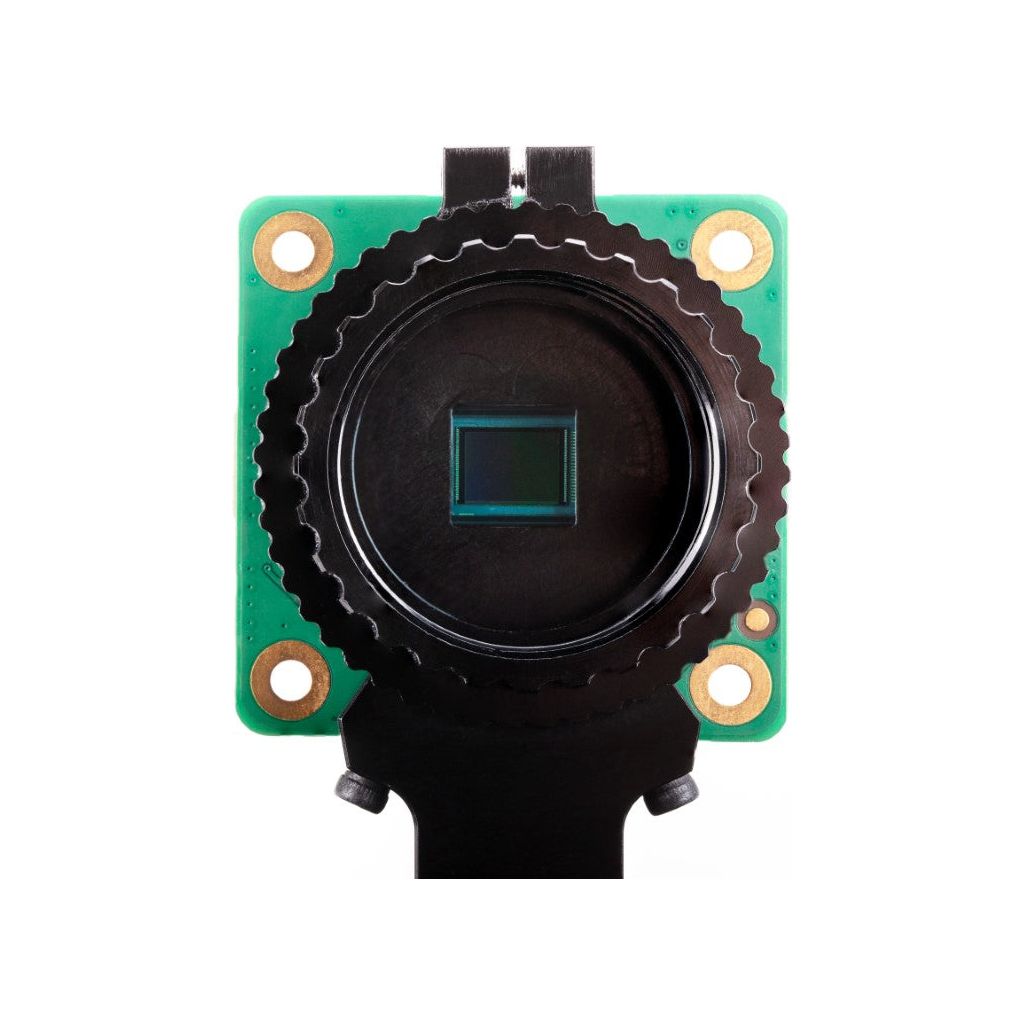

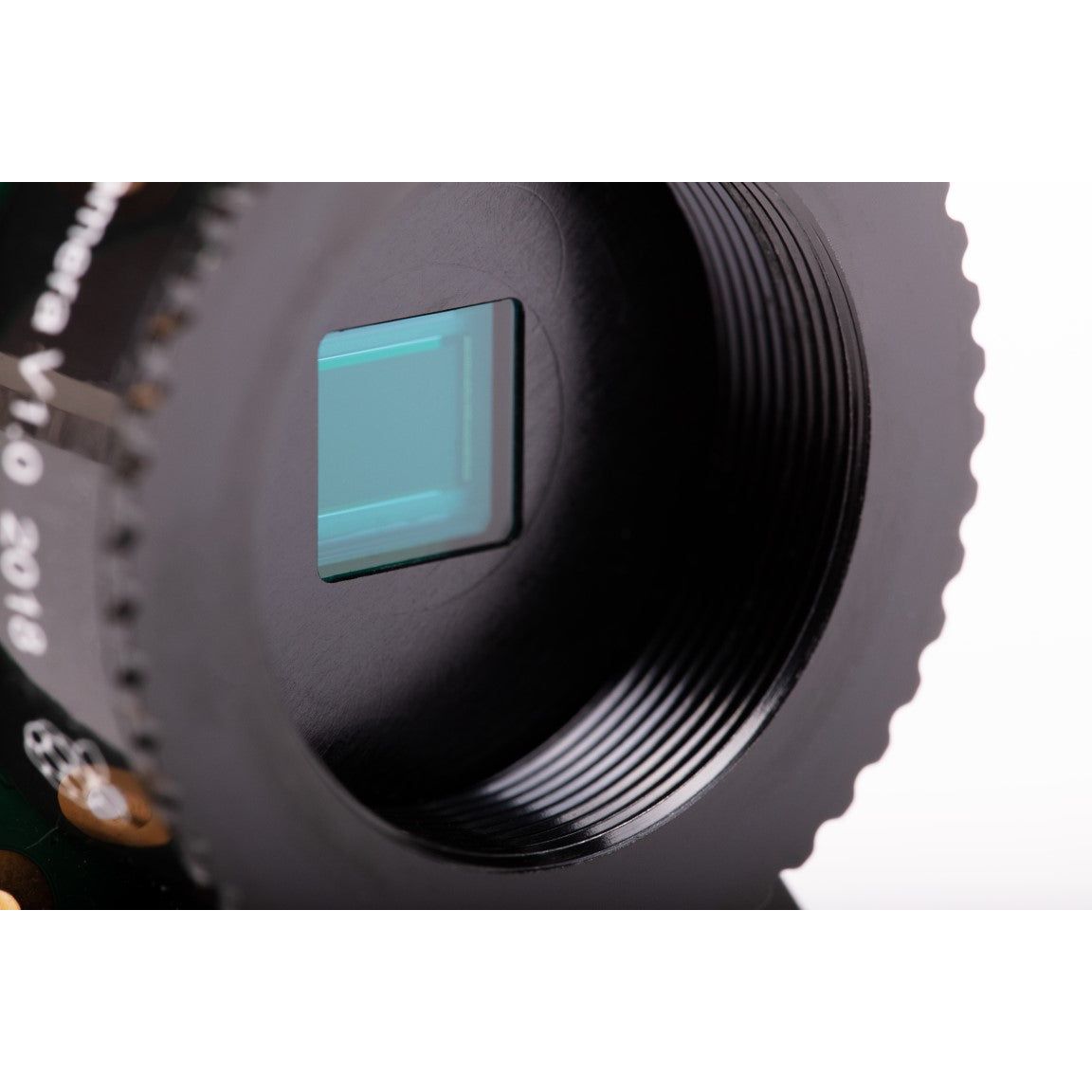

Sensor: Sony IMX477R stacked, back-illuminated sensor
12.3 megapixels
7.9 mm sensor diagonal
1.55 μm × 1.55 μm pixel size
Output: RAW12/10/8, COMP8
Back focus: Adjustable (12.5 mm–22.4 mm)
Lens standards: C-mount (C-CS adapter included) Or M12
IR cut filter: Integrated
Ribbon cable length: 200 mm
Tripod mount: 1/4”-20
Compliance: FCC 47 CFR Part 15, Subpart B, Class B Digital Device
Electromagnetic Compatibility Directive (EMC)
2014/30/EU
Restriction of Hazardous Substances (RoHS)
Directive 2011/65/EU

Click here for product Brief

Click here for a quick-start guide

Available with a C-CS Mount & M12 Mount

The CS Mount HQ Camera will accept any CS-mount lens Including:

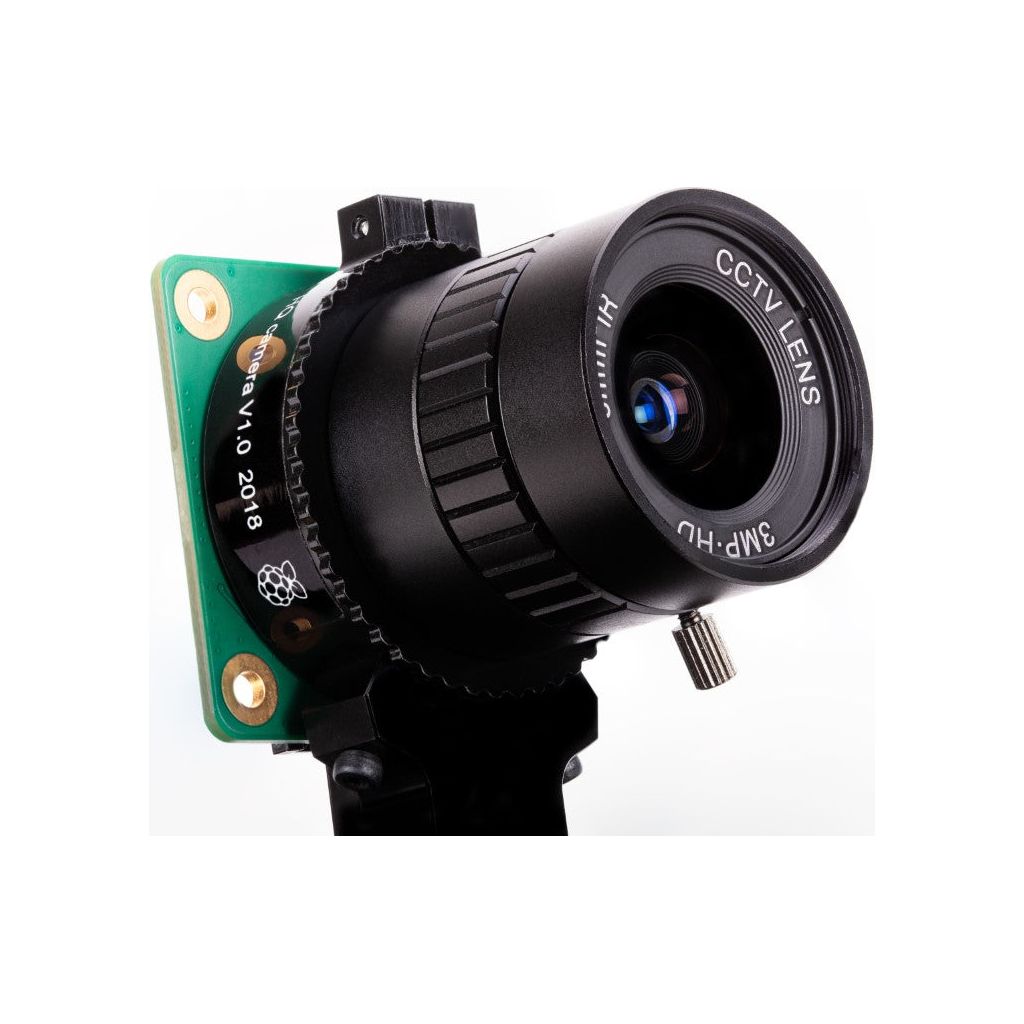

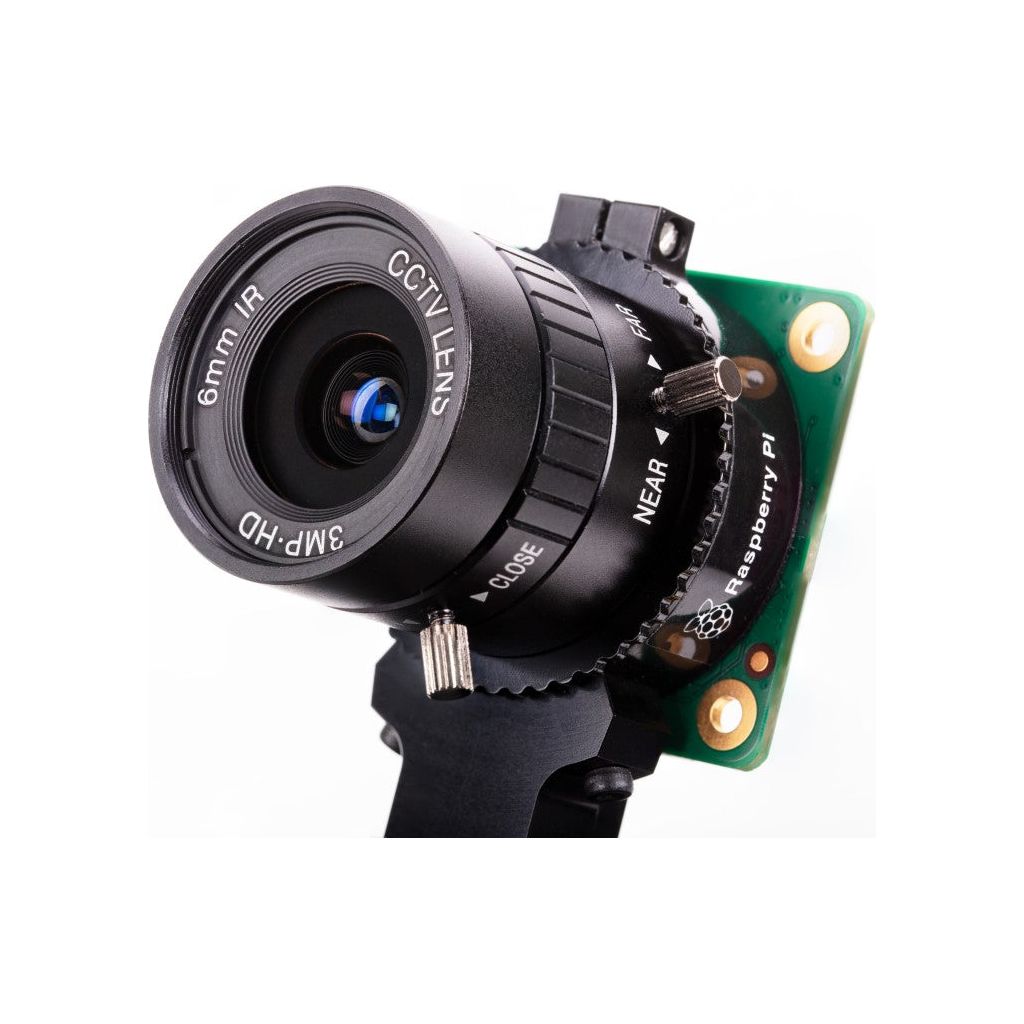

6mm wide angle lens

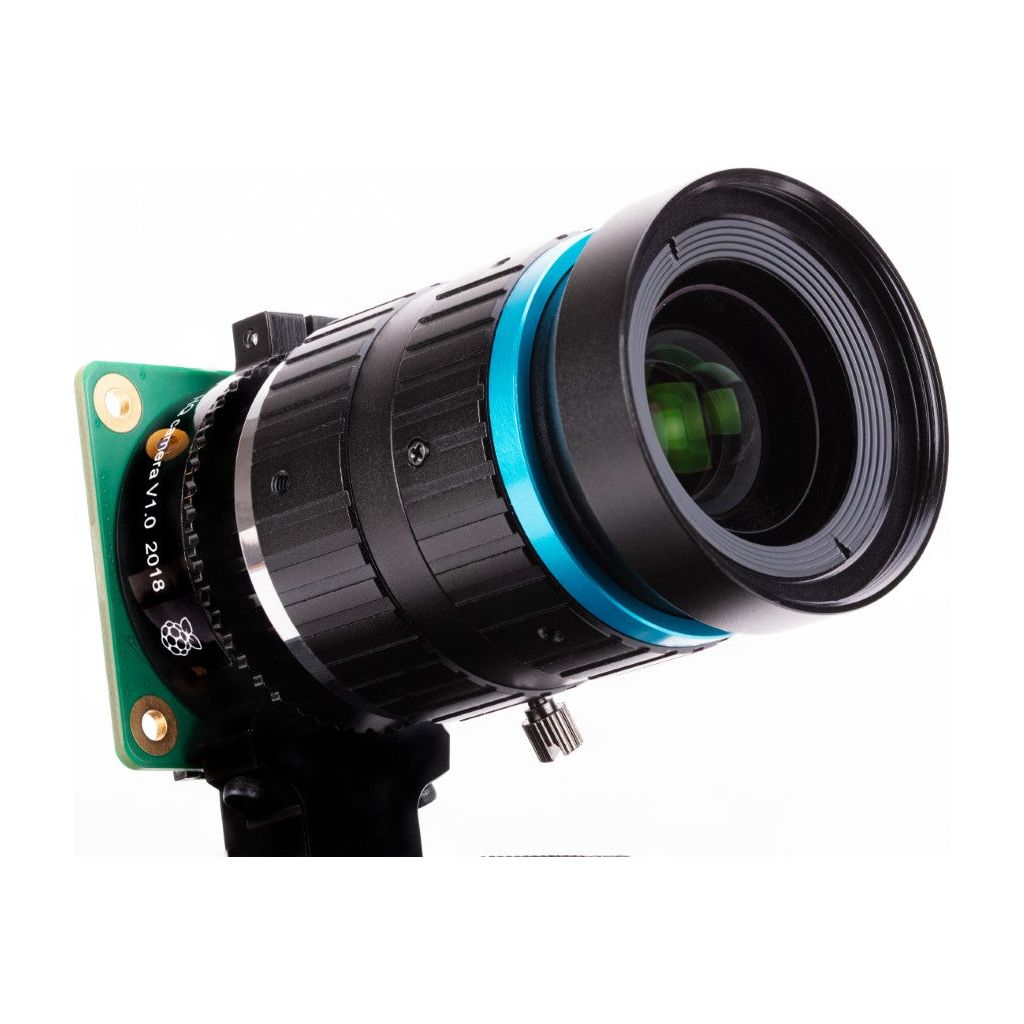

16mm telephoto lens

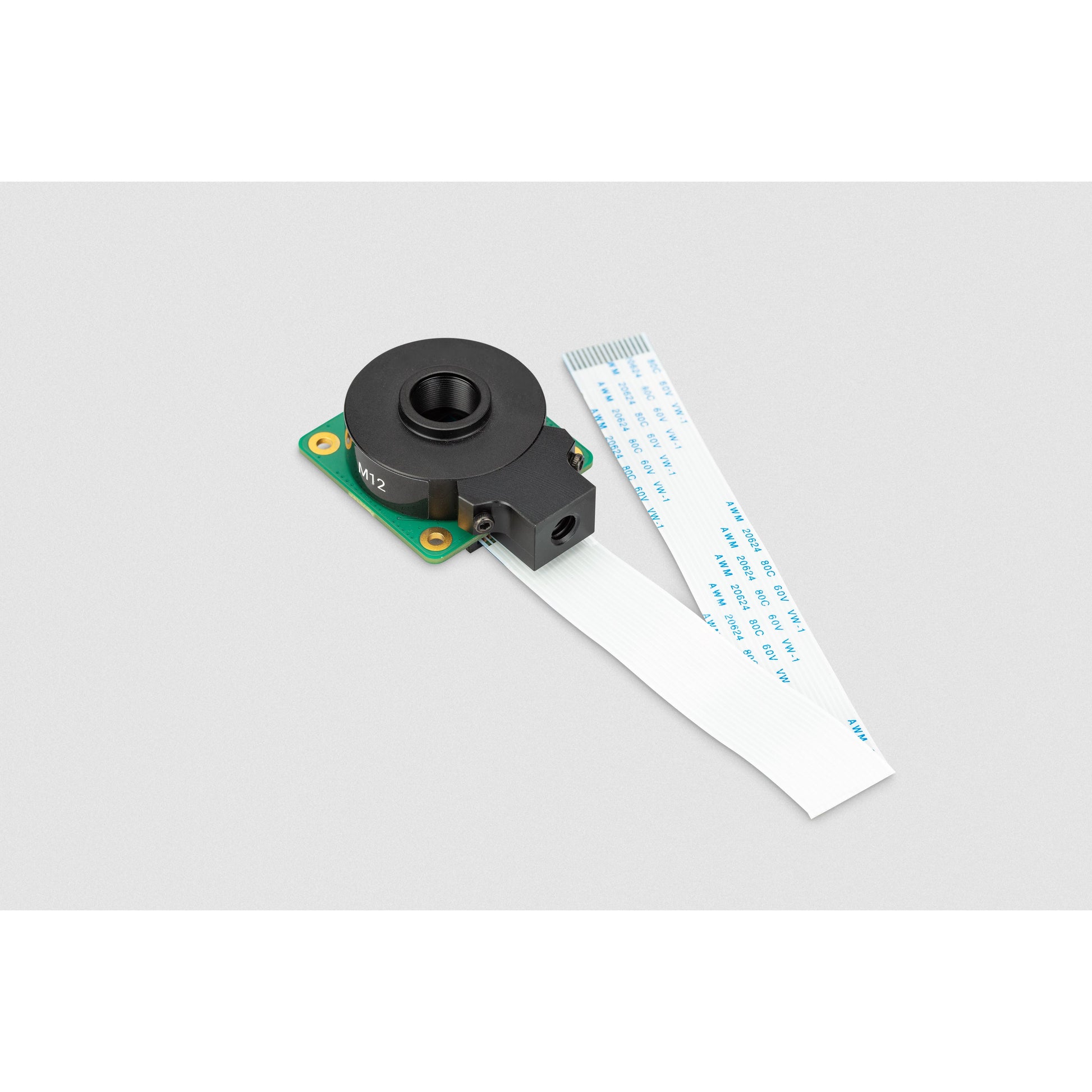

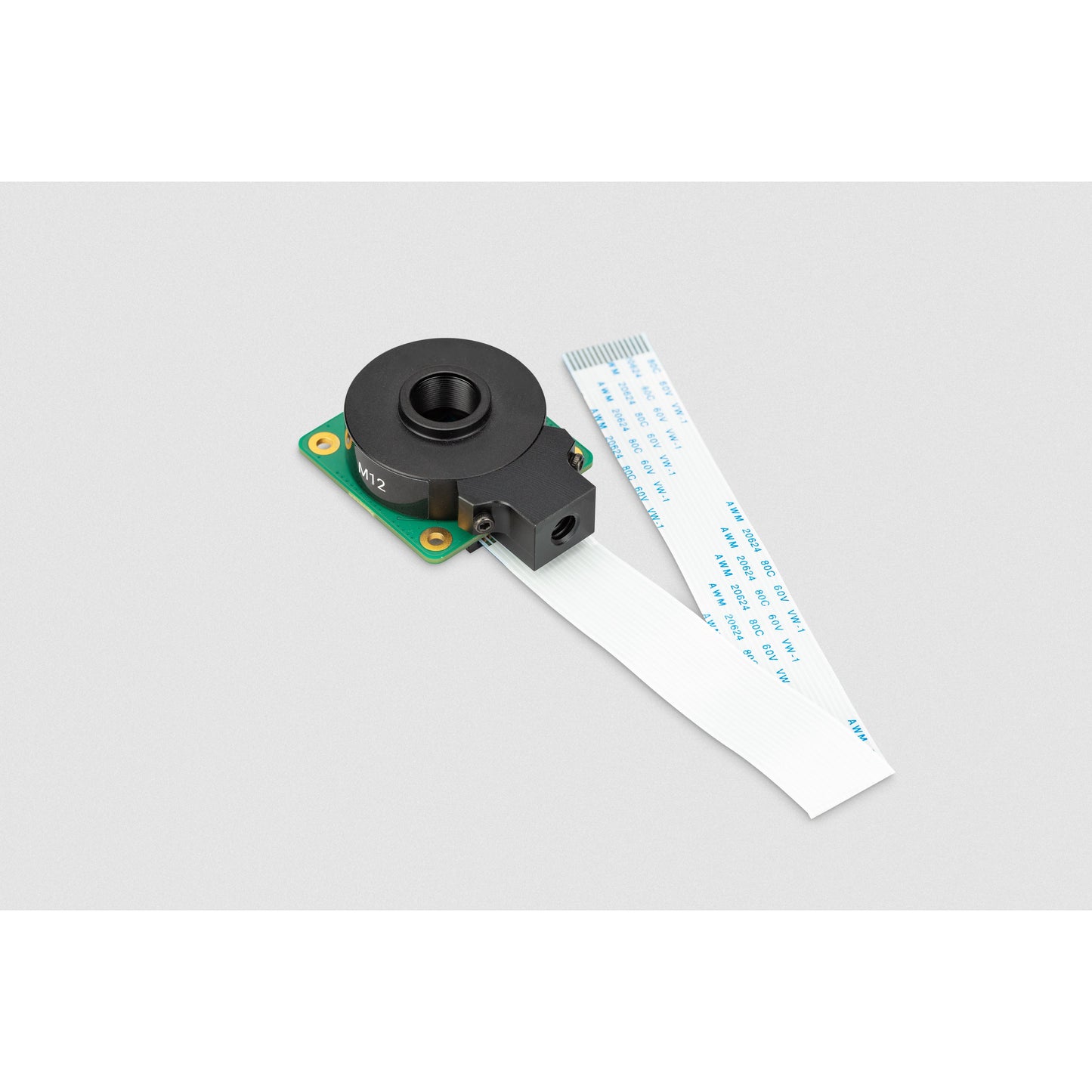

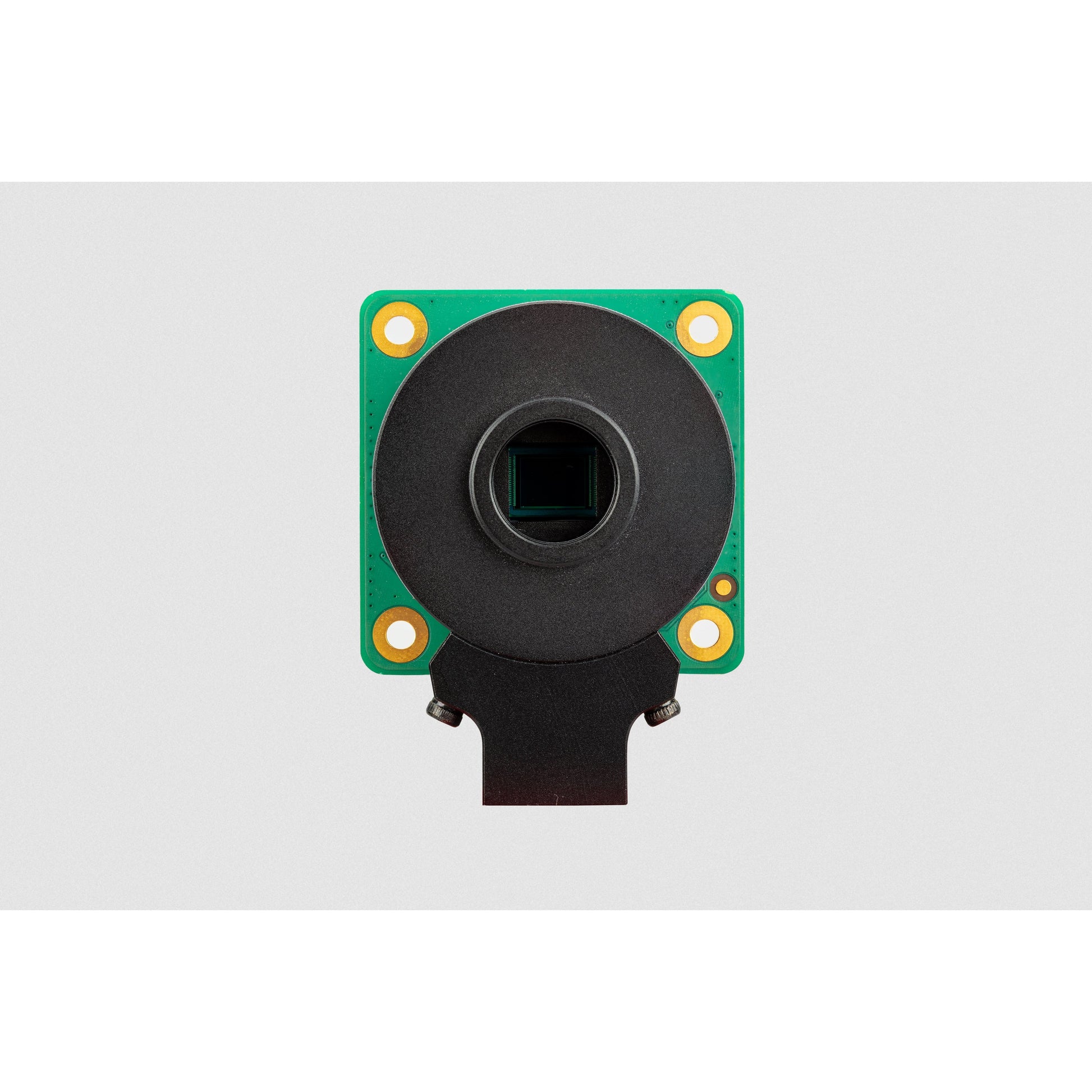

The M12 Mount HQ Camera will accept any M12-mount lens Including:
5 Megapixel, 25mm, telephoto lens
12 Megapixel, 2.7mm, wide angle
12 Megapixel, 8mm, portrait

Additional available accessories include:
Case with mounting option
Tripod
Mini Tripod

Description

The Raspberry Pi High-Quality Camera is a Higher End Camera offered directly from Raspberry Pi.

The package comprises a circuit board carrying a Sony IMX477 sensor,
an FPC cable for connection to a Raspberry Pi computer, a milled aluminium
lens mount with integrated tripod mount and focus adjustment ring, and a C- to
CS-mount adapter.

Raspberry Pi High Quality Camera Specification

Sensor: Sony IMX477R stacked, back-illuminated sensor
12.3 megapixels
7.9 mm sensor diagonal
1.55 μm × 1.55 μm pixel size
Output: RAW12/10/8, COMP8
Back focus: Adjustable (12.5 mm–22.4 mm)
Lens standards: C-mount (C-CS adapter included) Or M12
IR cut filter: Integrated
Ribbon cable length: 200 mm
Tripod mount: 1/4”-20
Compliance: FCC 47 CFR Part 15, Subpart B, Class B Digital Device
Electromagnetic Compatibility Directive (EMC)
2014/30/EU
Restriction of Hazardous Substances (RoHS)
Directive 2011/65/EU

Click here for product Brief

Click here for a quick-start guide

Available with a C-CS Mount & M12 Mount

The CS Mount HQ Camera will accept any CS-mount lens Including:
6mm wide angle lens
16mm telephoto lens

The M12 Mount HQ Camera will accept any M12-mount lens Including:
5 Megapixel, 25mm, telephoto lens
12 Megapixel, 2.7mm, wide angle
12 Megapixel, 8mm, portrait

Additional available accessories include:
Case with mounting option
Tripod
Mini Tripod

Guides & tutorials

See all →
  • 5 stars: 9 (100%)
  • 4 stars: 0 (0%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
G
George M. (San Jose, US)
So far so good

Parts arrived on time, plugged it in to Raspberry Pi 2, needed to enable one thing in firmware to get working with latest Raspberry Pi images, took some time to find the right docs for that. Software is easy as Pi, simple commands make features easy to use, very easy to script up desired functions. Found it easy to hack a cover for the camera board by using an old plastic SD card case.

C
Carl R. (Jefferson, US)
Raspi HQ cam as Allsky Camera

Worked great out of the box, I coupled mine with a Arducam 120° 32.mm FL lens and in combination built an allsky cam.
Details on my site here https://usradioguy.com/allsky/

A
Allard C. (Forestdale, US)
Nice camera

As advertised from raspberry pi, decent good camera, it was shipped promptly with good customer service.

P
Perry (San Jose, US)

Its good and got here fast

D
Dennis M.
Nice camera module. Works as des...

Nice camera module. Works as described and was shipped promptly. Will be a repeat customer when I need more such items. Thanks!

V
Vincent L.M.
Haven't had the chance to set it ...

Haven't had the chance to set it up. But they were spot on for the delivery. Thanks.

K
Kevin C.
This is my second HQ camera. Get ...

This is my second HQ camera. Get the lens for your purpose and this camera is ready to go.

G
Greg M.
The camera works great!...

The camera works great!

J
John B.
Raspberry Pi High Quality Camera ...

Raspberry Pi High Quality Camera review: Excellent camera! Be aware your image quality is entirely dependent on the lens you choose. Cheap lenses will not give you the best this 12MP sensor can deliver.

K
Kevin Z.G.

Is this compatible with the Raspi Compute Module 4 IO Board? The ribbons are different sizes so it would at least require an adapter.
