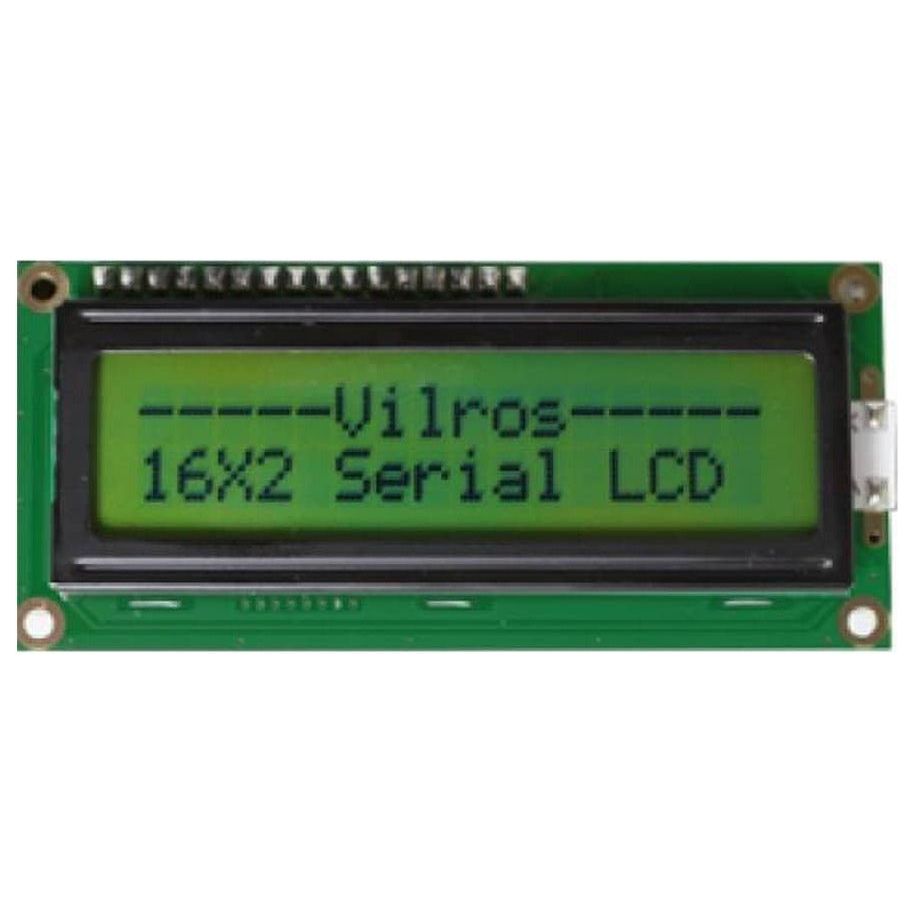

Our 16x2 LCD Module is perfect for your Raspberry Pi or Arduino setup. It's pre-soldered with pin headers, so all you need to do is plug it in and start displaying content!

Interface with 4-bit or 8-bit MPU (directly connected M6800 serial MPU)

Display Specification:

Display Character: 16 character X 2 line Character Font:5X8dors+cursor

Display color-Display background color: STN, Black-Yellow/Green

Polarize mode: positive, Transflective

Viewing angle:12:00

Display duty: 1/16 Driving bias: 1/5

Character Generator ROM (CGROM): 8320 bits (192 characterX5X8 dots) &(32

characterX5X10 dots)

Character Generator RAM (CGRAM): 64X8 bits (8 charactersX5X8 dots)

Display Data RAM (DDRAM):40X8 bits (80 characters max)

Mechanical characteristics (Unit: mm)

Extenal dimension: 80.0X36.0X9.0

View area : 64.5X16 Character font: 5X8 dots + cursor

Character size: 2.96X5.16 Dots size:0.56X0.61

Character pitch: 3.5 X5.6

Weight： g

POWER： +5V

Description

Our 16x2 LCD Module is perfect for your Raspberry Pi or Arduino setup. It's pre-soldered with pin headers, so all you need to do is plug it in and start displaying content!

Interface with 4-bit or 8-bit MPU (directly connected M6800 serial MPU)

Display Specification:

Display Character: 16 character X 2 line Character Font:5X8dors+cursor

Display color-Display background color: STN, Black-Yellow/Green

Polarize mode: positive, Transflective

Viewing angle:12:00

Display duty: 1/16 Driving bias: 1/5

Character Generator ROM (CGROM): 8320 bits (192 characterX5X8 dots) &(32

characterX5X10 dots)

Character Generator RAM (CGRAM): 64X8 bits (8 charactersX5X8 dots)

Display Data RAM (DDRAM):40X8 bits (80 characters max)

Mechanical characteristics (Unit: mm)

Extenal dimension: 80.0X36.0X9.0

View area : 64.5X16 Character font: 5X8 dots + cursor

Character size: 2.96X5.16 Dots size:0.56X0.61

Character pitch: 3.5 X5.6

Weight： g

POWER： +5V
