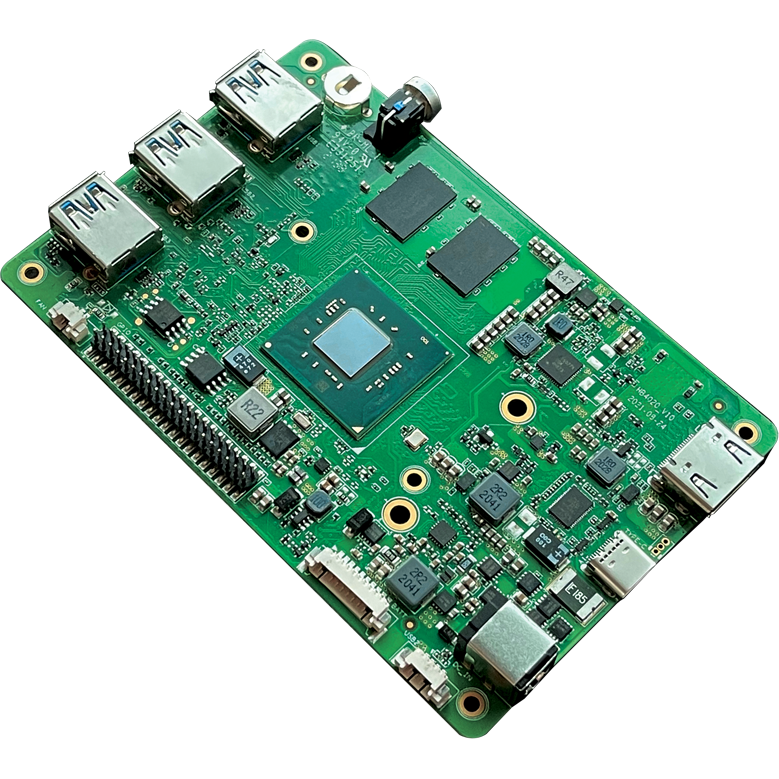

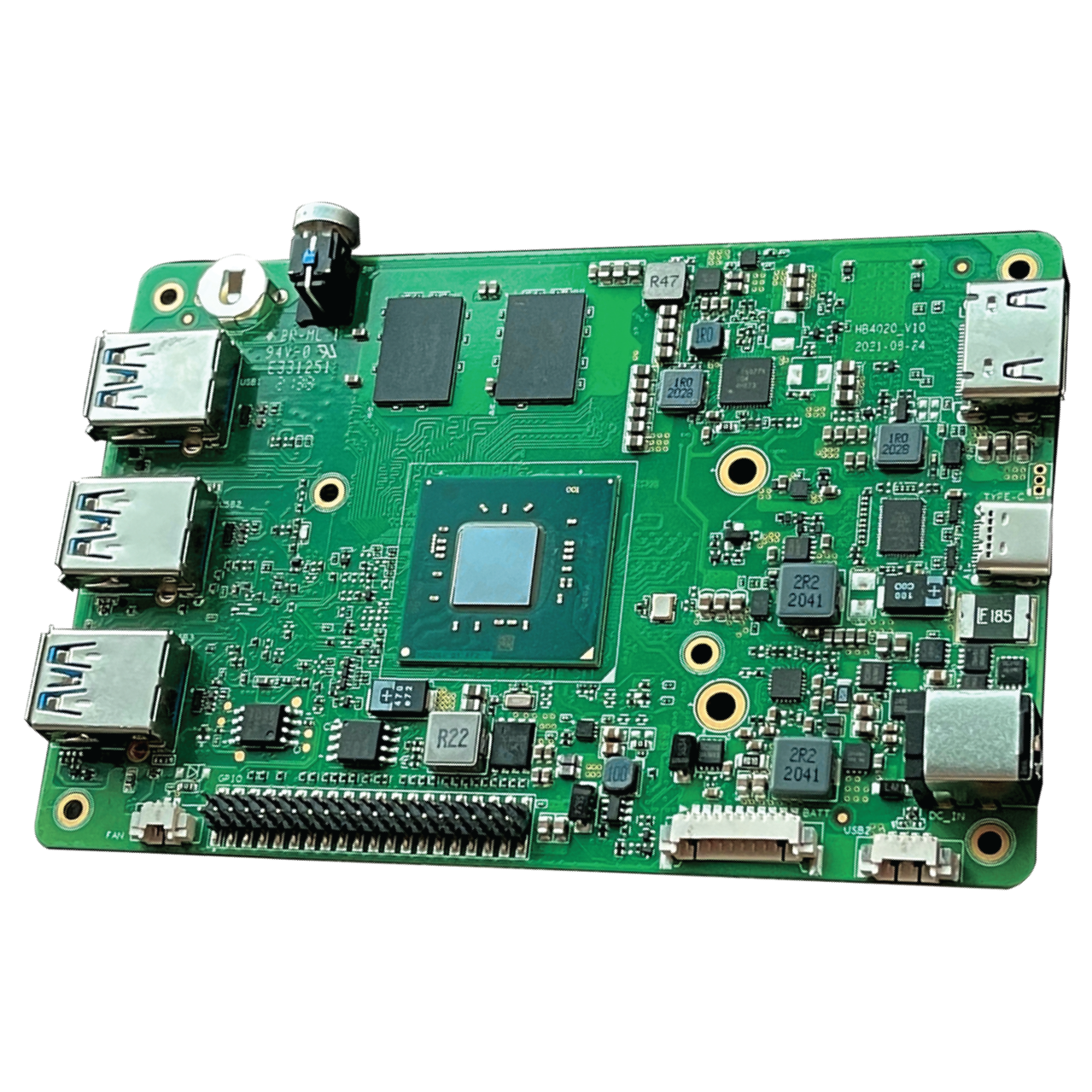

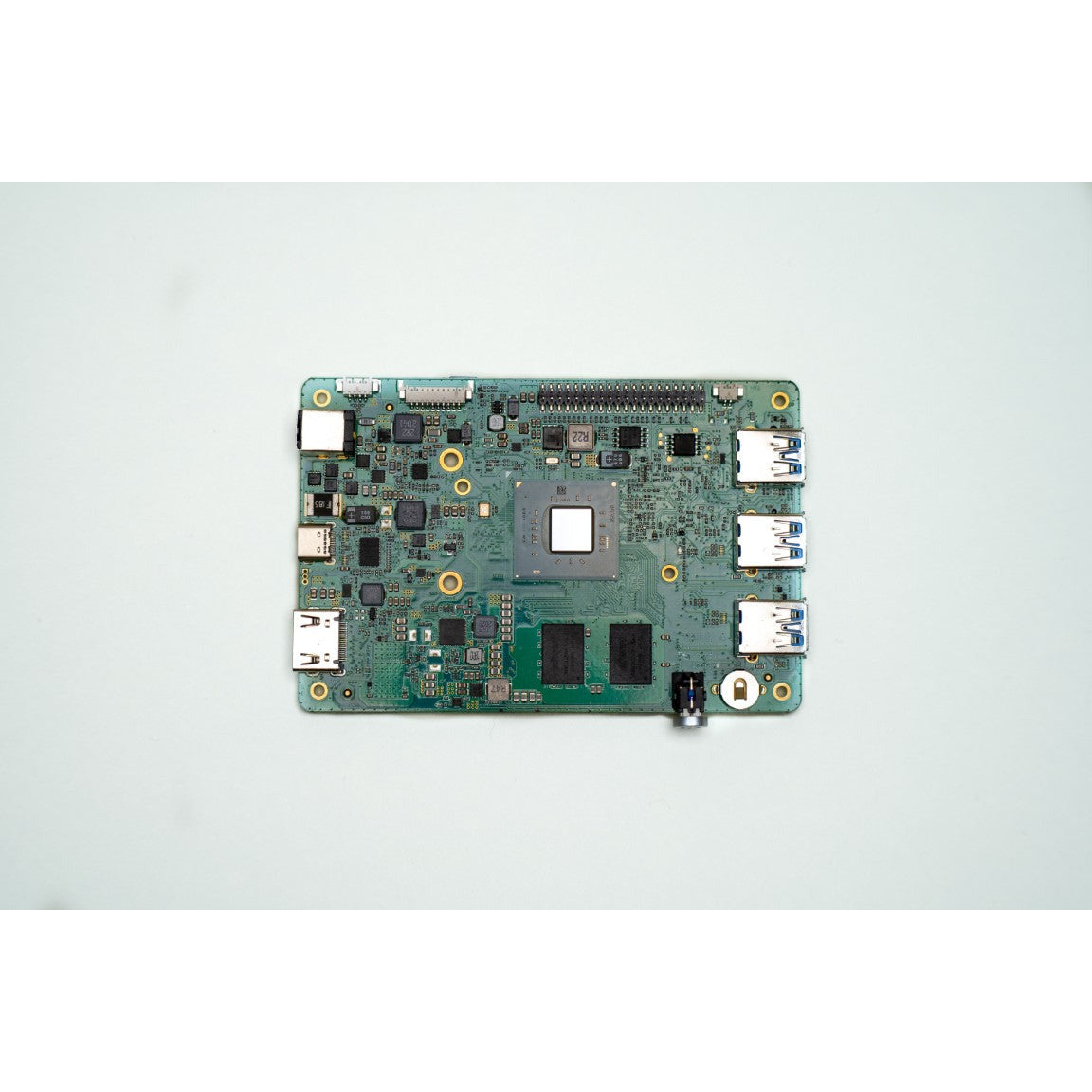

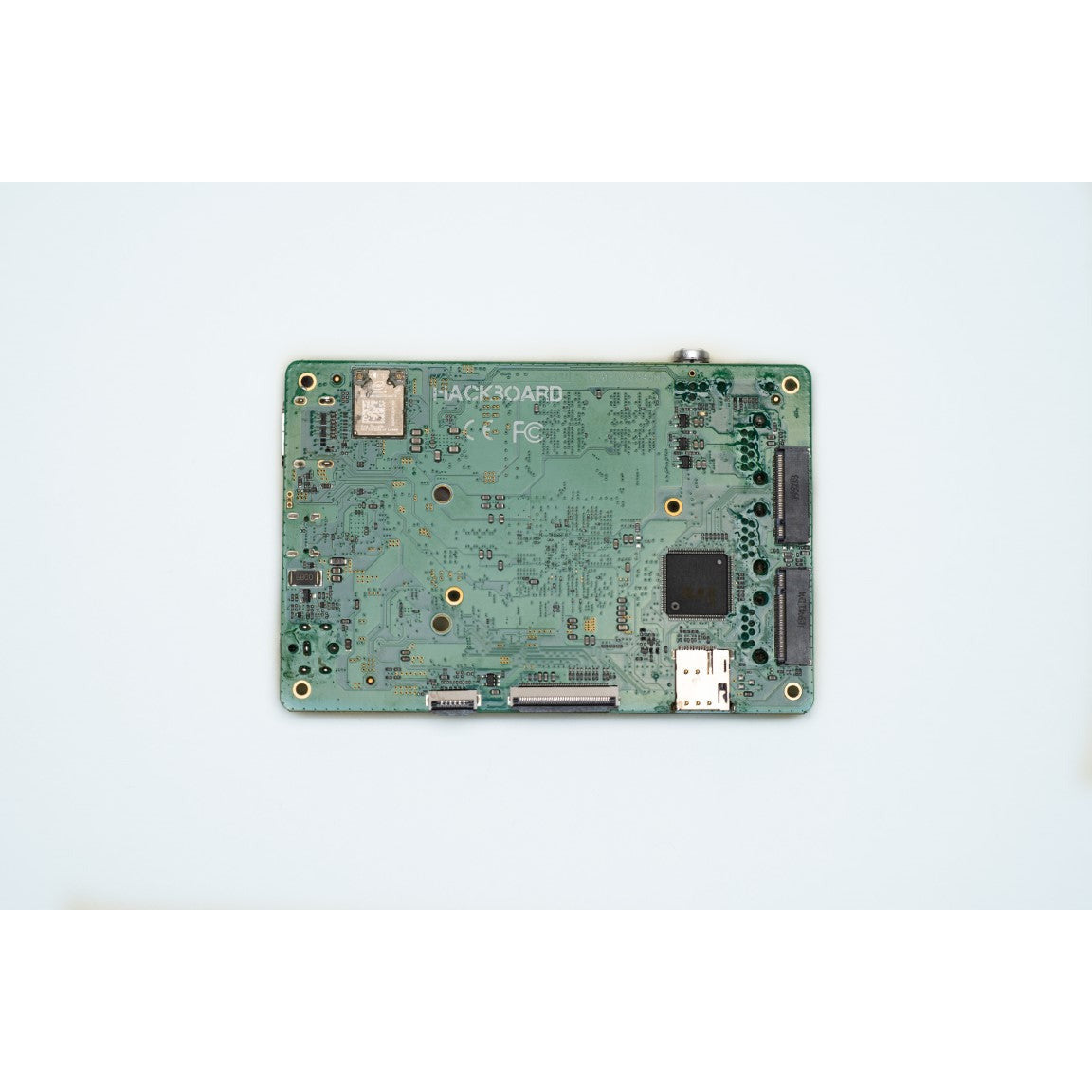

Hackboard 2 SBC

Hackboard 2 Single Board Computer (SBC) is a powerful and affordable Intel-based computer.

This SBC is available With preloaded Microsoft Windows 11 Pro or Debian Linux

The Hackboard 2 SBC comes with a 12V_DC/3A international power supply, a heatsink, two board-mountable antennas, an instruction pamphlet, and stickers.

This SBC offers optional 4G/5G connectivity, Direct X support, Intel quick sync video, and 4GB DDR4 RAM memory.

The Hackboard 2 features Intel Celeron N3350 processor, 64-Bit dual-core at 2.4GHz, 64GB eMMC, touch interface, BLUETOOTH^® 4.2, and Gigabit Ethernet. This SBC is well suited for a large and diverse set of possible projects like entertainment systems, home automation controllers, smart-home peripherals, and sensor gateways.

Hackboard 2 Product Tech Sheet

Includes

• Hackboard 2 Single Board Computer (Choose OS & RAM Options)
• 12V_DC, 3A international power supply
• Heatsink
• 10-pin 3.7V rechargeable battery input connector
• Small cell battery for up to two years BIOS backup

 Performance

• Intel Celeron N4020 Dual-Core Processor, 64-bit, up to 2.8GHz
• 4GB or 8 GB of DDR4 RAM
• Intel UHD graphics processor

 Storage

• Storage options include 64GB, 128GB, 256GB or 512GB of on-board eMMC storage (solid state SATA drives) using M.2 slot
• Up to 4 terabytes of storage using two M.2 slots
• Bios Battery Backup up to 2 years

 Connectivity

• Intel Dual Band WiFi – AC9560. Delivers speeds up to 1.73Gbps
• Bluetooth 5.1
• Optional 4G or 5G connectivity

 Expandability

• Intel Dual Band WiFi – AC9560; delivers speeds up to 1.73Gbps
• Bluetooth 5.1
• 4G / 5G (M.2) optional module
• 3 USB 3.0
• 1 USB-C
• HDMI 2.1 (4K)
• 40-pin GPIO
• 30-pin screen eDP 11.6”-15.6”
• 6-pin touch-screen interface
• 5-pin speaker L/R connector
• 10-pin battery input connector 3.7V
• 5-pin USB 2 camera connection

Software

• Microsoft Windows 10 Pro (activated) or Debian Linux
• Python
