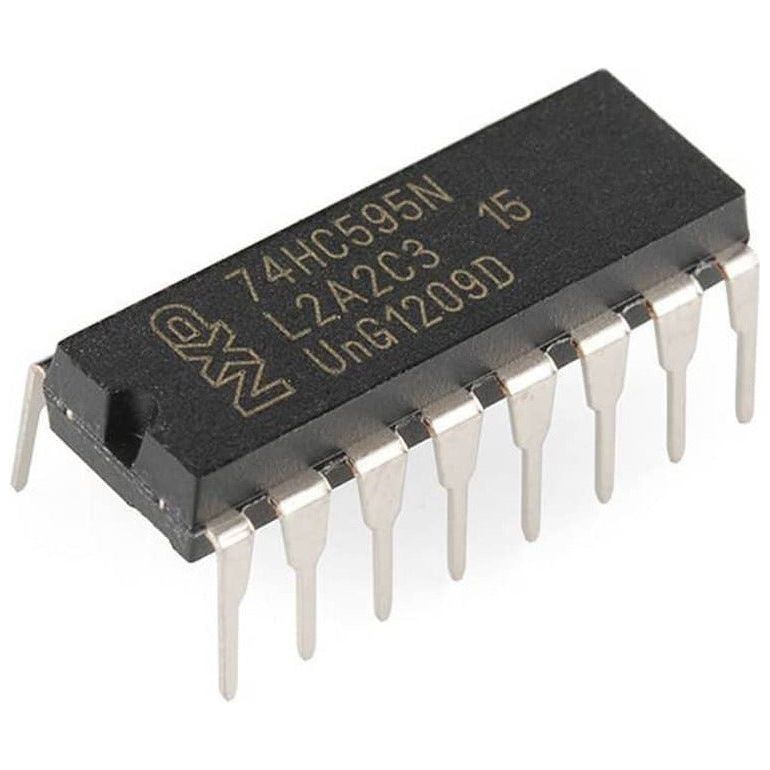

Arduino Shift Register

Arduino Shift Register

Model #: SHFT_RSSTR In Stock

$2.50 FREE Shipping

What's Included
  • 8-Bit Serial-In, Parallel-Out Shift
  • Wide Operating Voltage Range of 2 V to 6 V
  • High-Current 3-State Outputs Can Drive Up to 15 LSTTL Loads
  • Low Power Consumption: 80-μA (Maximum) ICC
  • tpd = 13 ns (Typical)

Arduino Shift Register

An Arduino Shift Register is a digital memory circuit found in calculators, computers, and data-processing systems. Bits (binary digits) enter the shift register at one end and emerge from the other end. The two ends are called left and right. Flip flops, also known as bistable gates, store and process the data. Use the Arduino Shift Register to reduce pin use and wire counts and to store data thereby taking the load off your CPU.

  • 8-Bit Serial-In, Parallel-Out Shift
  • Wide Operating Voltage Range of 2 V to 6 V
  • High-Current 3-State Outputs Can Drive Up to 15 LSTTL Loads
  • Low Power Consumption: 80-μA (Maximum) ICC
  • tpd = 13 ns (Typical)
