Introducing the Pico H, Pico W, and Pico WH from Raspberry Pi
Three New Picos To Love
The new wireless-enabled Pico W model, as well as Pico H and Pico WH models with pre-soldered connectors, builds on the enormous popularity of the Raspberry Pi Pico that was launched in January 2021. The RP2040 chip, designed by Raspberry Pi, is at the heart of each product and features two ARM Cortex-M0+ cores clocked at 133MHz; 256KB RAM; 30 GPIO pins; and a broad range of interfacing options. This is paired with 2MB of onboard QSPI Flash memory for code and data storage.
Basic Starter Kit INCLUDES:
Raspberry Pi Pico W Board
RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom
Infineon CYW43439 wireless chip. (CYW43439 supports IEEE 802.11 b/g/n wireless LAN, and Bluetooth 5.2; of these, only wireless LAN is supported at launch)
Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
264KB of SRAM, and 2MB of on-board Flash memory
Castellated module allows soldering direct to carrier boards
USB 1.1 with device and host support
Low-power sleep and dormant modes
Drag-and-drop programming using mass storage over USB
26 × multi-function GPIO pins
2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels
Accurate clock and timer on-chip
Accelerated floating-point libraries on-chip
8 × Programmable I/O (PIO) state machines for custom peripheral support
Pin header Set For RP Pico
2x 0.1" 20 Male Pin Header
1x 0.1" 3 Pin Male Header
USB Type-A to Micro Type-B 2.0 Cable
Great for Raspberry Pi Pico
3 AA Battery Holder With Micro USB Connector
Power the Pico on the GO
Neoprene Parts Storage Case With Pocket
Internal Dimensions: 6 x 4.75 inches
Pocket for accessories storage

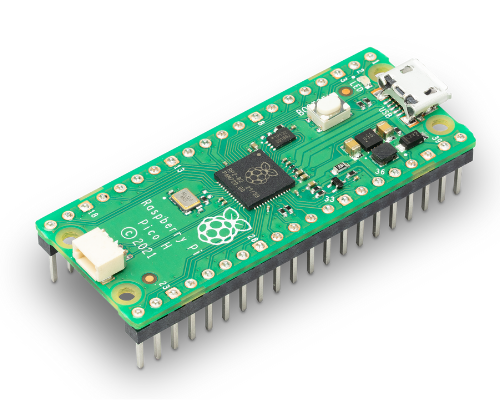

Raspberry Pi Pico H and Pico WH are fitted with a pre-soldered 40-way header and 3-pin JTAG connector, for greater ease of use in hobbyist and industrial applications.
The Raspberry Pi Pico W incorporates an Infineon CYW43439 wireless chip. CYW43439 supports IEEE 802.11 b/g/n wireless LAN, and Bluetooth 5.2; of these, only wireless LAN is supported at launch.
Raspberry Pi Pico WH incorporates Presoldered Headers/3-pin JTAG connectoran,and an Infineon CYW43439 wireless chip. CYW43439 supports IEEE 802.11 b/g/n wireless LAN, and Bluetooth 5.2; of these, only wireless LAN is supported at launch.
Get yours today
These new Picos offer even more opportunities for makers to get creative with their projects. With the added wireless connectivity of the Pico W, makers can now explore a whole new world of IoT applications. And with the Pico H and Pico WH can easily add headers to their Picos for even more flexibility. So whatever your project, there’s a Pico for you.
If you’re new to Picos or want a refresher, check out ourPico Getting Started Guide. This guide will take you through everything you need to know to get started with these new Picos, including how to set them up and start coding.
So what are you waiting for? Get creative with your Picos today!
