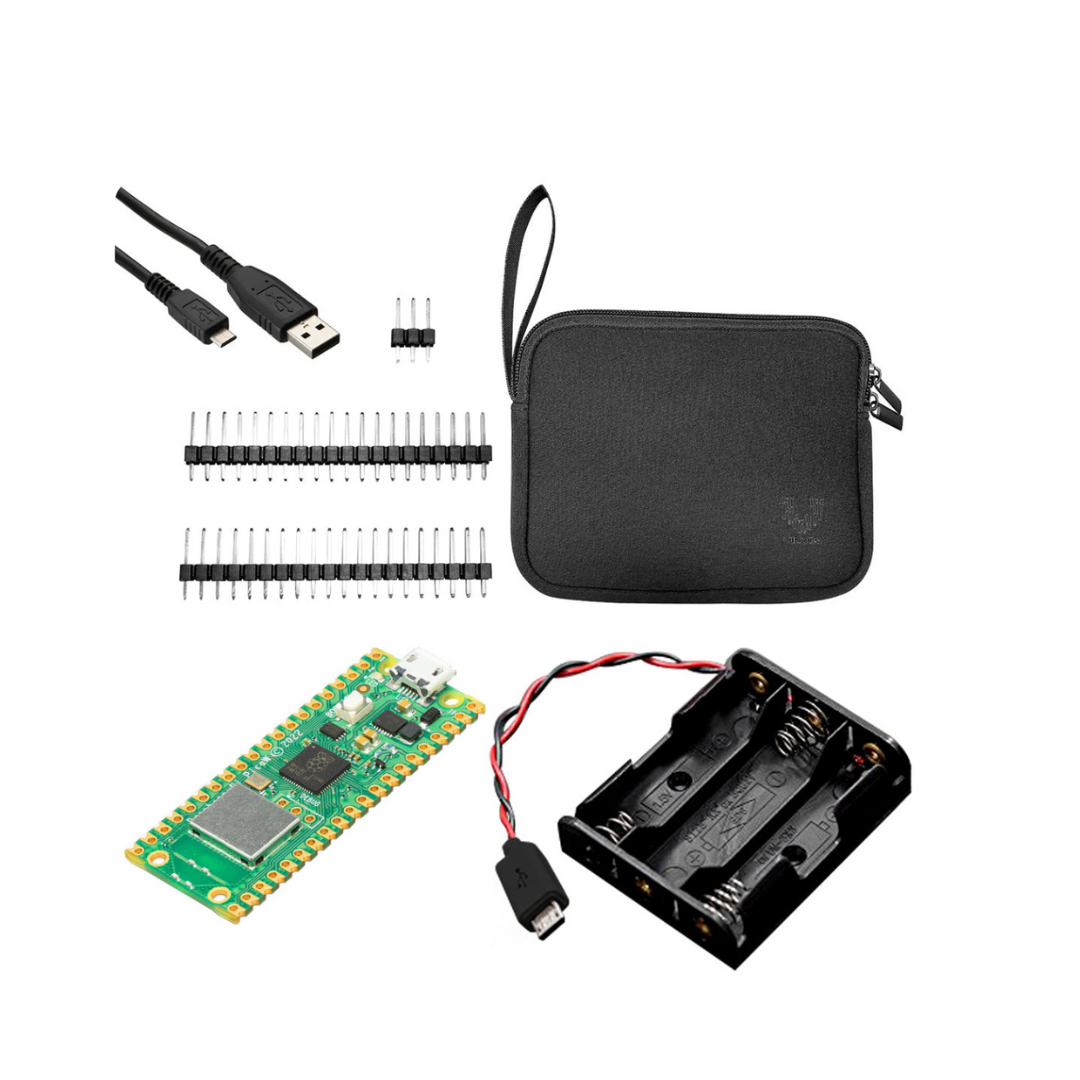

INCLUDES:

Raspberry Pi Pico W Board

RP2040 microcontroller chip designed by Raspberry Pi in the United Kingdom

Infineon CYW43439 wireless chip. (CYW43439 supports IEEE 802.11 b/g/n wireless LAN, and Bluetooth 5.2; of these, only wireless LAN is supported at launch)

Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz

264KB of SRAM, and 2MB of onboard Flash memory

The castellated module allows soldering directly to carrier boards

USB 1.1 with device and host support

Low-power sleep and dormant modes

Drag-and-drop programming using mass storage over USB

26 × multi-function GPIO pins

2 × SPI, 2 × I2C, 2 × UART, 3 × 12-bit ADC, 16 × controllable PWM channels

Accurate clock and timer on-chip

Temperature sensor

Accelerated floating-point libraries on-chip

8 × Programmable I/O (PIO) state machines for custom peripheral support

Pin header Set For RP Pico

2x 0.1" 20 Male Pin Header

1x 0.1" 3 Pin Male Header

USB Type-A to Micro Type-B 2.0 Cable

5-Pin

28/28AWG

Great for Raspberry Pi Pico

3 AA Battery Holder With Micro USB Connector

Power the Pico on the GO
