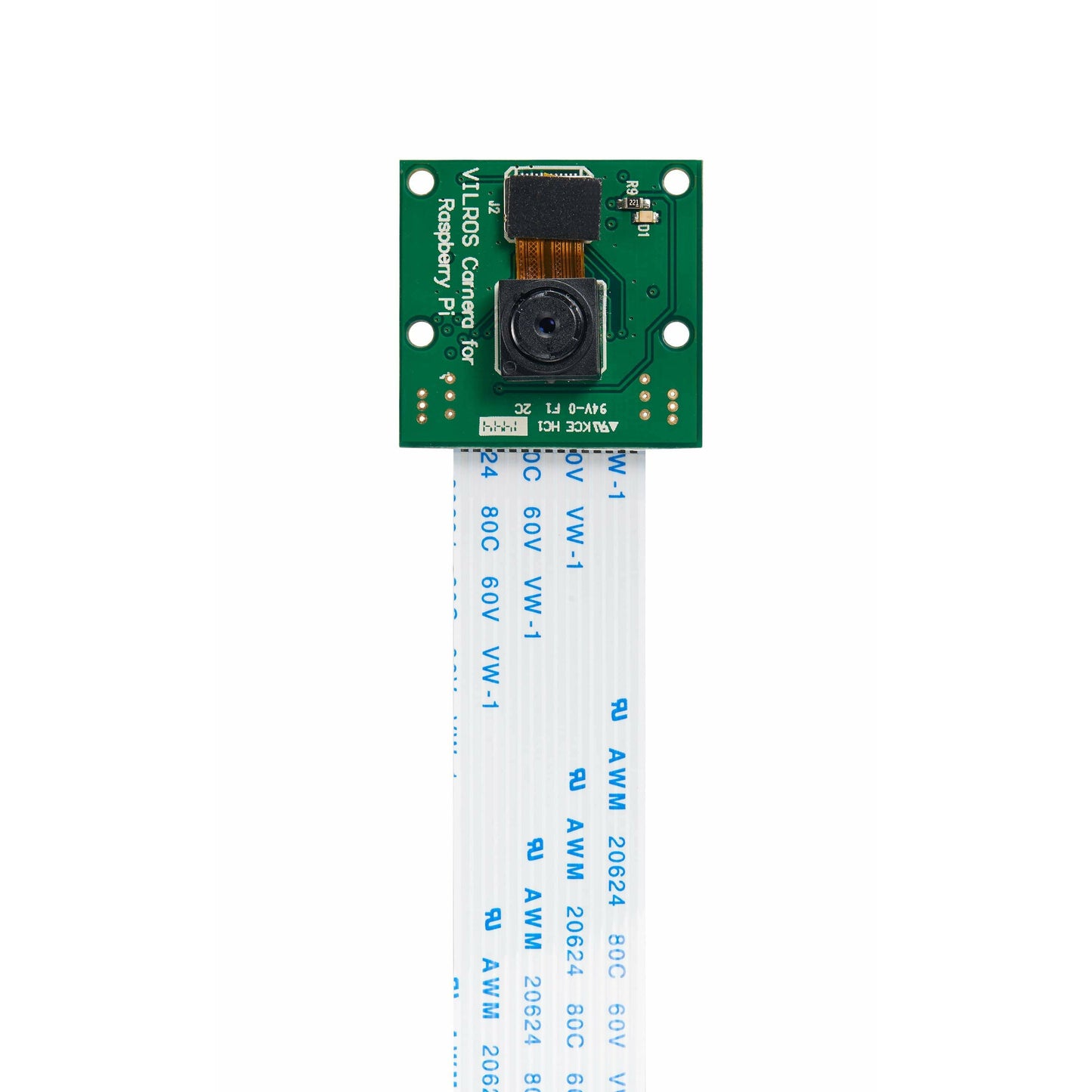

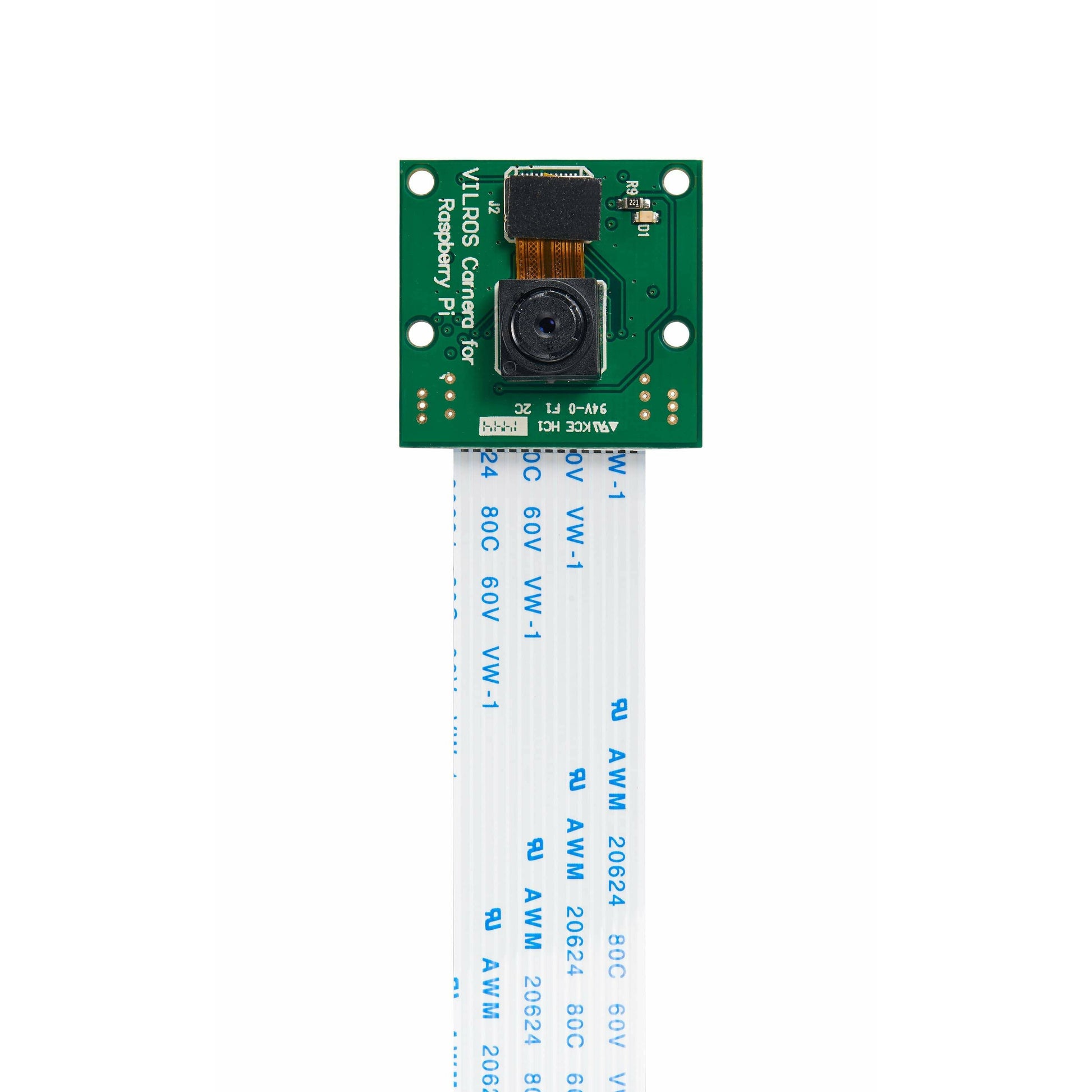

Vilros 5MP Camera Module

In Stock

SKU: VILP154

Raspberry Pi Camera Video Module 5 Megapixel 1080p Mini Webcam Sensor OV5647 for Raspberry Pi Model A/B/B+, RPi 2B Pi 3B 3B+ and Pi 4B

This is a camera module for Raspberry Pi. You can use it for Raspberry Pi 3 Model A/B/B+ 4 / 3 / 2 or Raspberry Pi Zero and Zero W just by changing the camera cable. And this camera can capture photos but it can also capture full HD video at 1920×1080. It is good and convenient for users.

The sensor itself has a native resolution of 5 megapixels and has a fixed focus lens onboard. In terms of still images, the camera is capable of 2592 x 1944 pixel static images and also supports 1080p30, 720p60, and 640x480p60/90 video.

It attaches to Raspberry Pi by way of one of the two small sockets on the board's upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing with cameras.

Features:
The angle of View: 54 x 41 degrees
Field of View: 2.0 x 1.33 m at 2 m
Full-frame SLR lens equivalent: 35 mm
Fixed Focus: 1 m to infinity
Max frame rate: 30fps
15 cm flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector

Application:
Cellular phones, PDAs, Toys
Other battery-powered products
Can be used in all Raspberry Pi platforms

Package Included:
1 x Camera
1 x 15 cm Raspberry Pi 3 Camera Cable

by Vilros

Vilros 5MP Camera Module

$12.99
Free Shipping

Raspberry Pi Camera Video Module 5 Megapixel 1080p Mini Webcam Sensor OV5647 for Raspberry Pi Model A/B/B+, RPi 2B Pi 3B 3B+ and Pi 4B

This is a camera module for Raspberry Pi. You can use it for Raspberry Pi 3 Model A/B/B+ 4 / 3 / 2 or Raspberry Pi Zero and Zero W just by changing the camera cable. And this camera can capture photos but it can also capture full HD video at 1920×1080. It is good and convenient for users.

The sensor itself has a native resolution of 5 megapixels and has a fixed focus lens onboard. In terms of still images, the camera is capable of 2592 x 1944 pixel static images and also supports 1080p30, 720p60, and 640x480p60/90 video.

It attaches to Raspberry Pi by way of one of the two small sockets on the board's upper surface. This interface uses the dedicated CSI interface, which was designed especially for interfacing with cameras.

Features:
The angle of View: 54 x 41 degrees
Field of View: 2.0 x 1.33 m at 2 m
Full-frame SLR lens equivalent: 35 mm
Fixed Focus: 1 m to infinity
Max frame rate: 30fps
15 cm flat ribbon cable to 15-pin MIPI Camera Serial Interface (CSI) connector

Application:
Cellular phones, PDAs, Toys
Other battery-powered products
Can be used in all Raspberry Pi platforms

Package Included:
1 x Camera
1 x 15 cm Raspberry Pi 3 Camera Cable

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Soggynode
Works well for monitoring prints, 3b+/Octoprint

Installed in a 3b+/Octoprint build and it works fine. The camera is well suited for monitoring prints but probably not the best option for time lapse captures. The camera fits a printed case designed for a standard Pi camera module without any modifications required. There's an Octoprint camera adjustment plugin available that works well to adjust the brightness, contrast etc. Mine was a bit dark prior to installing the plugin but looks good now. Overall, I'm quite happy with this camera module and would buy it again.
