Raspberry Pi Compute Module 5 IO Board

Overview

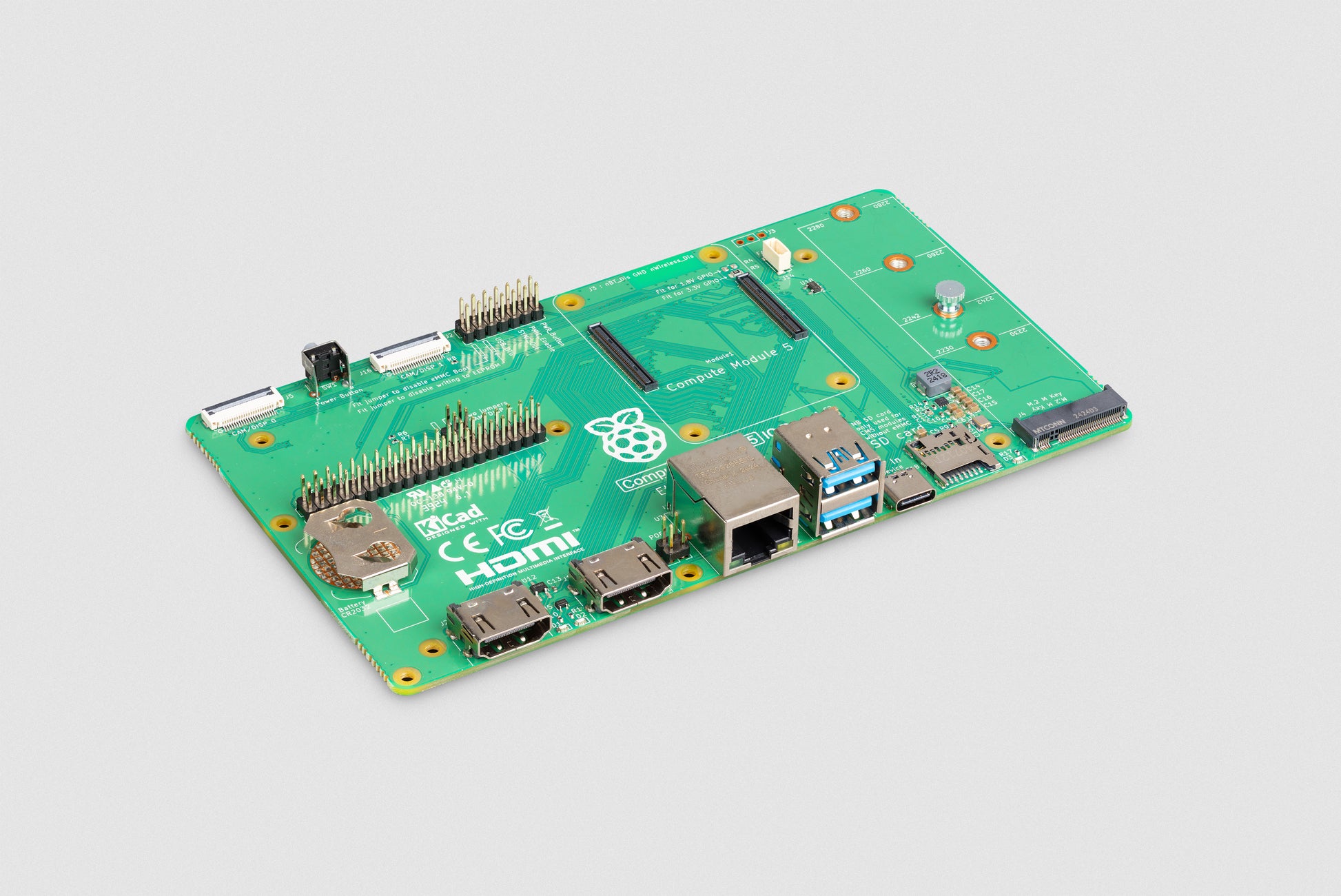

The Raspberry Pi Compute Module 5 IO Board provides a starting point for those wishing
to integrate Raspberry Pi Compute Module 5 into products, while also serving as an
alternative Raspberry Pi form factor for industrial applications.
It breaks out the full set of peripheral interfaces provided by Compute Module 5 to the
standard connectors used by Raspberry Pi 5 (with full-size HDMI in place of micro HDMI),
enabling design engineers to take full advantage of the processing and interfacing
capabilities of our flagship modular product.
The IO Board accepts the complete range of Compute Module 5 parts and is available as
a reference design in KiCad format.

Features

• Standard 40-pin GPIO connector
• 2 x full-size HDMI 2.0 connectors
• 2 x 4-lane MIPI DSI/CSI-2 FPC connectors (22-pin, 0.5mm pitch cable)
• 2 x USB 3.0 connectors
• Gigabit Ethernet jack with PoE support (requires a separate Raspberry
Pi PoE HAT)
• M.2 M-key PCIe socket (for 2230, 2242, 2260 and 2280 modules)
• MicroSD card socket (for use with Lite modules)
• RTC battery socket
• 4-pin fan connector
• External power via a USB-C power supply (sold separately)

For a full product brief click here
