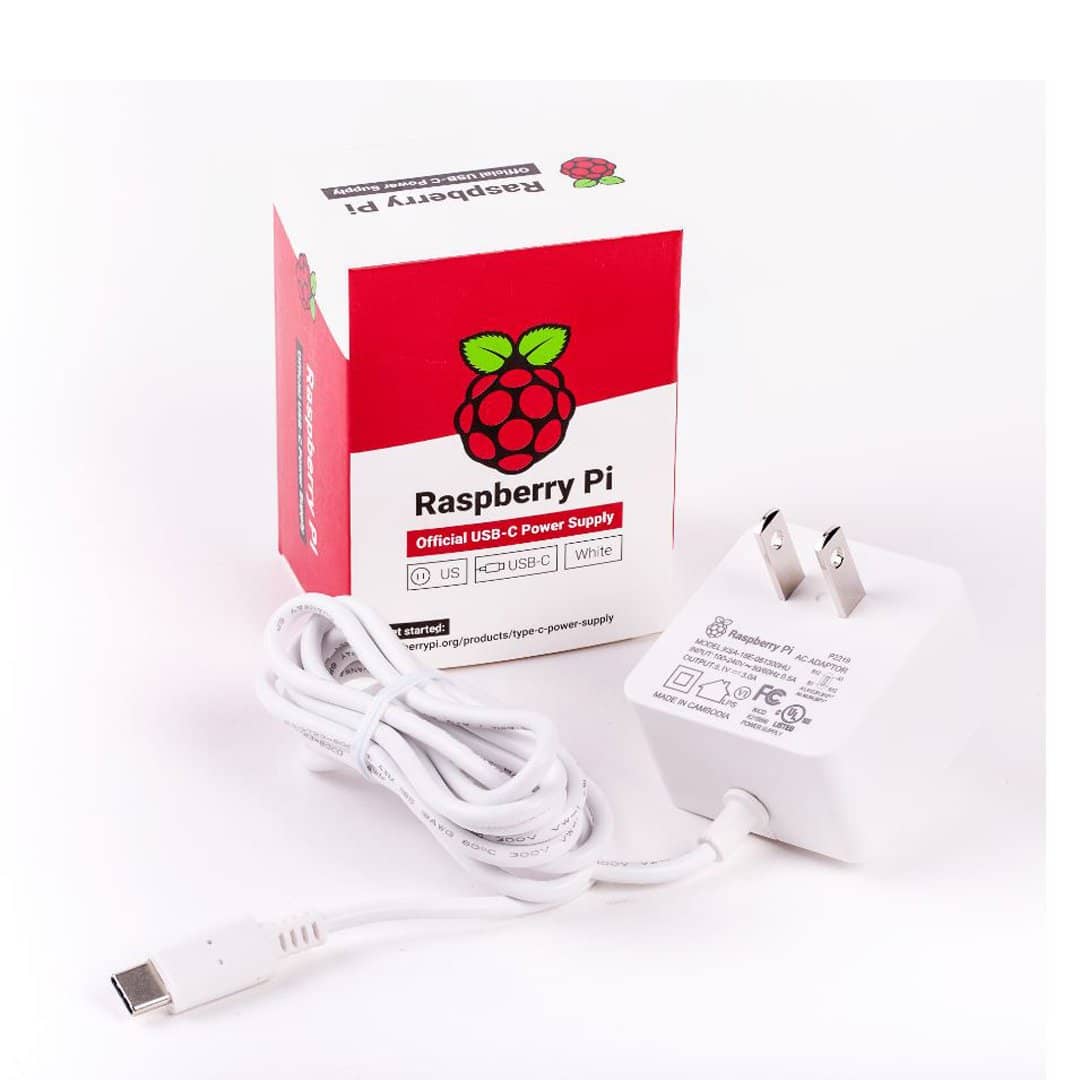

Official Raspberry Pi 4 Power Supply-(US),UL

$8.00
SKU: SC0218

This is the Official Raspberry Pi Foundation USB-C Power Supply for the Pi for use in the USA In White

It is compatible with the Raspberry Pi 4

Specifications:


Output:
Output voltage: +5.1V DC Minimum load current:
0A Nominal load current: 3.0A Maximum power:
15.3W Load regulation: ±5%
Line regulation: ±2%

Ripple & noise: 120mVp-p

Rise time: 100ms maximum to regulation limits for
DC outputs

Turn-on delay: 3000ms maximum at nominal input AC
voltage and full load

Protection: Short circuit protection
Overcurrent protection
Over temperature protection

Efficiency: 81% minimum (output current from 100%,
75%, 50%, 25%)

72% minimum at 10% load

Output cable: 1.5m 18AWG Output connector:
USB Type-C


Input:
Voltage range: 100-240Vac (rated)

96-264Vac (operating) Frequency: 50/60Hz ±3Hz
Current: 0.5A maximum

Power consumption (no load): 0.075W maximum

Inrush current: No damage shall occur and the input fuse
shall not blow
