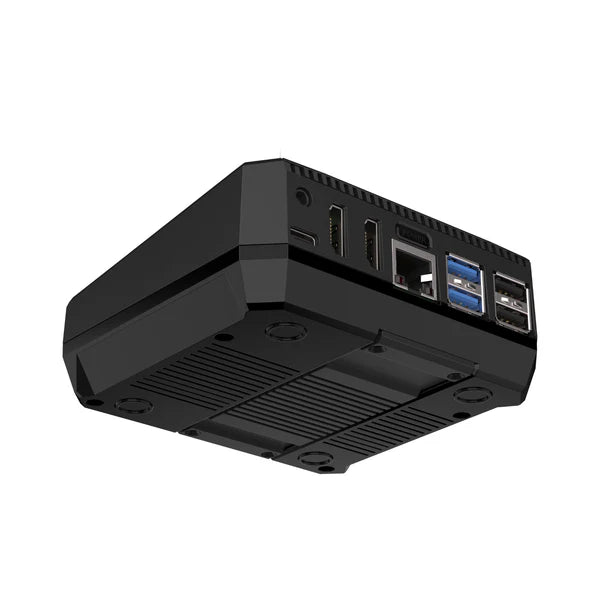

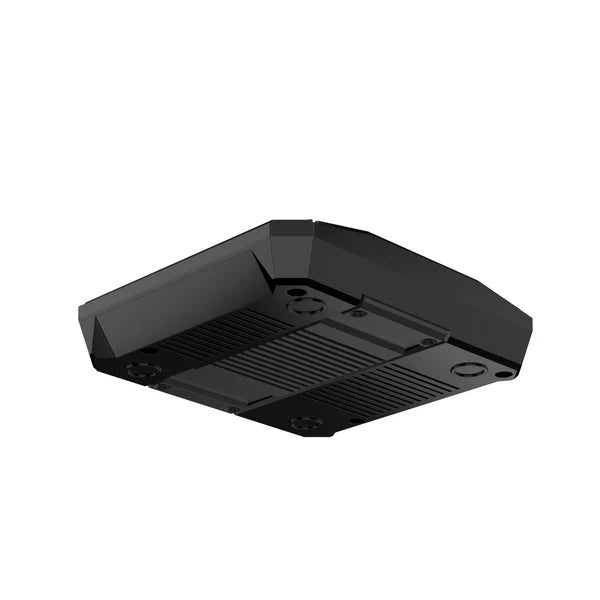

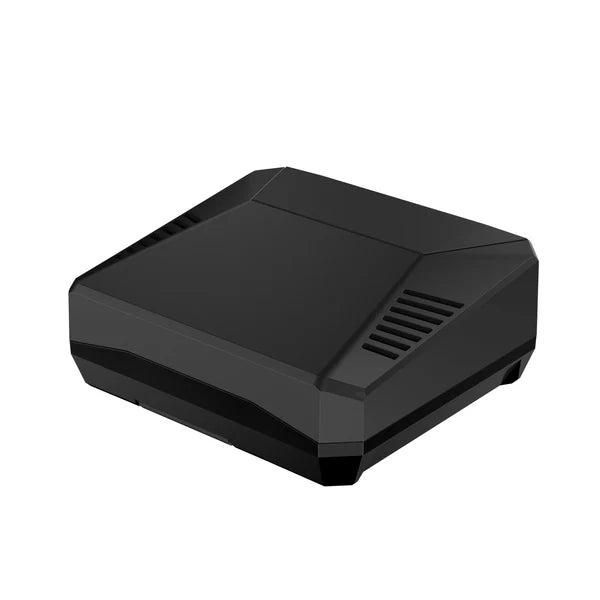

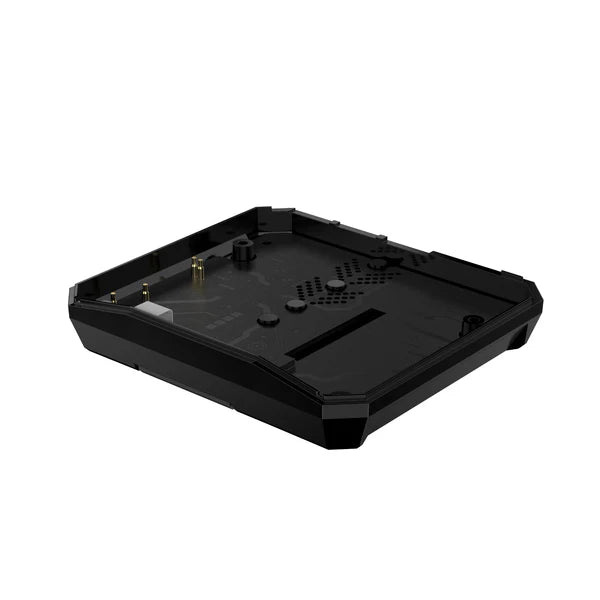

Argon ONE V3 M.2 NVME PCIE Case

• Argon ONE V3 M.2 NVME Case further expands your Raspberry Pi 5 potential with included M.2 NVME Expansion Board support.
• Boot your Raspberry Pi 5 from an NVME M.2 Drive.

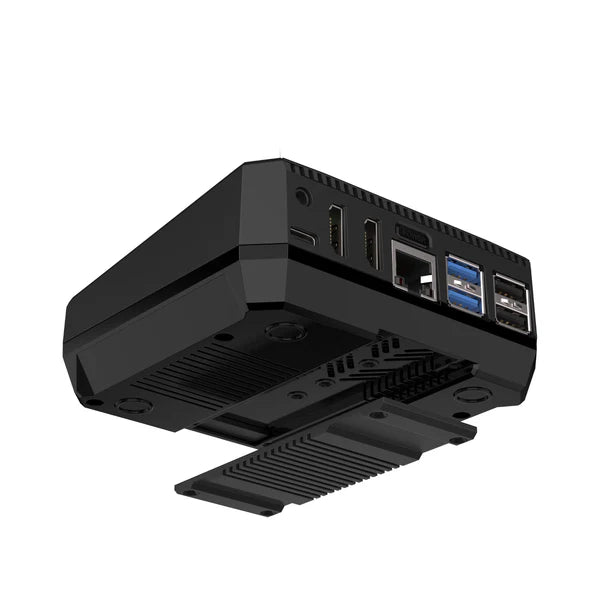

• Built-in HEATSINK for your M.2 NVME Drive
• Enjoy faster and higher storage access by connecting M.2 NVME drives via the PCIe slot on the Raspberry Pi 5
• Versatile M.2 NVME support compatible with any M.2 NVME with M-Key up to 2280 size
• Greater thermal management on M.2 NVME with included aluminum heatsink specific to M.2 drive to keep it cool, efficient, and working longer

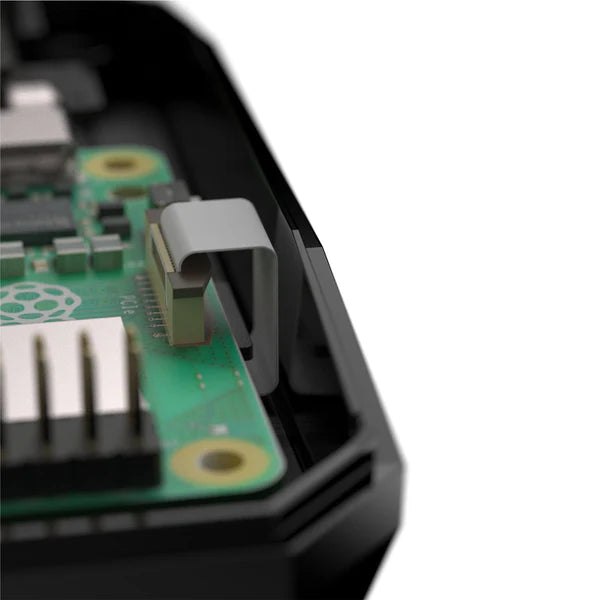

• Reliable and consistent data transfer with included FPC impedance-controlled cable

• Argon ONE V3 M.2 NVME Case is now made compatible with Raspberry Pi 5 with upgraded features and a new black finish.
• Better Active Cooling with the blower-type PWM programmable 30mm fan. Repositioned within the case to be more efficient and quiet.
• Improved Passive Cooling with the addition of a heatsink on the power management chip of the Raspberry Pi 5 aside from its CPU, which both get hot during heavy use.
• Better communication and power management with the Raspberry Pi 5 thru Raspberry Pi's RP2040 chip, which controls the features and functions of the Argon ONE V3, like fan speed, power management state (e.g. booting manually or automatically after a power outage by simply setting the jumper pins inside the case) allowing you to use the Argon ONE however you see fit.
• The power button located at the back can perform the following with the installation of an open sourced script that allows for safe shutdown, reboot, and forced shutdown
• Cable management remains exquisite with two full-sized HDMI ports neatly placed at the back allowing the Raspberry Pi 5 to use two monitors simultaneously

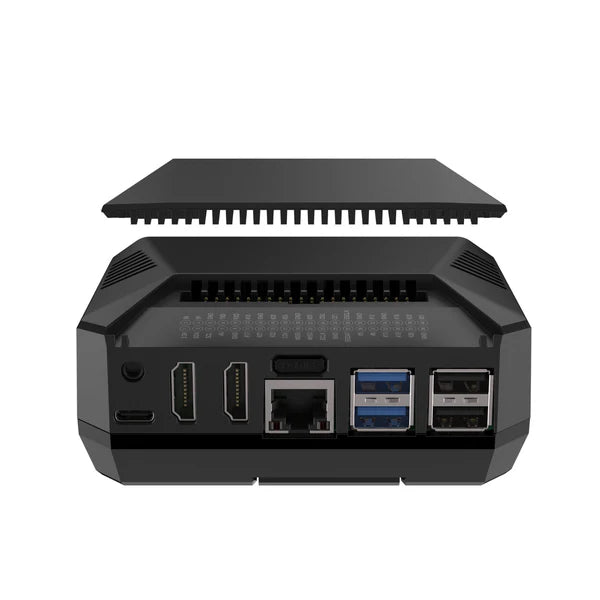

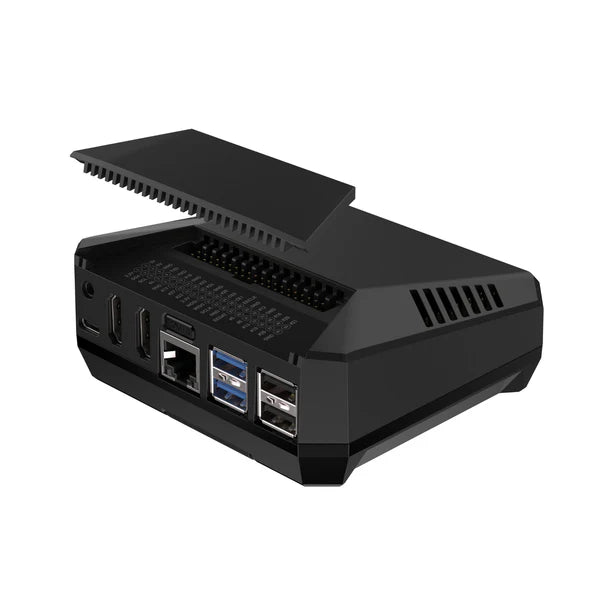

• Sleek magnetic cover to the access port of the custom color-coded GPIO Pins.
• Built-in IR receiver allows the Argon ONE V3 to be easily usable with the Argon IR remote meaning the case now makes for an even better media player!
• Enjoy using your audio accessories with the OPTIONAL 3.5mm audio jack via the internal DAC audio board upgrade (see separate listing)

M.2 NVMe Drive Compatibility:

Other drives may also be compatible but we have not tested yet.

Western Digital SN850

Western Digital SN740

Western Digital SN570

Western Digital SN530

Western Digital Black SN750 SE (Phison Controller)

Samsung 980 Pro

Samsung 980

Sabrent Rocket Nano

Sabrent Rocket 4.0

PNY CS1030

Origin Inception TLC830 Pro NVMe

Netac NV3000 NVMe SSD

Netac NV2000 NVMe SSD

Lexar NM710

Lexar NM620

Kioxia Exceria NVMe SSD

Kioxia Exceria G2 NVMe SSD

Kingston KC3000

Kingston SNV2S NV2 Gen4 PCIe NVMe M.2 2280 Solid-State Drive

Inland PCIe NVMe SSD

Crucial P3 Plus M.2

Crucial P3 M.2

Crucial P2 M.2

Axe Memory Generic Drive

AData XPG SX8200 Pro
