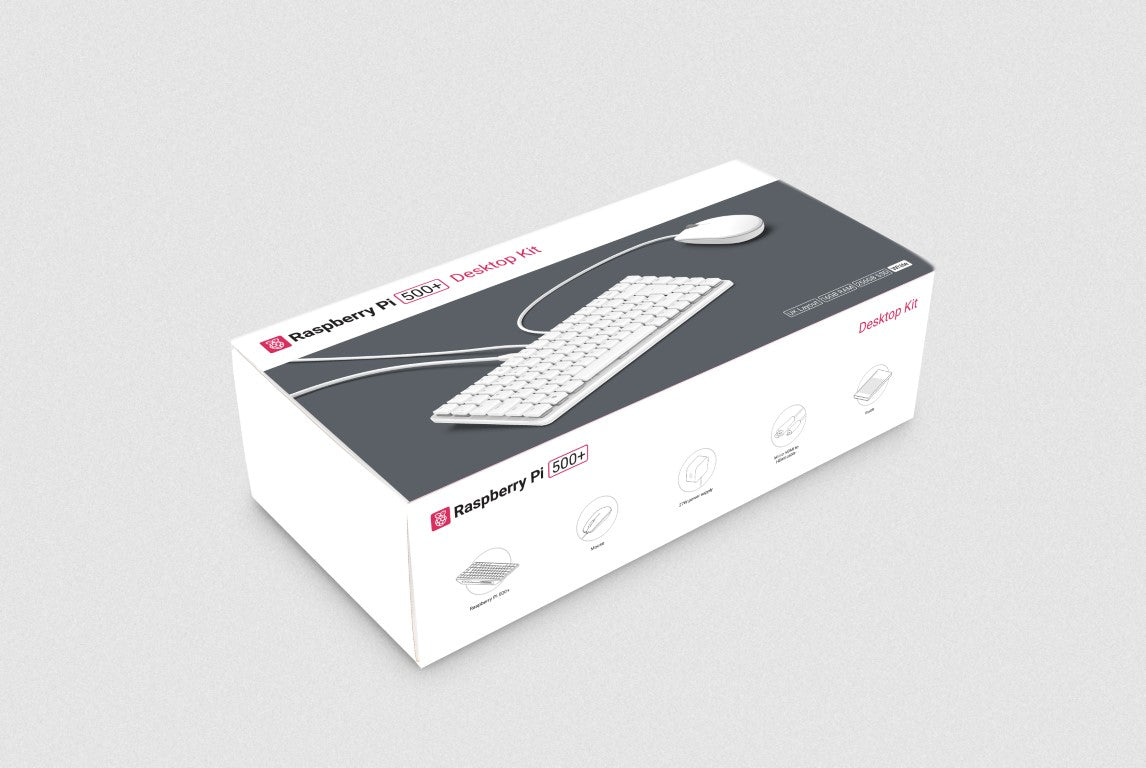

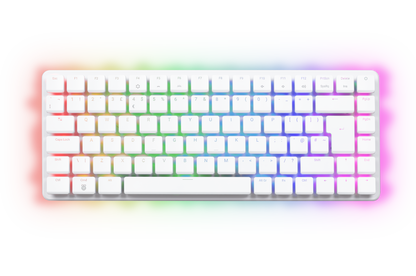

Raspberry Pi 500+ Personal Computer Kit

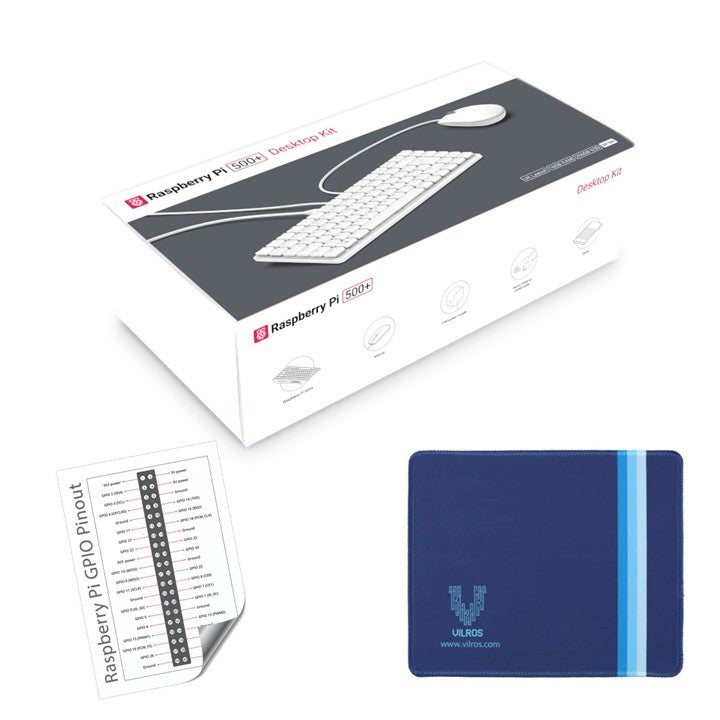

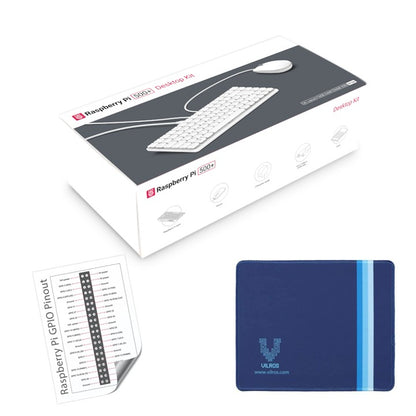

🎁 FREE Mousepad and GPIO Reference Sticker Offer!

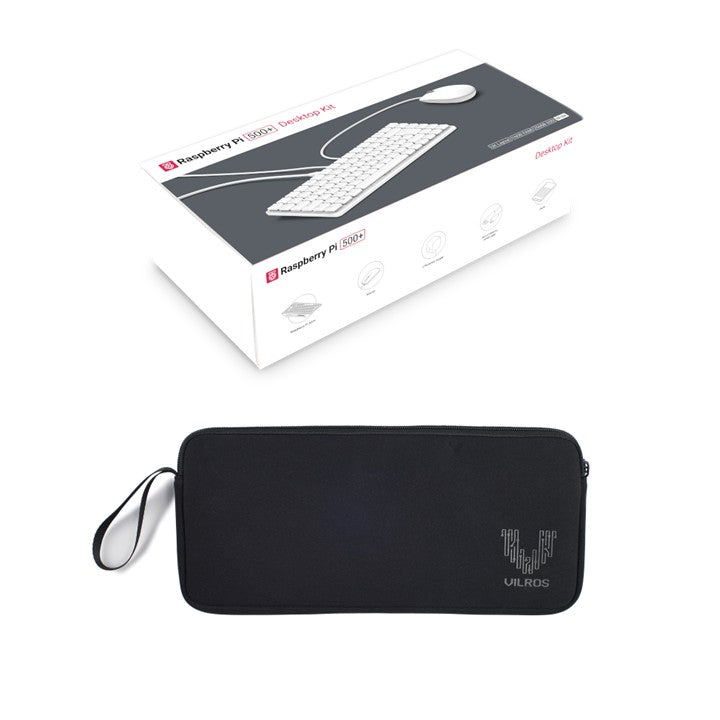

Add a Vilros Neoprene Sleeve and receive a FREE Vilros Mousepad and GPIO Reference Sticker
Specifications
- 2.4GHz quad-core 64-bit Arm Cortex-A76 CPU, with cryptography extensions, 512KB per-core L2 caches and a 2MB shared L3 cache
- 16GB LPDDR4X-4267 SDRAM
- Internal 256GB Raspberry Pi SSD
- Support for M.2 NVMe SSDs up to 2280 form factor

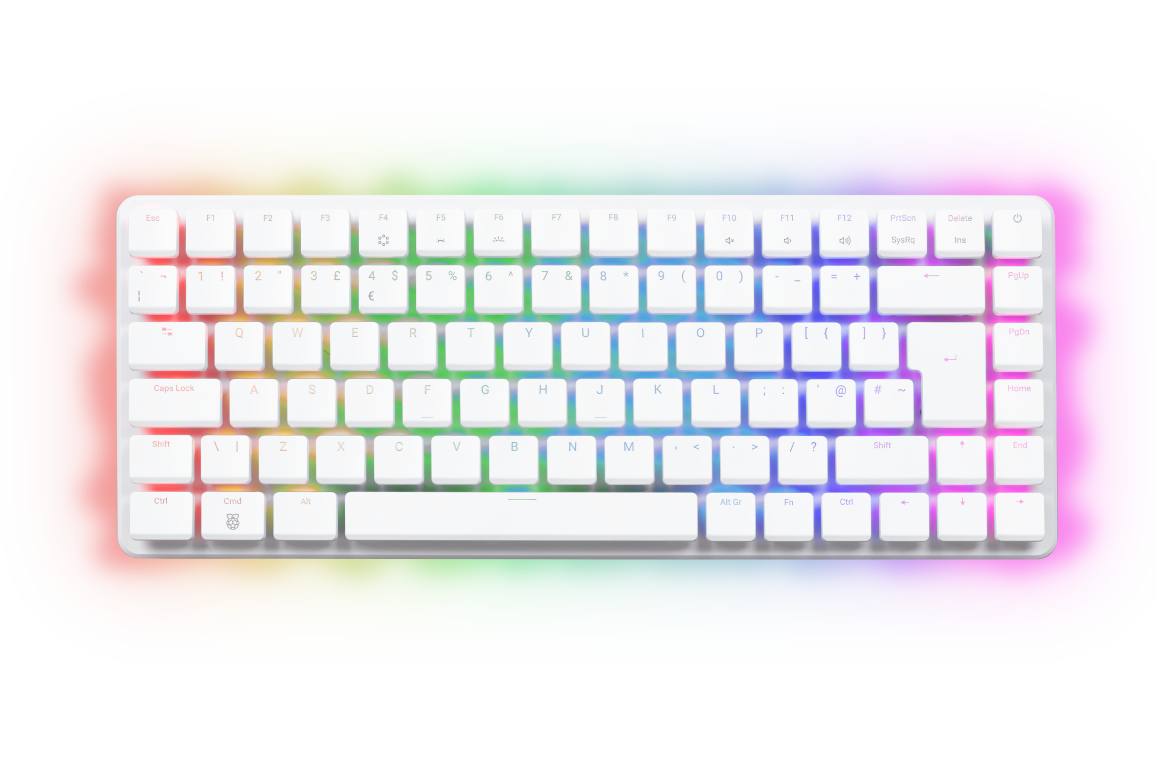

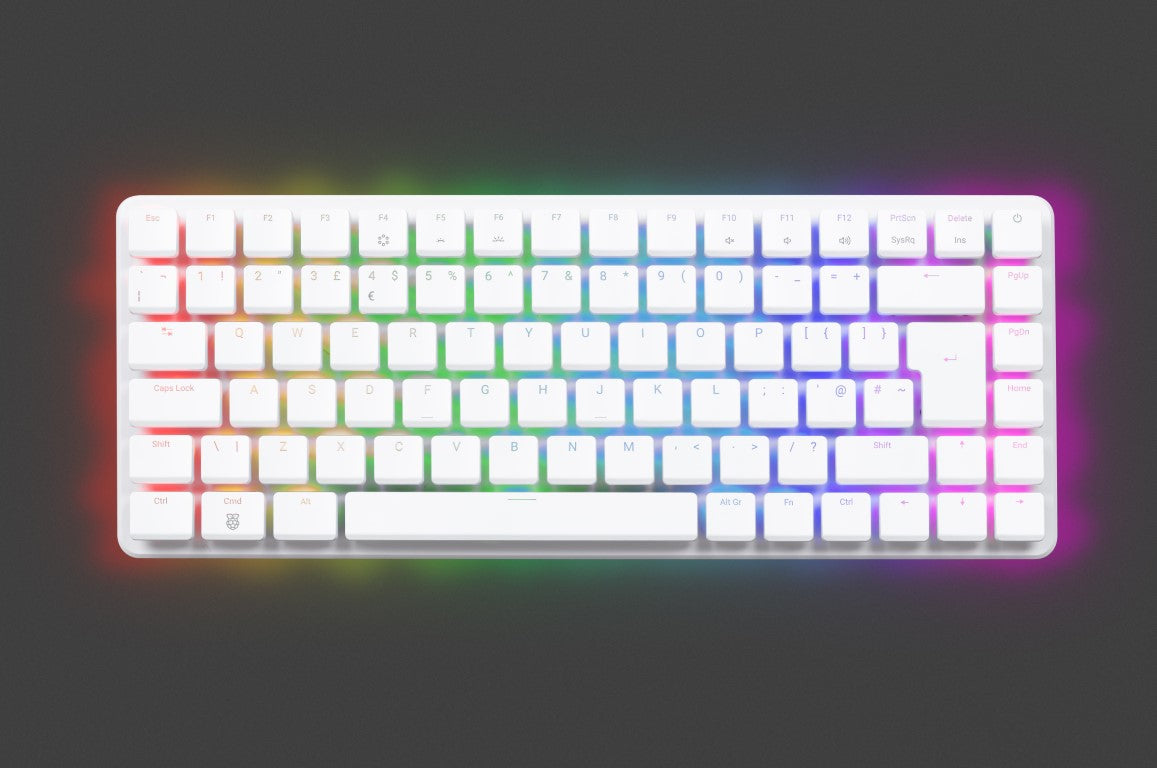

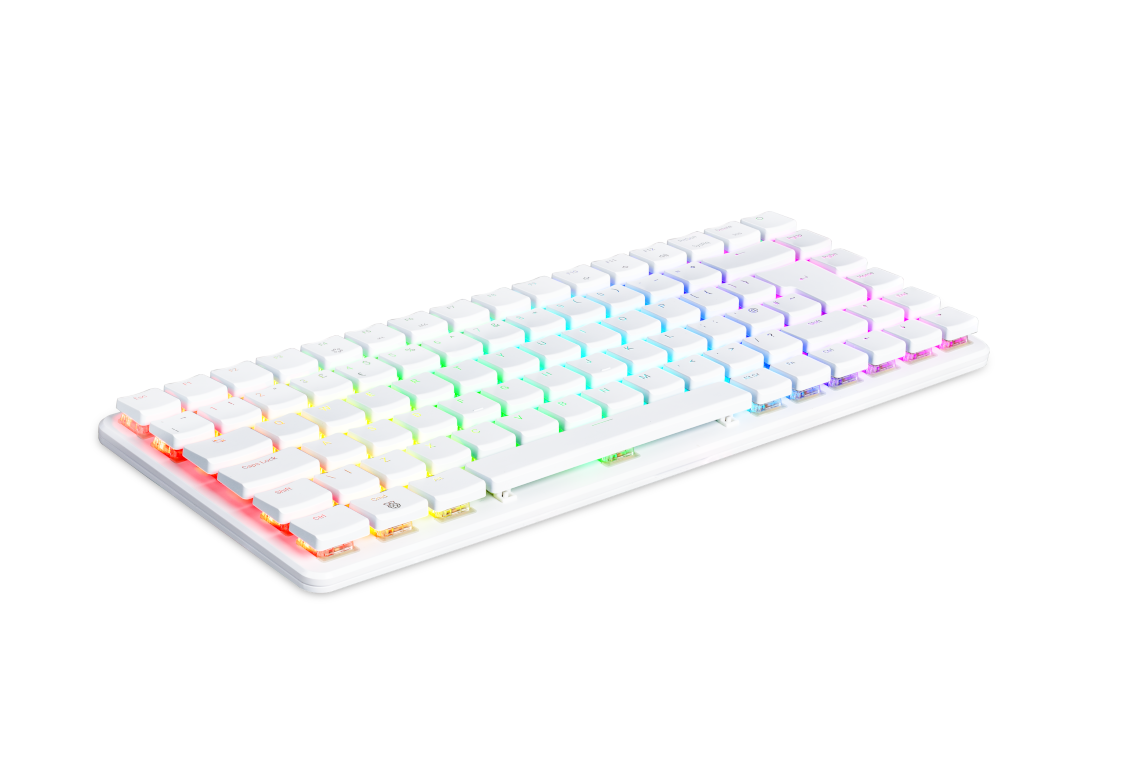

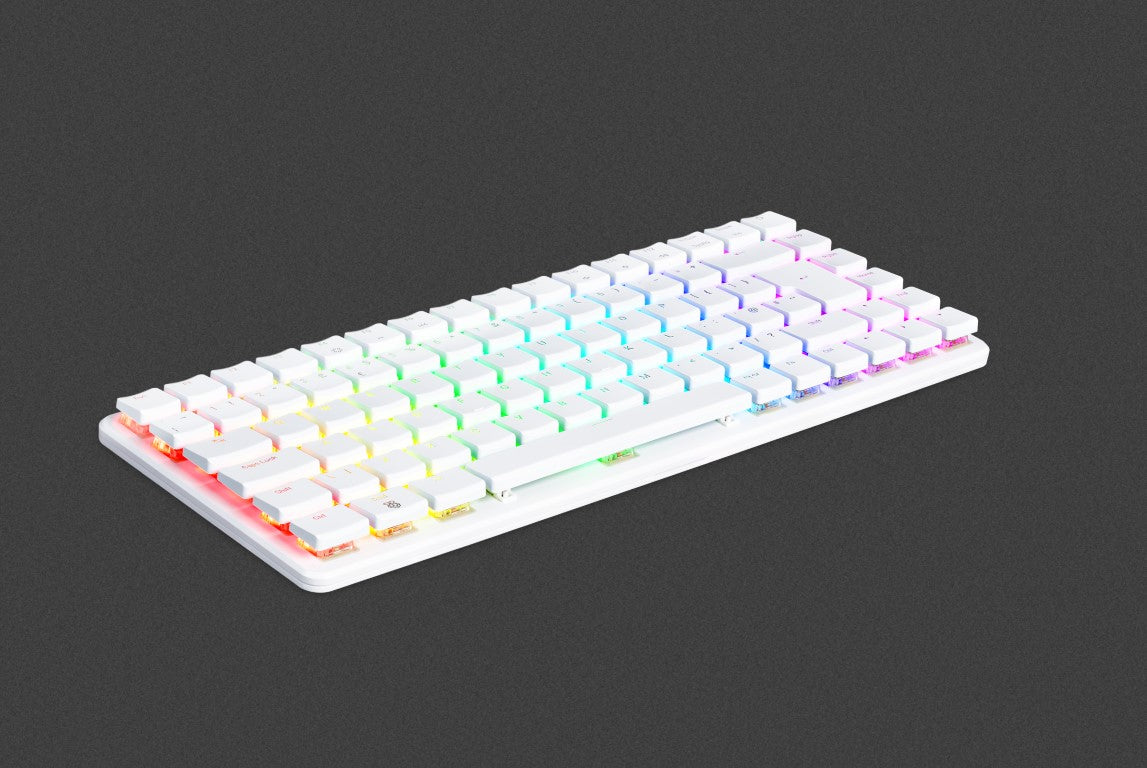

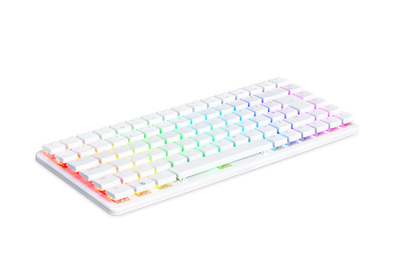

- 84-, 85- or 88-key mechanical keyboard (depending on regional variant)
- Gateron KS-33 Blue low-profile switches
- Dual-band (2.4GHz and 5.0GHz) IEEE 802.11b/g/n/ac Wi-Fi®
- Bluetooth 5.0, BLE
- Gigabit Ethernet

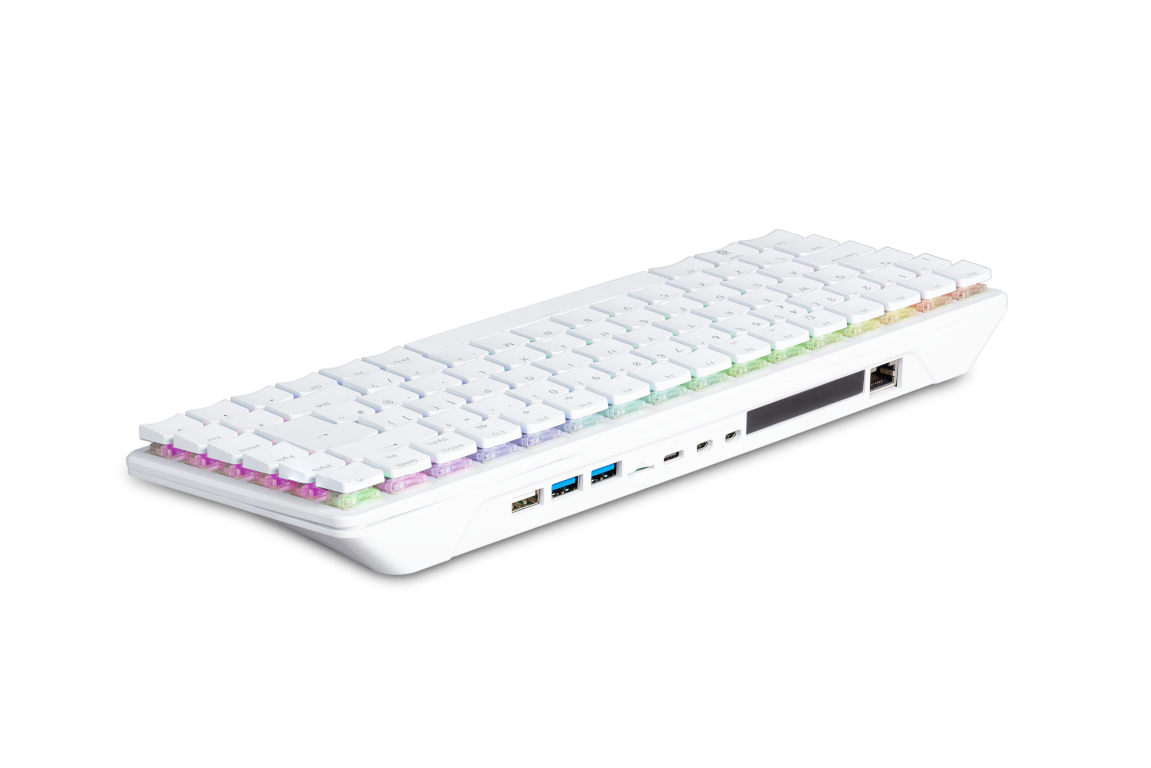

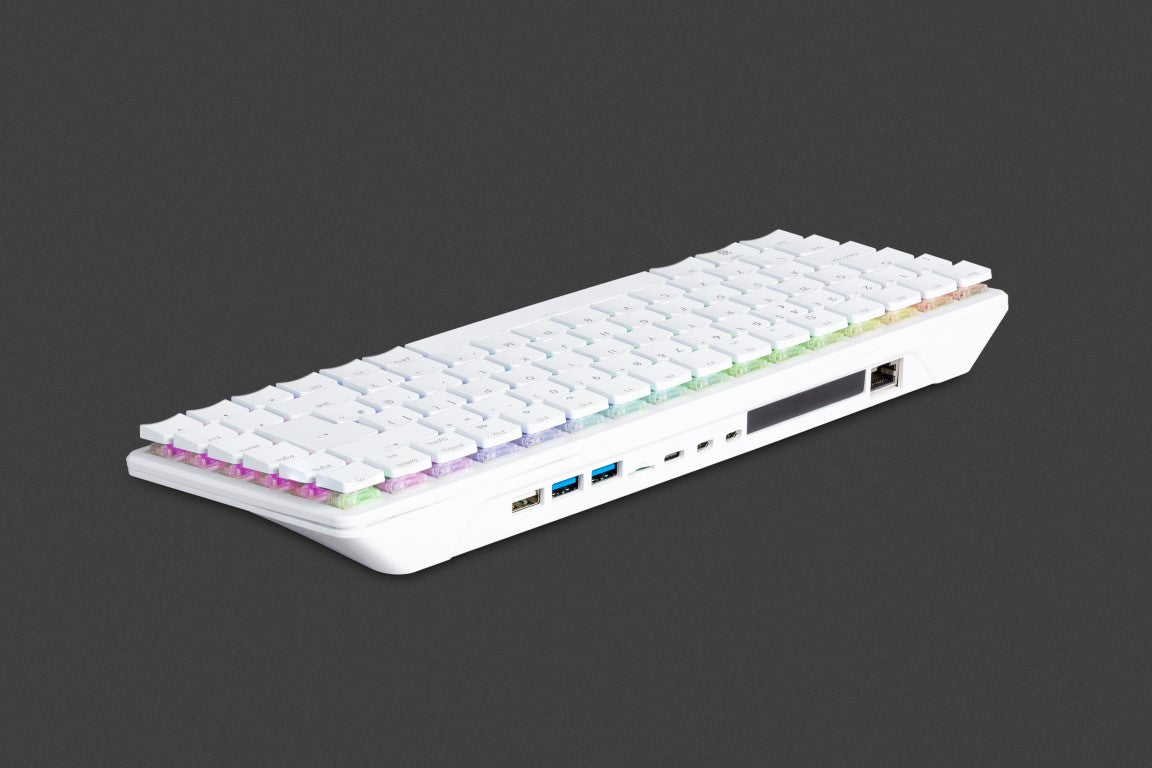

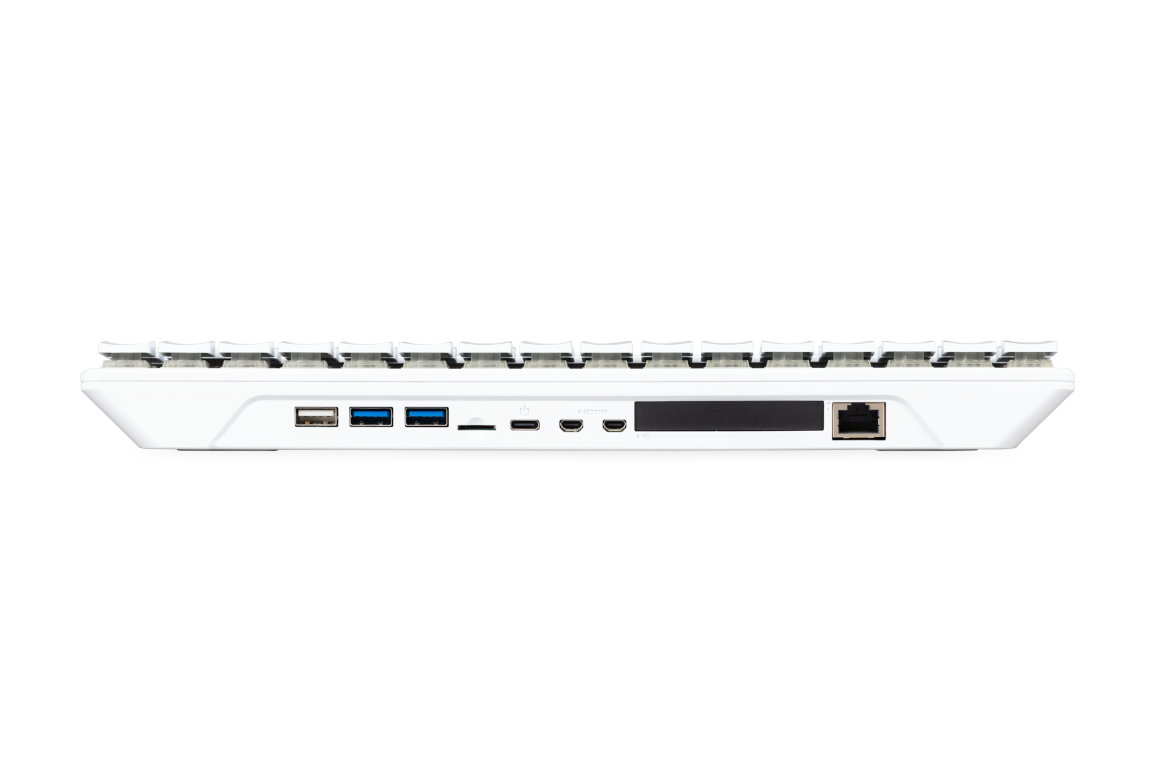

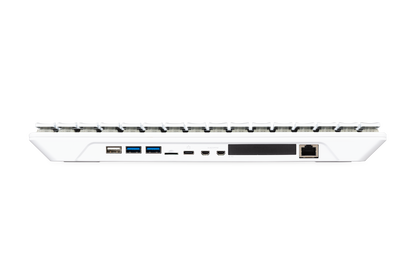

- 2 × USB 3.0 port and 1 × USB 2.0 port
- Horizontal 40-pin GPIO header
- 2 × micro HDMI® port (supports up to 4Kp60)
- H.265 (4Kp60 decode)
- OpenGL ES 3.1 graphics, Vulkan 1.3
- SD card support: microSD card slot for operating system and data storage
- Power: 5V DC via USB-C connector
Documents
Compliance
Raspberry Pi 500+ has undergone extensive compliance testing and meets a number of regional and international standards.
View and download relevant certificates and conformity documents.
If you require any further information regarding compliance, please contact raspberry pi at compliance@raspberrypi.com.
Obsolescence
Raspberry Pi 500+ will remain in production until at least January 2035
Promotion Disclaimer
- Mousepad and Sticker included when a Vilros neoprene sleeve case is purchased as an add via this product page ONLY.
- Offer valid while supplies last.
SKU:
RP500+K+VILP117+VILP351
