Arduino Uno Rev 3




Arduino Uno Rev 3
$32.24
Free shipping
30-day returns
·Authorized Raspberry Pi reseller
-
-
-
Tap once to add to cart, then pick your wallet.
In Stock • Free Shipping
Order now to receive it in 4 business days
SKU: ARD_A000066

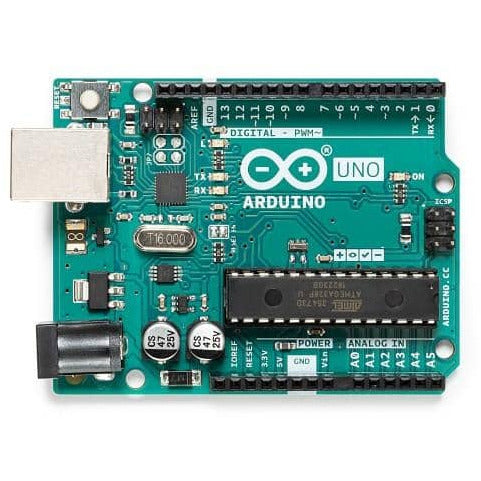

The Arduino Uno is a microcontroller board based on the ATmega328P (datasheet).
It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator (CSTCE16M0V53-R0), a USB connection, a power jack, an ICSP header and a reset button.
It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.. You can tinker with your Uno without worrying too much about doing something wrong, worst case scenario you can replace the chip for a few dollars and start over again.
Specifications
| Microcontroller | ATmega328P |
| Operating Voltage | 5V |
| Input Voltage (recommended) | 7-12V |
| Input Voltage (limit) | 6-20V |
| Digital I/O Pins | 14 (of which 6 provide PWM output) |
| PWM Digital I/O Pins | 6 |
| Analog Input Pins | 6 |
| DC Current per I/O Pin | 20 mA |
| DC Current for 3.3V Pin | 50 mA |
| Flash Memory | 32 KB (ATmega328P) of which 0.5 KB used by bootloader |
| SRAM | 2 KB (ATmega328P) |
| EEPROM | 1 KB (ATmega328P) |
| Clock Speed | 16 MHz |
| LED_BUILTIN | 13 |
| Length | 68.6 mm |
| Width | 53.4 mm |
| Weight | 25 g |
SKU:
ARD_A000066
EAN:
7630049200050
Warranty & Support
Products manufactured by Vilros are covered by a one-year limited warranty against manufacturing defects from the date of purchase.
Raspberry Pi products are covered by a one-year manufacturer's warranty (link).
Arduino products are covered by a one-year manufacturer's warranty (link).
What’s Covered
- Manufacturing defects in included hardware components
- Power supply and accessory functionality issues
- Missing or damaged items upon delivery
- Technical support for setup and starter guidance
Customer Support
If you believe your product is defective, please submit a warranty claim through the RMA process: https://vilros.com/a/service/returns
After reviewing the claim, Vilros may:
- Provide a replacement product, or
- Issue a refund where appropriate
Beginner-Friendly Confidence
Whether you're learning programming, building electronics projects, creating retro gaming systems, or experimenting with home automation, our support team is here to answer your questions and support your projects!
Description
The Arduino Uno is a microcontroller board based on the ATmega328P (datasheet).
It has 14 digital input/output pins (of which 6 can be used as PWM outputs), 6 analog inputs, a 16 MHz ceramic resonator (CSTCE16M0V53-R0), a USB connection, a power jack, an ICSP header and a reset button.
It contains everything needed to support the microcontroller; simply connect it to a computer with a USB cable or power it with a AC-to-DC adapter or battery to get started.. You can tinker with your Uno without worrying too much about doing something wrong, worst case scenario you can replace the chip for a few dollars and start over again.
Specifications
| Microcontroller | ATmega328P |
| Operating Voltage | 5V |
| Input Voltage (recommended) | 7-12V |
| Input Voltage (limit) | 6-20V |
| Digital I/O Pins | 14 (of which 6 provide PWM output) |
| PWM Digital I/O Pins | 6 |
| Analog Input Pins | 6 |
| DC Current per I/O Pin | 20 mA |
| DC Current for 3.3V Pin | 50 mA |
| Flash Memory | 32 KB (ATmega328P) of which 0.5 KB used by bootloader |
| SRAM | 2 KB (ATmega328P) |
| EEPROM | 1 KB (ATmega328P) |
| Clock Speed | 16 MHz |
| LED_BUILTIN | 13 |
| Length | 68.6 mm |
| Width | 53.4 mm |
| Weight | 25 g |
SKU:
ARD_A000066
EAN:
7630049200050
Warranty
Warranty & Support
Products manufactured by Vilros are covered by a one-year limited warranty against manufacturing defects from the date of purchase.
Raspberry Pi products are covered by a one-year manufacturer's warranty (link).
Arduino products are covered by a one-year manufacturer's warranty (link).
What’s Covered
- Manufacturing defects in included hardware components
- Power supply and accessory functionality issues
- Missing or damaged items upon delivery
- Technical support for setup and starter guidance
Customer Support
If you believe your product is defective, please submit a warranty claim through the RMA process: https://vilros.com/a/service/returns
After reviewing the claim, Vilros may:
- Provide a replacement product, or
- Issue a refund where appropriate
Beginner-Friendly Confidence
Whether you're learning programming, building electronics projects, creating retro gaming systems, or experimenting with home automation, our support team is here to answer your questions and support your projects!
