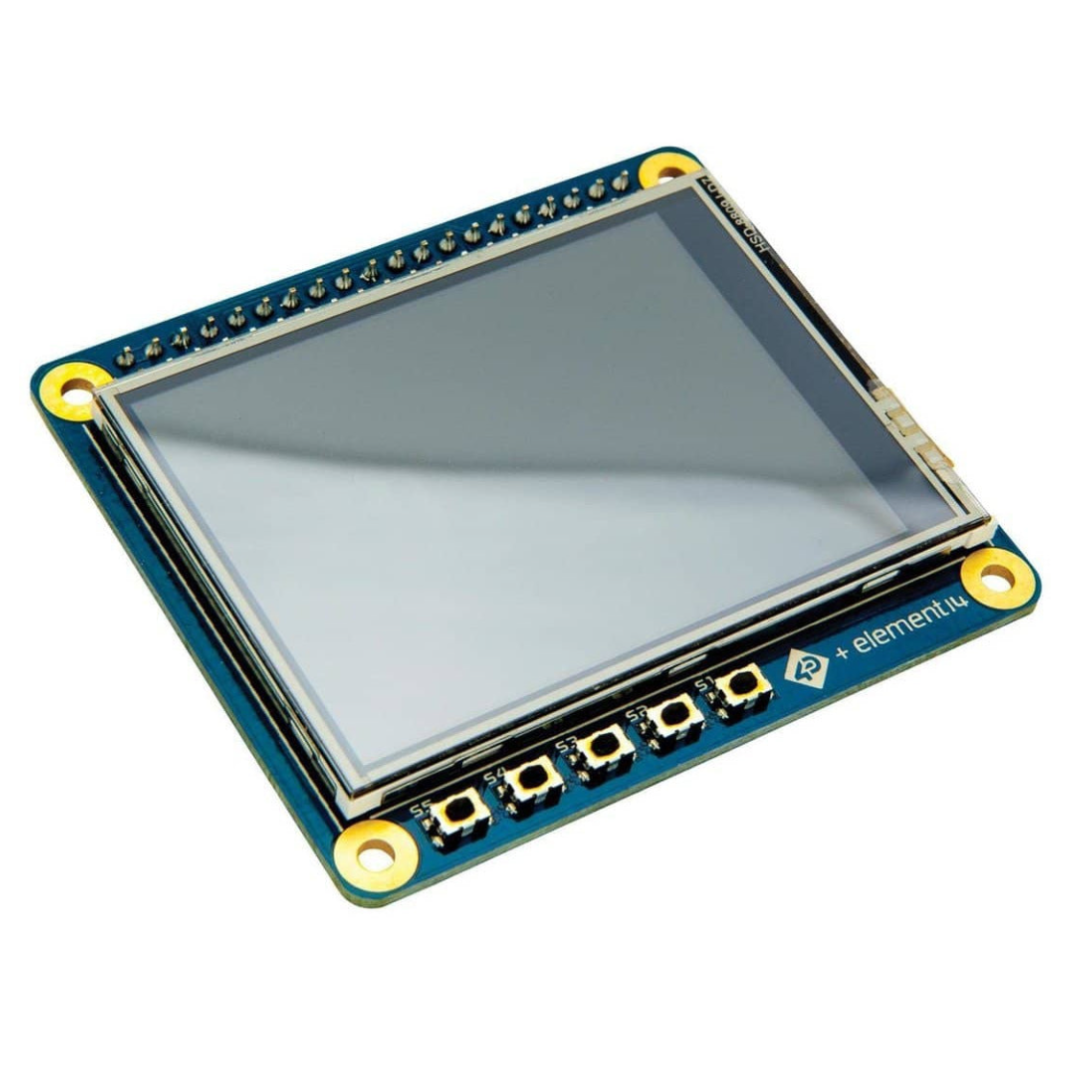

2.4 inch Primary Display HAT for Raspberry Pi

2.4 inch Primary Display HAT for Raspberry Pi
$34.99
Free shipping
30-day returns
·Authorized Raspberry Pi reseller
-
-
-
-
Out of stock – check back soon
Order now to receive it in 4 business days
SKU: NEW_49Y1710
-
- Expect 3 - 5 Day Processing Time
2.4-inch Primary Display HAT for Raspberry Pi
The 320 x 240 2.4 inch Primary Display HAT for Raspberry Pi, plugs directly on top of a Raspberry Pi and displays the primary output which is normally sent to the HDMI or Composite output. It features an integrated Resistive Touch panel, enabling the 4DPi-24-HAT to function with the Raspberry Pi without the need for a mouse. Communication between the 4DPi-24-HAT and the Raspberry Pi is interfaced with a high-speed 48MHz SPI connection, which utilizes an onboard processor for direct command interpretation and SPI communication compression and features a customized DMA-enabled kernel. The 2.4-inch Primary Display HAT for Raspberry Pi is designed to work with the Raspbian operating system running on the Raspberry Pi, as that is the official Raspberry Pi operating system. The 2.4-inch Primary Display HAT for Raspberry Pi 4DPi-24-HAT is powered directly off the Raspberry Pi's 40-way Header and the 2.4" touch screen allows effortless interaction with the Raspbian operating system.
- Universal 2.4-inch Primary Display HAT for Raspberry Pi
- Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2
- 320 x 240 QVGA Resolution, RGB 65K true-to-life colors
- TFT screen with integrated 4-wire resistive touch panel
- Display full GUI output/primary output, just like a monitor connected to the Raspberry Pi
- Powered directly off the Raspberry Pi, no external power supply is required
- 25FPS Typical frame rate, higher if the image is able to be compressed by Kernel
- On/Off or PWM controlled backlight, selectable by an onboard jumper
- Onboard identification EEPROM
SKU:
NEW_49Y1710
Barcode:
Description
-
- Expect 3 - 5 Day Processing Time
2.4-inch Primary Display HAT for Raspberry Pi
The 320 x 240 2.4 inch Primary Display HAT for Raspberry Pi, plugs directly on top of a Raspberry Pi and displays the primary output which is normally sent to the HDMI or Composite output. It features an integrated Resistive Touch panel, enabling the 4DPi-24-HAT to function with the Raspberry Pi without the need for a mouse. Communication between the 4DPi-24-HAT and the Raspberry Pi is interfaced with a high-speed 48MHz SPI connection, which utilizes an onboard processor for direct command interpretation and SPI communication compression and features a customized DMA-enabled kernel. The 2.4-inch Primary Display HAT for Raspberry Pi is designed to work with the Raspbian operating system running on the Raspberry Pi, as that is the official Raspberry Pi operating system. The 2.4-inch Primary Display HAT for Raspberry Pi 4DPi-24-HAT is powered directly off the Raspberry Pi's 40-way Header and the 2.4" touch screen allows effortless interaction with the Raspbian operating system.
- Universal 2.4-inch Primary Display HAT for Raspberry Pi
- Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2
- 320 x 240 QVGA Resolution, RGB 65K true-to-life colors
- TFT screen with integrated 4-wire resistive touch panel
- Display full GUI output/primary output, just like a monitor connected to the Raspberry Pi
- Powered directly off the Raspberry Pi, no external power supply is required
- 25FPS Typical frame rate, higher if the image is able to be compressed by Kernel
- On/Off or PWM controlled backlight, selectable by an onboard jumper
- Onboard identification EEPROM
SKU:
NEW_49Y1710
Barcode:
