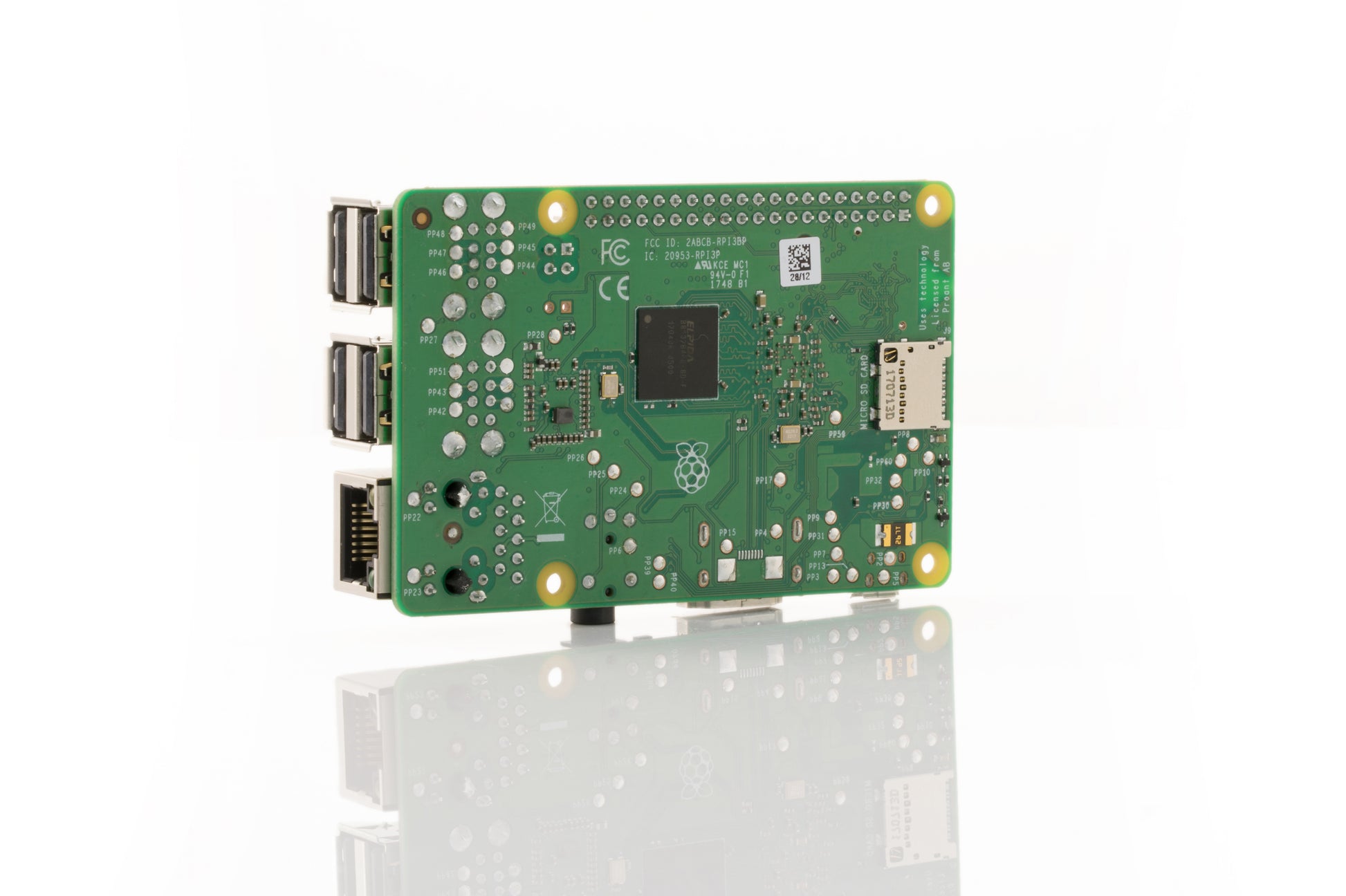

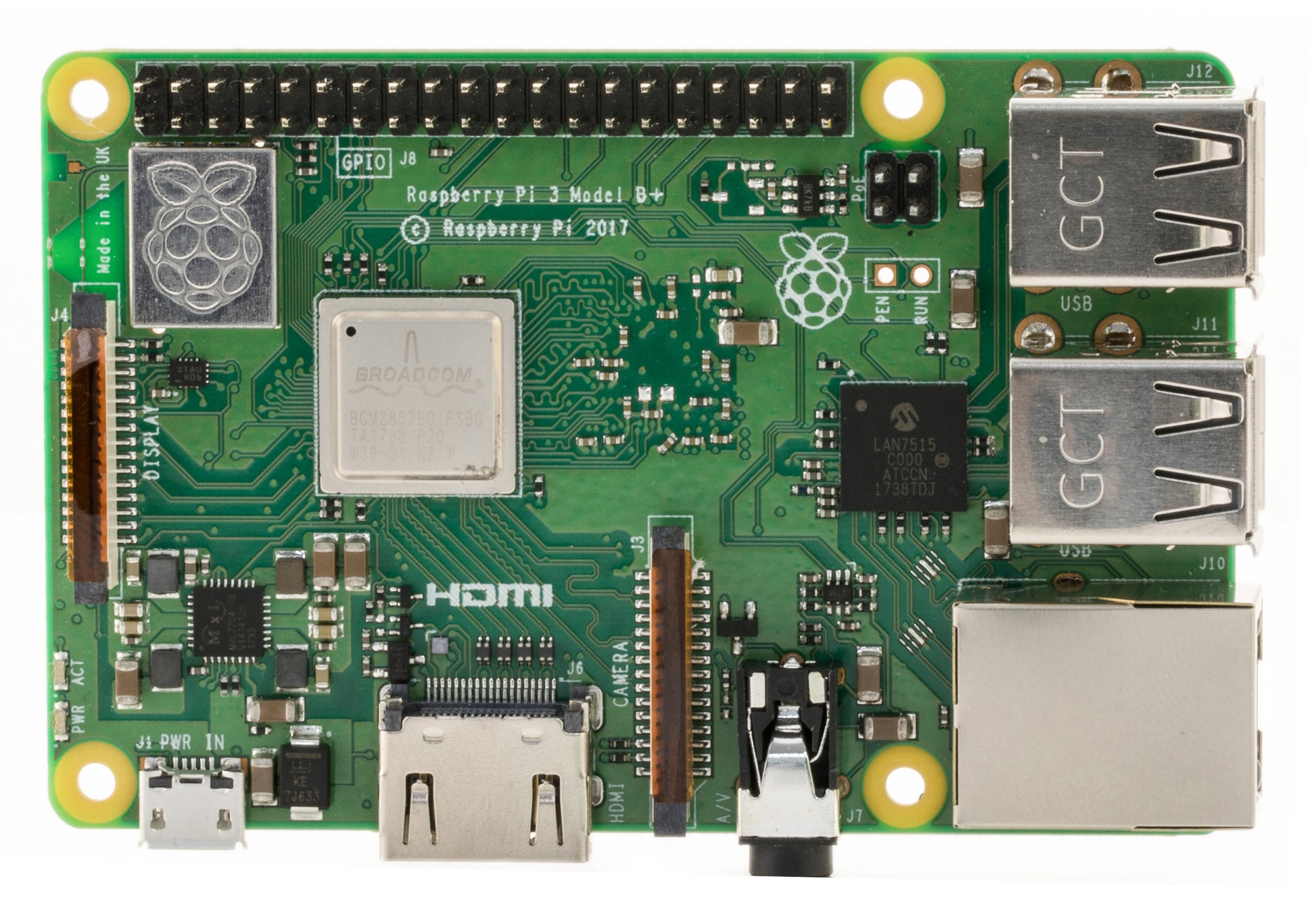

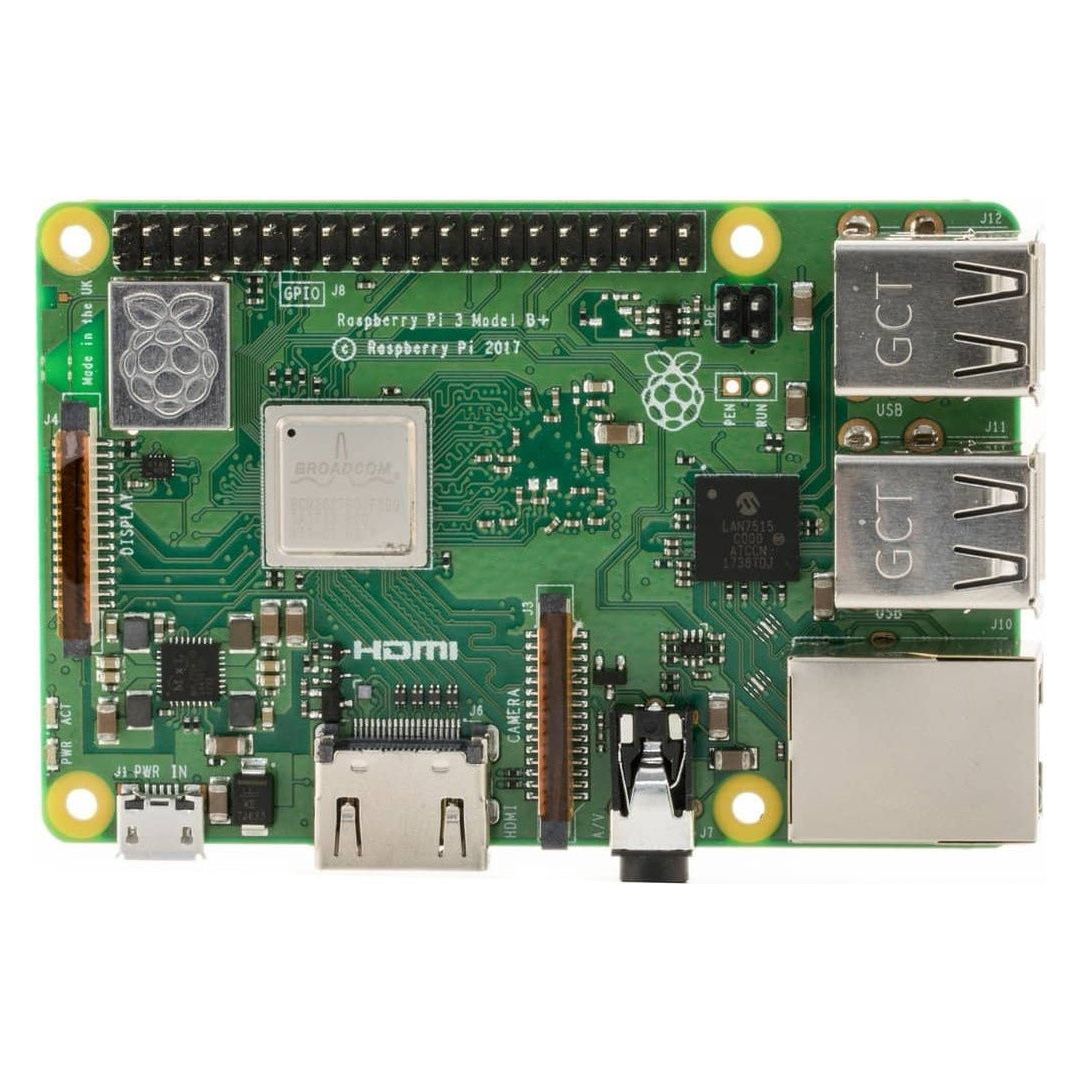

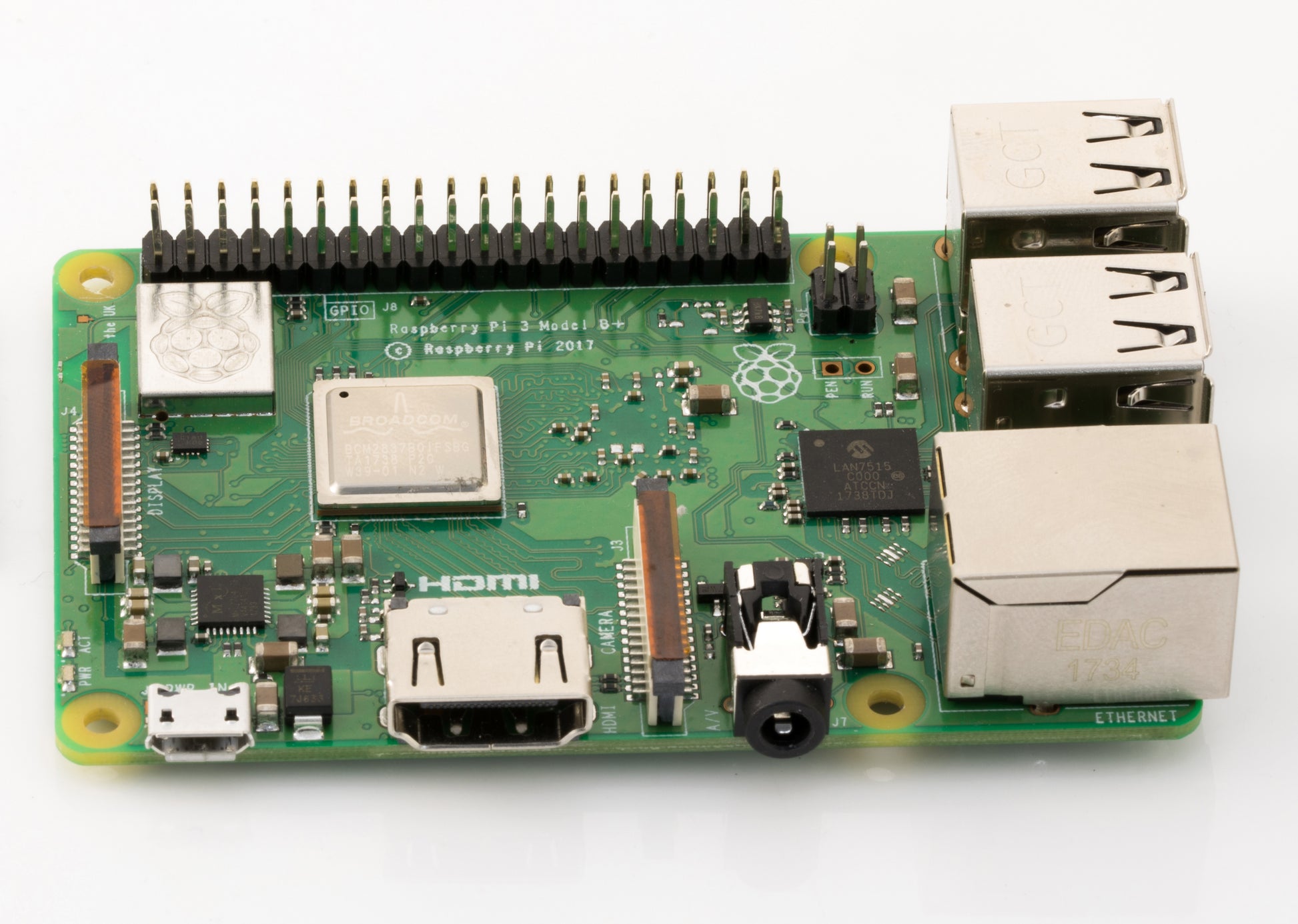

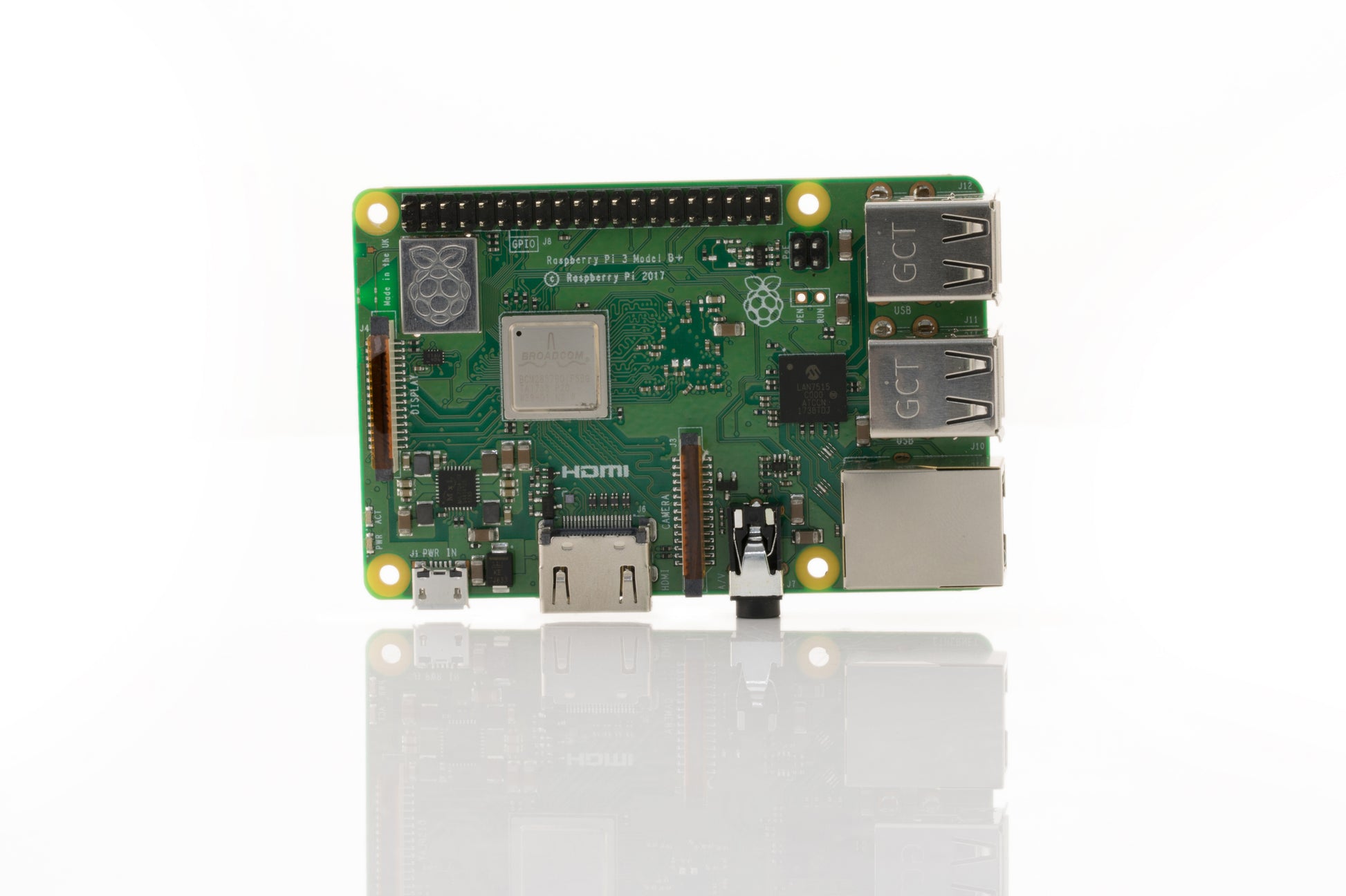

Raspberry Pi 3 Model B+ (Plus)

A classic Raspberry Pi model that offers enhanced performance and faster networking.

The Raspberry Pi 3 Model B+ is the final revision in the Raspberry Pi 3 range, offering better speed, improved wireless performance, and enhanced power management. It features a 1.4GHz quad-core processor, dual-band 2.4GHz and 5GHz Wi-Fi, Bluetooth 4.2, and faster Ethernet (with PoE support via a HAT).

With the same 1GB RAM and standard 40-pin GPIO layout, it’s fully compatible with existing Pi 3 accessories—making it a great choice for media centers, connected devices, or classroom projects that need reliable wireless and networking performance.

Operating Requirements

• Power Supply: A 5V/2.5A DC Micro-USB power supply is needed to provide power to the board.
• Micro SD card with Raspberry Pi OS: Vilros offers SD cards pre-flashed with RPi OS.
• Keyboard and Mouse: Connected through the Raspberry Pi’s USB ports.
• HDMI Cable: Used to connect a monitor to your Raspberry Pi 5.

Specifications

• Processor: Broadcom BCM2837B0, Cortex-A53 (ARMv8) 64-bit SoC @ 1.4GHz
• RAM: 1GB LPDDR2 SDRAM
• Connectivity: 2.4GHz and 5GHz IEEE 802.11.b/g/n/ac wireless LAN, Bluetooth 4.2, BLE
• Ethernet: Gigabit Ethernet over USB 2.0 (maximum throughput 300 Mbps)
• GPIO: Extended 40-pin GPIO header
• Video Output: Full-size HDMI port with VideoCore IV 3D graphics core
• USB: 4 USB 2.0 ports
• Audio: 4-pole stereo output and composite video port with 3.5mm audio jack and composite video
• Power: 5V/2.5A DC power input with Power-Over-Ethernet (PoE) support (requires separate HAT)
• Micro SD card slot (now push-pull rather than push-push),
• CSI camera port for connecting a Raspberry Pi camera
• DSI display port for connecting a Raspberry Pi touchscreen display

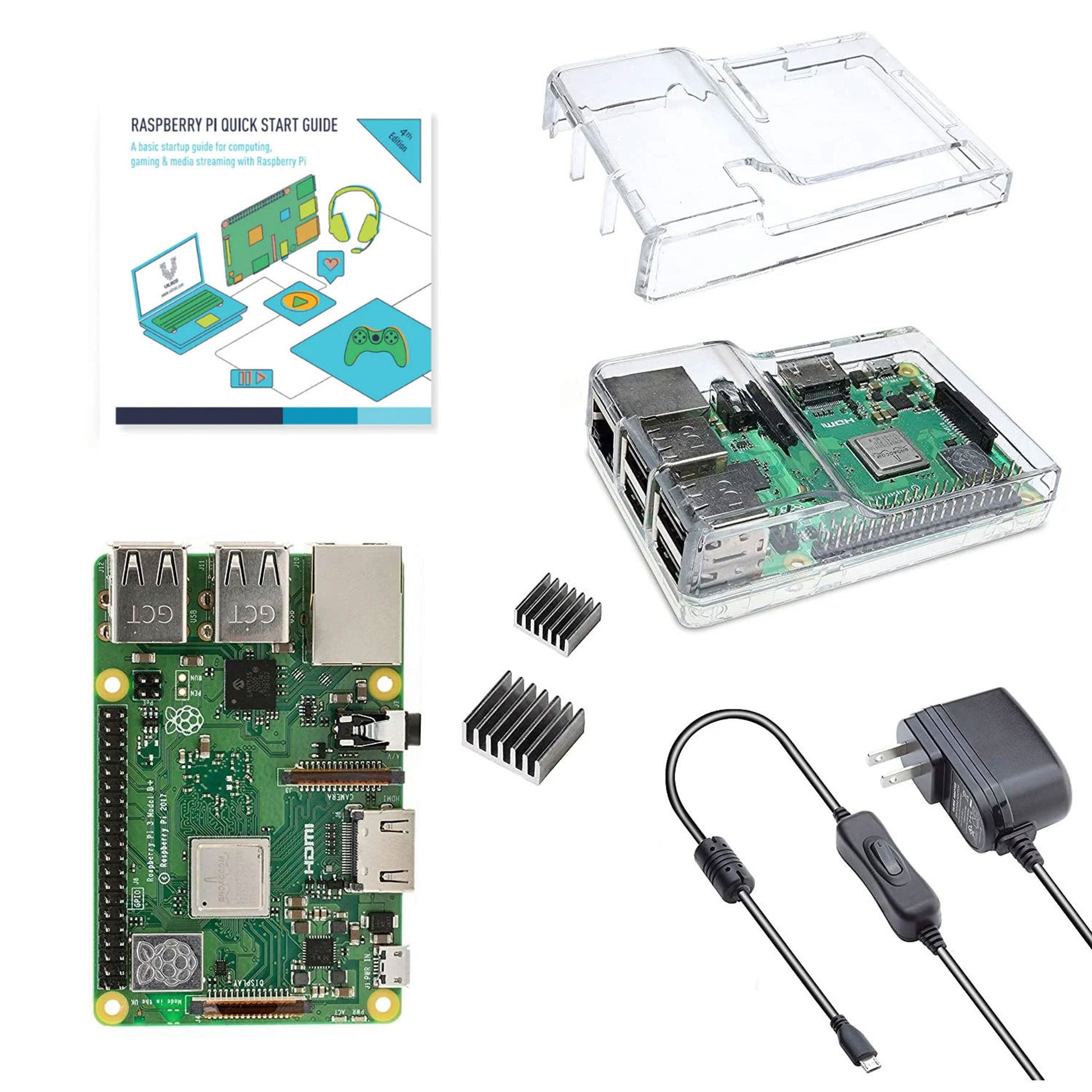

The Basic Kit Includes:

• Raspberry Pi 3 Model B Plus
• Vilros Pi 3 Compatible Clear Case with Dual Multi-Purpose Covers
• Vilros Pi 3 Compatible 2.5A Micro USB Power Supply with Inline On/Off Switch
• Vilros Raspberry Pi Quickstart Guide
• Set of 2 Heatsink

The Complete Kit Includes:

• Raspberry Pi 3 Model B Plus
• Vilros Pi 3 Compatible Clear Case with Dual Multi-Purpose Covers
• Vilros Pi 3 Compatible 2.5A Micro USB Power Supply with Inline On/Off Switch
• 16GB Micro SD card Preloaded with RP OS
• Vilros HDMI (female) Micro HDMI (male) Cable-5ft
• Vilros Raspberry Pi Quickstart Guide
• Set of 2 Heatsink
